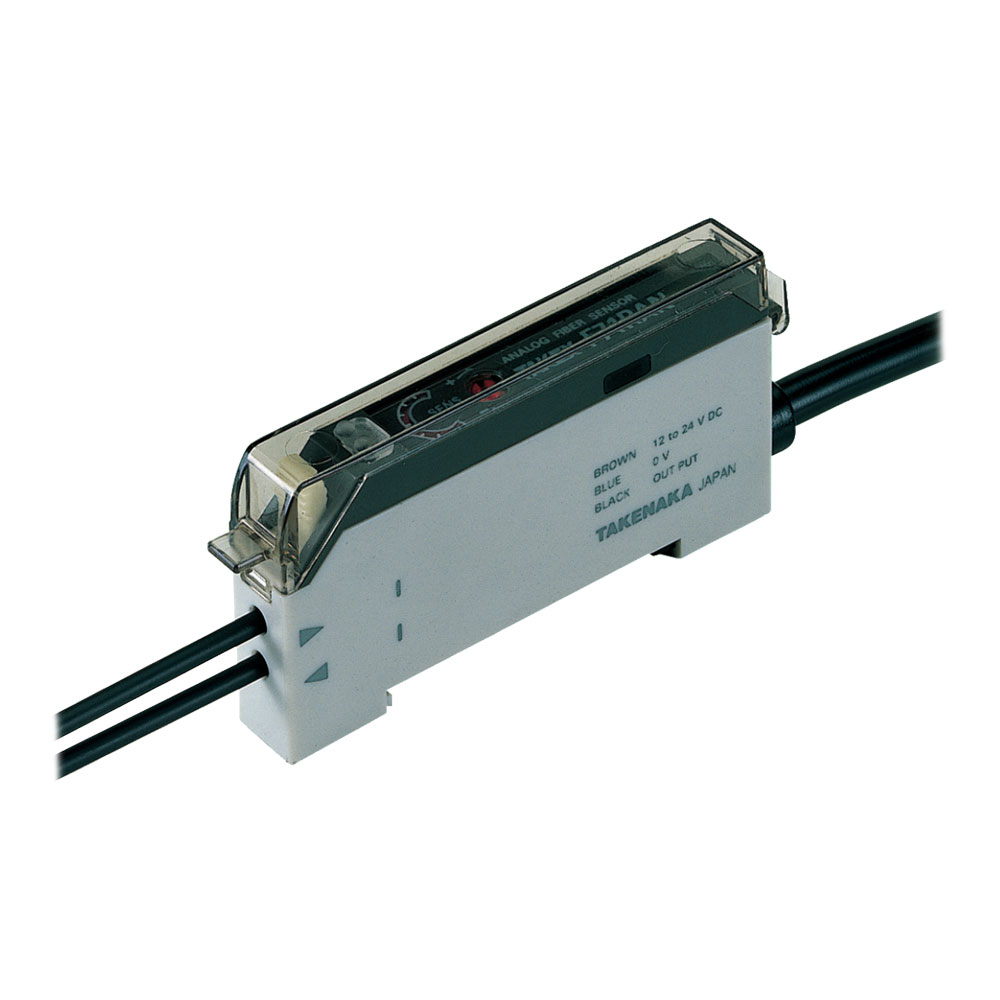

F71RAN Series
Analog output Fiber optic sensor
- Ultra slim 9 mm body
- 8-turn adjustment with indicator for fine tuning
- Red LED allows easy identification of the detecting position.
- Standard・Official Approval
-
F71RAN Series Lineups
| Model | Power supply | Control output | Operation mode | Light source | Response time (ms) | Connection | Use application | Download |
|---|---|---|---|---|---|---|---|---|
F71RAN
|
12 - 24VDC | Analog | Output in proportion to received light intensity | Red LED |
10.000
25.000 |
Attached cable |
semiconductor / LCD
precision instruments / electronic components |
Feature

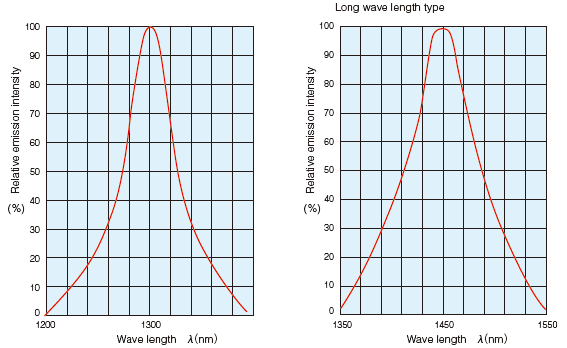

Emission spectrum characteristics (typical one)

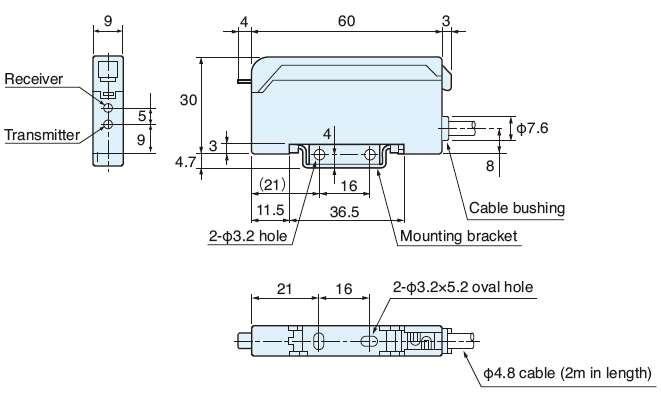

Dimension

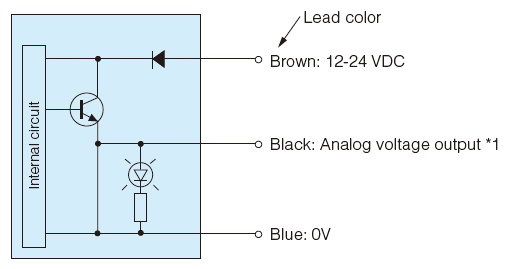

Circuit
*1: Output current: 3 mA
Effective voltage range: 2-8 V
Automatic assembly
Position control of stick-on tape
Analog output fiber optic sensor used for detecting edge of tape for prevention of displacement of tape.
