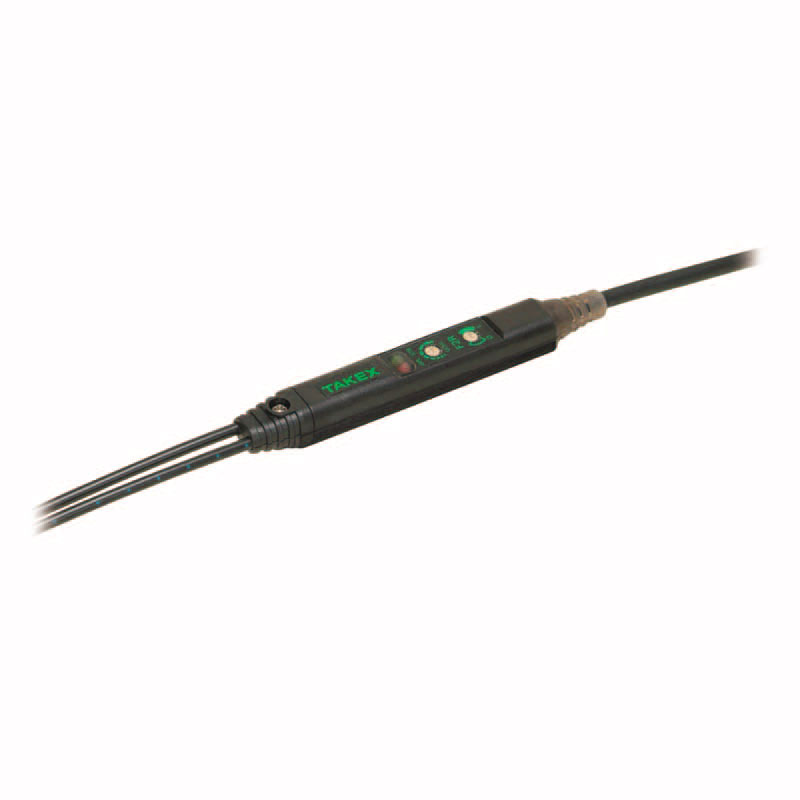

F2R Series
Slim size Fiber optic sensors
- Amazingly slim size
(8 x 10 x 73 mm) - Low cost
- NPN and PNP output types are available
- High speed response of 500μs
- Set models with fiber optic cables are also available.
- Reflective type with fiber optic cables: F2R-FR8E
- Through beam type with fiber optic cables: F2R-FT8E
- The fiber optic cable features 50 cm free cutting. (M3 P = 0.5 head)
- Standard・Official Approval
-
F2R Series Lineups
| Model | Power supply | Control output | Operation mode | Light source | Response time (ms) | Connection | Use application | Download |
|---|---|---|---|---|---|---|---|---|
F2R
|
12 - 24VDC | NPN |
Dark-ON
Light-ON |
Red LED | 0.500 | Attached cable | precision instruments / electronic components | |
|
F2R-J
|
12 - 24VDC | NPN |
Dark-ON
Light-ON |
Red LED | 0.500 | Connector type | precision instruments / electronic components | |
|
F2RPN
|
12 - 24VDC | PNP |
Dark-ON
Light-ON |
Red LED | 0.500 | Attached cable | precision instruments / electronic components | |
|
F2RPN-J
|
12 - 24VDC | PNP |
Dark-ON
Light-ON |
Red LED | 0.500 | Connector type | precision instruments / electronic components |
Dimension

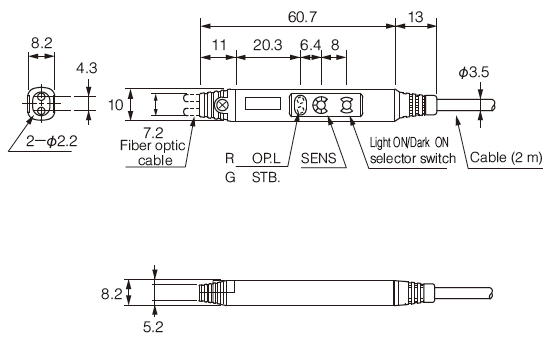

F2R, F2RPN (attached cable)

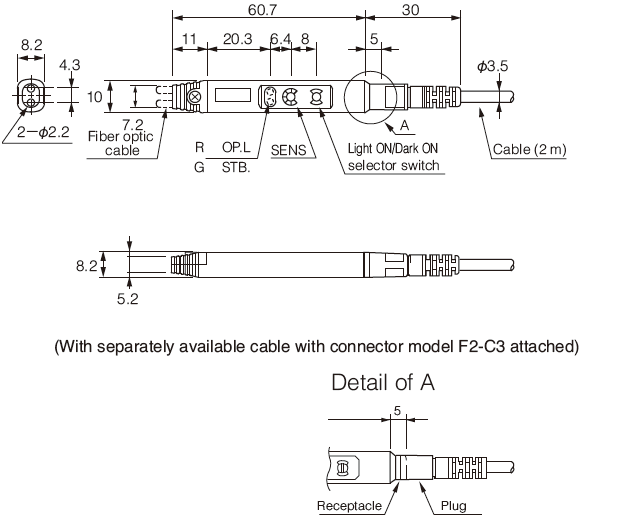

F2R-J, F2RPN-J (connector type)

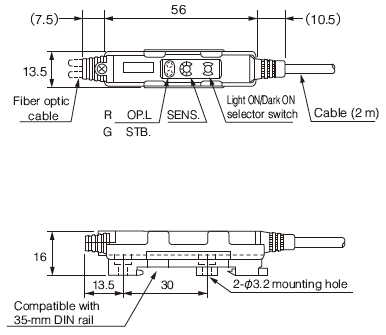

With DIN rail mounting bracket attached(F2R, F2RPN)

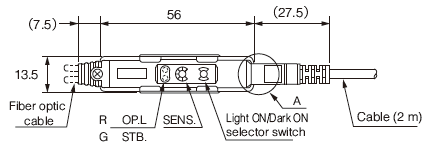

With DIN rail mounting bracket attached(F2R-J, F2RPN-J)
Pitch for adjacent screw mounting (14 mm)

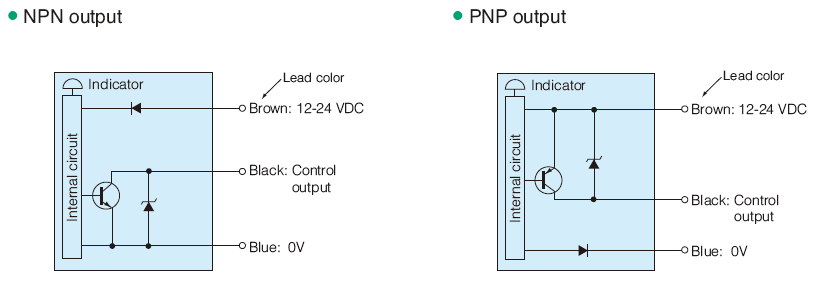

Circuit
In the condition of load short circuit or overload, the output transistor turns off. Check the load condition before restarting.

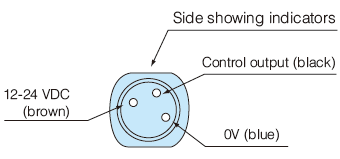

Connector type (-J) pin assignment
Automatic assembly
Checking for the presence of caps
Presence of caps on works checked by retroreflective fiber optic cable.
Metal processing

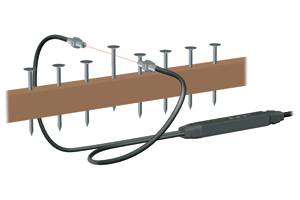

Detection of defective taping of nails
Through beam fiber optic sensor used for detecting nails displaced in taping.
