F80R Series
Digital display Fiber optic sensors

  • User friendly and low cost design
  • “Long distance” mode for dramatically increased detecting distance
  • 8 times(*) wider dynamic range and 0 to 8,000 scaled indication enable precise monitoring.
  • 4.5 times(*) larger display allows easy and quick adjustment.
  • Low power consumption
    (*) compared with conventional Takex product
Standard・Official Approval
  • CE Mark
  • cULTus LISTED Mark

F80R Series Lineups

Model Power supply Control output Operation mode Light source Response time (ms) Connection Use application Download
F80R
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Red LED 0.190
1.800
Attached cable semiconductor / LCD
precision instruments / electronic components
F80RPN
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Red LED 0.190
1.800
Attached cable semiconductor / LCD
precision instruments / electronic components

Feature

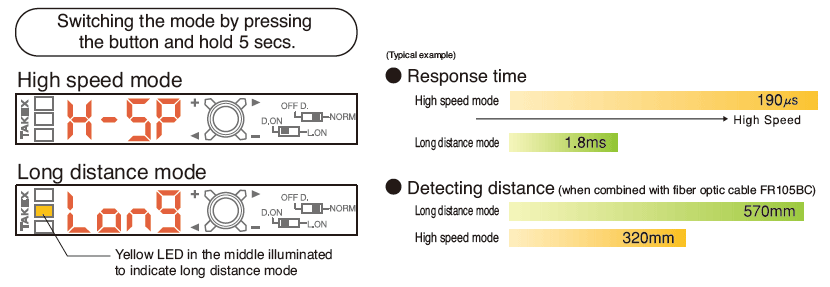

High Speed, Long Distance Capability

High speed mode or long distance mode is selectable according to the application.

Switching the mode by pressing the button and hold 5 secs.

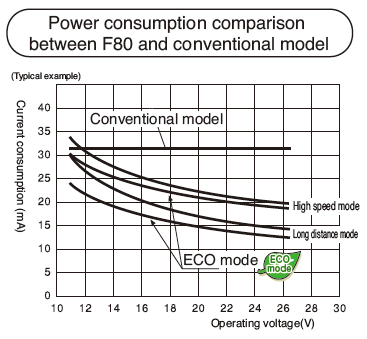

Low Power Consumption Achieved through Energy-Saving Design

Low Power Consumption Achieved through Energy-Saving Design

  • Lower power consumption of less than half of that of a conventional model (by utilizing ECO operation), achieving power consumption of about 15 mA at 24 V (in long distance mode).
  • Dark illumination enabled during normal operation, (when viewing of digital display tends to be less frequent, has reduced power consumption down to about 1/5 of that of illuminated digital display).

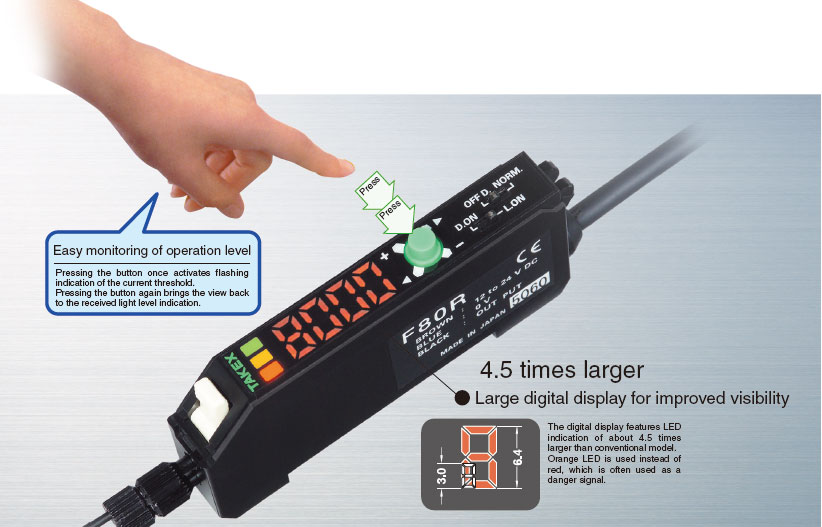

Simple Operation

Simple Operation

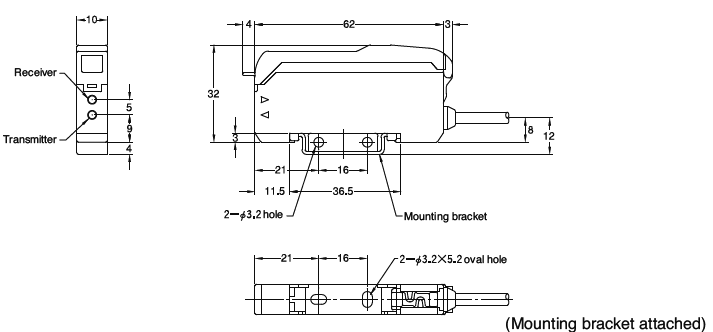

Dimension

Amplifier
Model: F80R Series

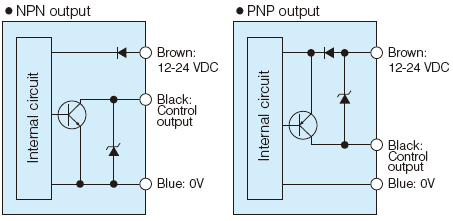

Circuit

In the condition of load short circuit or overload, the output transistor turns off. Check the load condition before restarting.
