FZV8301BC
Convergent reflective type
Ideal for fitting into robot hand with a thickness of only 3 mm
FZV8301BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FZV8301BC
|
Convergent reflective | Ordinary temperature | Square | 3mm | 20 | 2 (free-cutting) |
F70
F71 F80R F85RN |

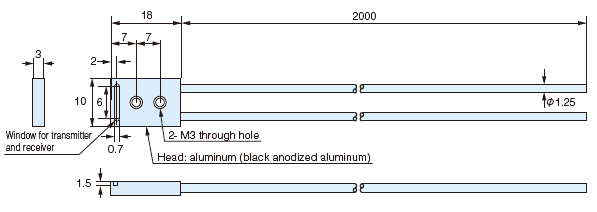

Dimension
Semiconductor
Robot arm-mounted sensor
Convergent reflective fiber optic cable embedded in arm.
