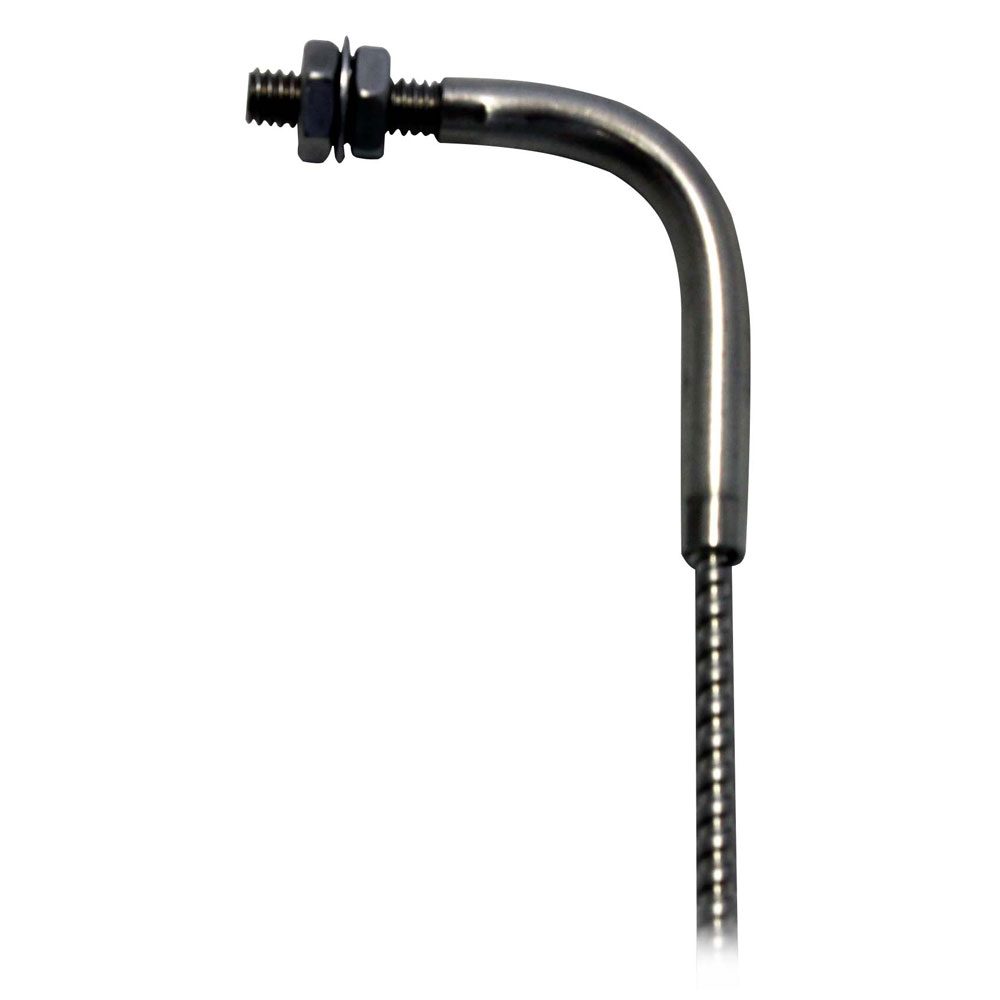

GTSH705V
Fiber-pin vacuum proof fiber optic cable (only for 1ch)

Vacuum proof fiber guide pin system

GTSH705V Lineups

Model Detection method Environmental feature Tip appearance Tip size Detecting distance min (mm) Detecting distance (mm) Feature Cable length (m) Applicable amplifer Download
GTSH705V
仕様を見る
Through beam Vacuum proof Threaded M4 600 Fiber-pin vacuum proof 0.5 F70
F71
F80R
F85RN

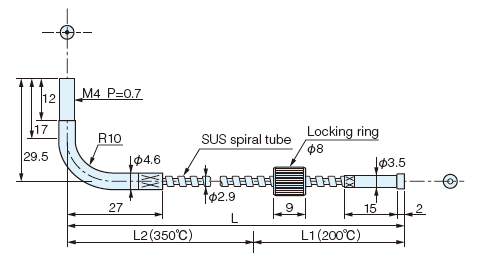

Dimension

Semiconductor

Detection of wafers in vacuum tank

Heat-resistant vacuum fiber optic cable with V-shaped design.Convergent reflection is not affected by the background.
