US-S25AN
Ultrasonic Sensors
- Handy M18 cylinder
- Integrated amplifier for easy adjustment
- Easy alignment with sharp narrow view
- Low cost and versatile miniature ultrasonic sensor with analog output
- Standard・Official Approval
-
US-S25AN Lineups
| Model | Type | Power supply | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Control output | Response speed (ms) | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|
US-S25AN
|
Ultrasonic | 24VDC | Reflective | 60 | 250 | Analog |
30
300 |
Attached cable |

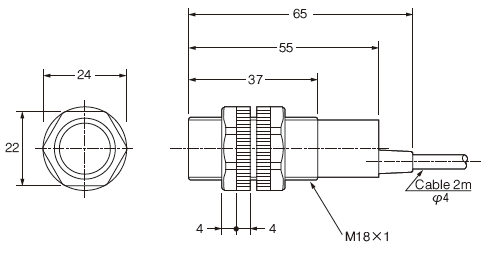

Dimension
(Notes on installation)
If you tighten the screw too strongly, its thread may be broken and the screw may get loose. Please keep the tightening torque 0.98N m or less.

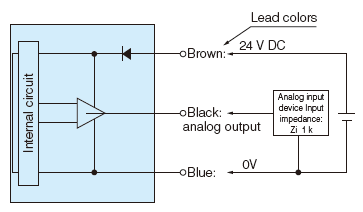

Circuit
Semiconductor
Silicon wafer detection
Compact ultrasonic sensor used for “underneath” detection.
Automatic assembly
Detection of oil level
Ultrasonic sensor measures the distance to the oil surface without contact.
Packaging/Food/Drug
Identification of height of medicines
An ultrasonic sensor identifies the height of colorful objects such as medicines for analogue output.
Packaging/Food/Drug
Content checking
Ultrasonic sensor used for detecting liquid content from outside of bottles through openings.
