MST Series
Separate output for each optical axis Light Curtain Sensors
- Separate outputs for individual channels and analog output available
- Separate output for each channel available, allowing use of only required number of channels when any obstacle is in detection area
- Light ON/Dark ON selector switch is provided
- Analog output in proportion to the number of received/blocked light beams available, span voltage variable
- Long detecting distance of 10 m available, simple Optical axis alignment
- Fully synchronized scanning light emission
MST Series Lineups
| Model | Type | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Detecting object (dia.) | Beam interval (mm) | Detecting width (mm) | Control output | Download |
|---|---|---|---|---|---|---|---|---|---|
MST104
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 120 |
NPN
Analog |
||
|
MST108
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 280 |
NPN
Analog |
||
|
MST112
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 440 |
NPN
Analog |
||
|
MST116
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 600 |
NPN
Analog |
||
|
MST120
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 760 |
NPN
Analog |
||
|
MST124
|
Light curtain sensor | Through beam | 10000 | 60.0 | 40.00 | 920 |
NPN
Analog |
Dimension

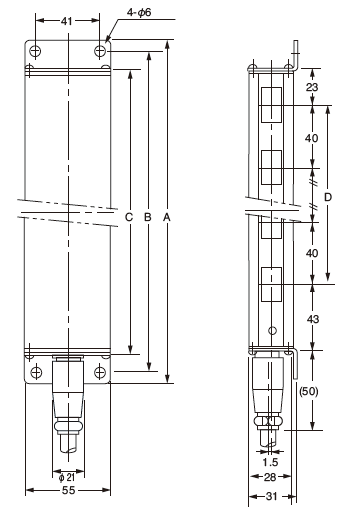

Transmitter

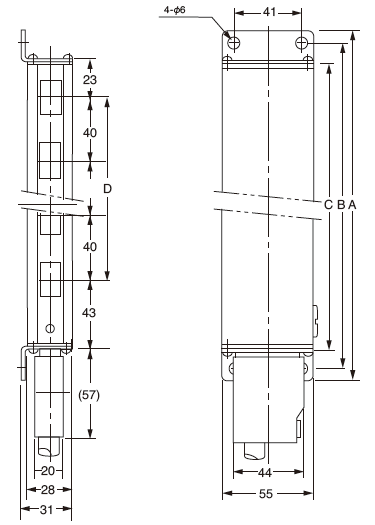

Receiver
