SSP-M32R
Polarized retroreflective bin-picking Light curtain sensor
- Super thin body at only 12mm thick.
One-side wiring of the retroreflective type makes installation easier.
Space-saving sensors also remove obstacles from work. - Easy-to-see large Job indicator
On the side of the body, there are large-sized, high intensity green LED Job indicators which are easy to see. - Fault indicator
When the wrong item is taken from a shelf,red lights of the Fault indicator flash on and off, letting you know the item is wrong.
- Standard・Official Approval
-
SSP-M32R Lineups
| Model | Type | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Detecting object (dia.) | Beam interval (mm) | Detecting width (mm) | Control output | Download |
|---|---|---|---|---|---|---|---|---|---|
SSP-M32R
|
Bin-picking system | Polarized retroreflective | 60 | 300 | 40 | NPN |
Dimension

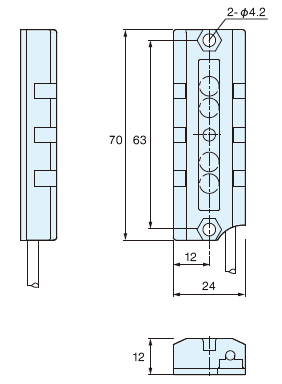

Body
SSP-M32R

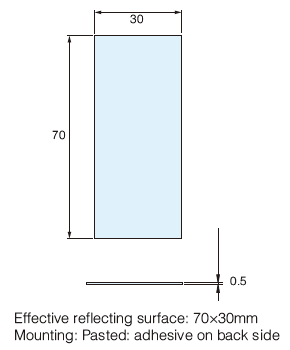

Reflector
S-SSP70 (supplied accessory)

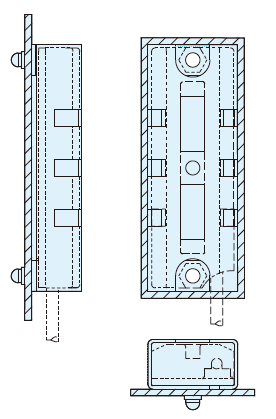

Protective cover attached
Install the sensor, using M4 screws and M4 nuts, and the tightening torque has to be 0.8N m or less.
(Screws and nuts are optional accessories.)

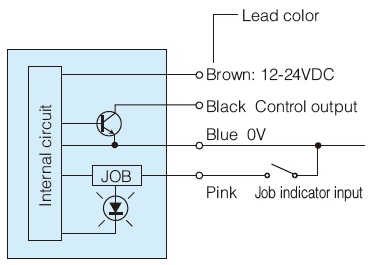

Circuit
- The output transistor turns off when load short circuits or overload occurs. Check the load and turn the power back on.
Option
Reflector
| ReflectorS-SSP70
|
|
Protective cover
| Protective coverSSP-BF32 |
|
