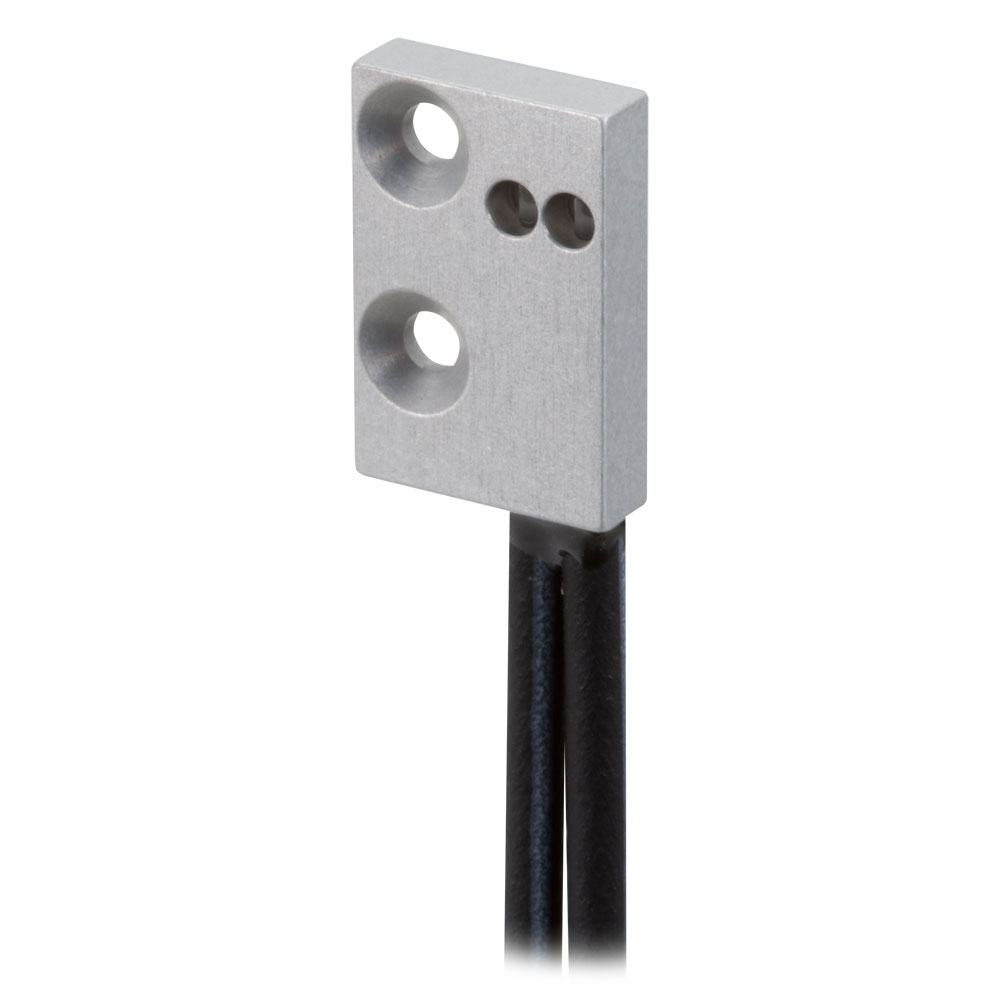

FAL-R5TYBC
Diffuse reflective, side edge view
- Space-saving
Fit to a narrow or shallow space. - No need of mounting bracket
Installation is direct and does not require any special mounting bracket. - Stainless countersunk screws attached
Eight stainless steel M2 fixing screws resistant to corrosion, deformation, and discoloration. - Aluminum housing
Incorporates a robust protective aluminum casing. - Flush mounting
Compact mounting allows unobtrusive installation.
FAL-R5TYBC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FAL-R5TYBC
|
Reflective | Ordinary temperature | Flat | 300 | 2 (free-cutting) |
F70AR
F70R F80R F85RN |
Feature
Models for use of highly limited spaces

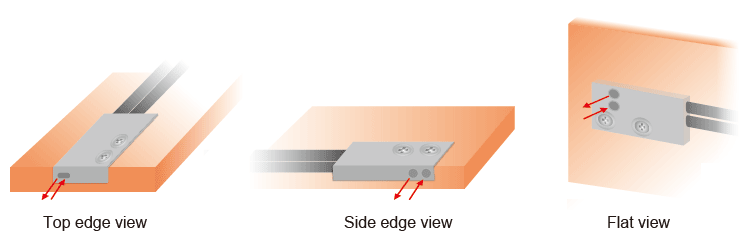

Three types for flexible mounting options
Three ways to mount with flush fitting, according to the desired sensor orientation.

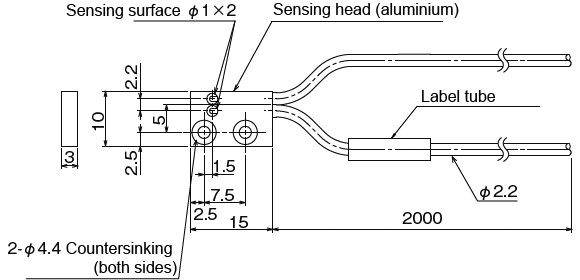

Dimension
FAL-R5TYBC
