FM5BC
Polarized retroreflective
- Reliably detects transparent objects
Light beam passes through a transparent object twice using a reflector and the slight change in light intensity is detected. Transparent objects such as glass bottles or plastic films can be detected. - Polarized retroreflector
Even objects with specular surfaces are reliably detected. - Easy installation
Easy routing of the cable due to the structure with a reflector at one side. - Dedicated reflector
A dedicated reflector and mounting bracket are attached.
FM5BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FM5BC
|
Ordinary temperature | Square | 100 | 1500 | 2 (free-cutting) |
F70AR
F70R F80R F85RN |

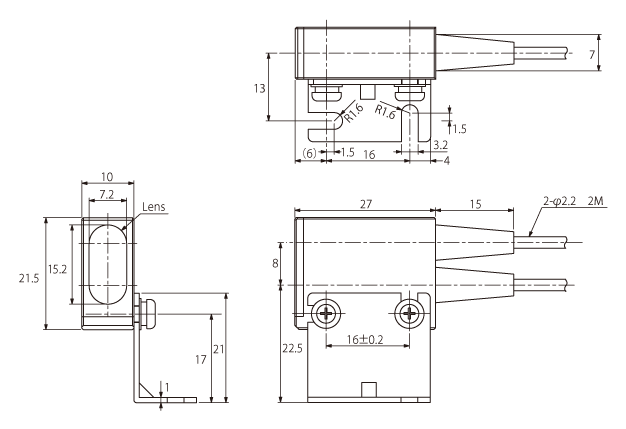

Dimension
FM5BC (free-cutting)
Mounting bracket attached
●Attachment：2 screws
●Material：SUS

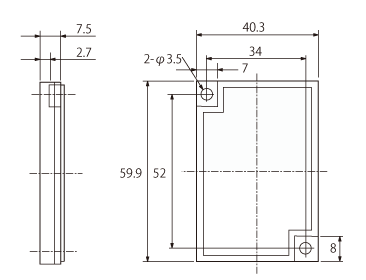

Dedicated reflector attached
