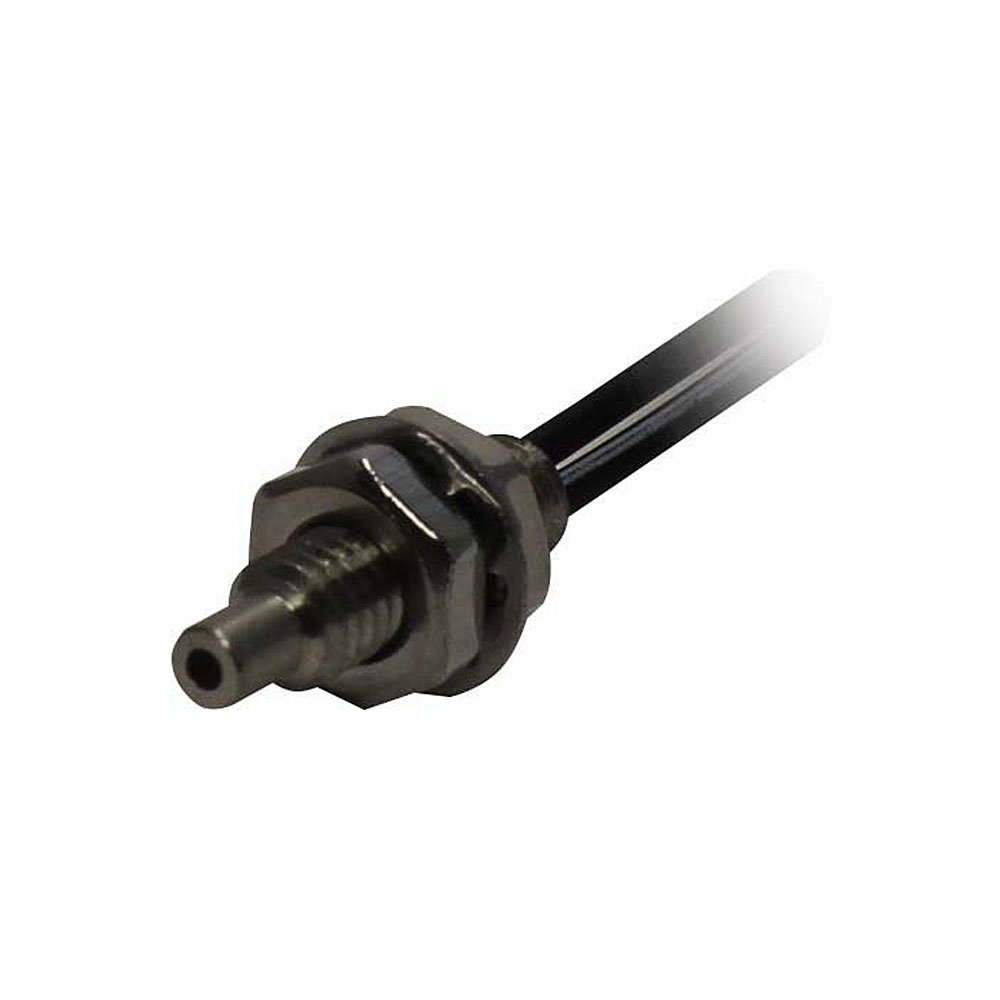

FR84BC
Reflective type
M4 threaded, φ1.25 thin diameter fiber optic cable with φ2.5 head
FR84BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FR84BC
|
Reflective | Ordinary temperature | Threaded | M4 | 770 | 2 (free-cutting) |
F2R
F70 F80R F85RN |

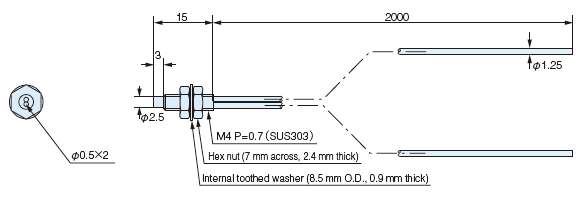

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
