FR5BC
Reflective type
M6 threaded, long distance detection
FR5BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FR5BC
|
Reflective | Ordinary temperature | Threaded | M6 | 1000 | 2 (free-cutting) |
F2R
F70 F80R F85RN |

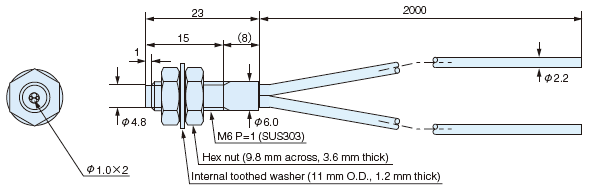

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
