UM Series
Miniature / Side-on Embedded Amplifier Photo Sensors
- Ultra-mini and attached with M3 screws
- Slim slide-on style sensor
- Basic function model for applications ranging from flush-mounting to small conveyor lines
- In-line sensitivity adjustment
- Standard・Official Approval
-
UM Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
UM-T51DNS
|
12-24VDC | Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-T51DNSV
|
12-24VDC | Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-T51NS
|
12-24VDC | Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-T51NSV
|
12-24VDC | Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable |

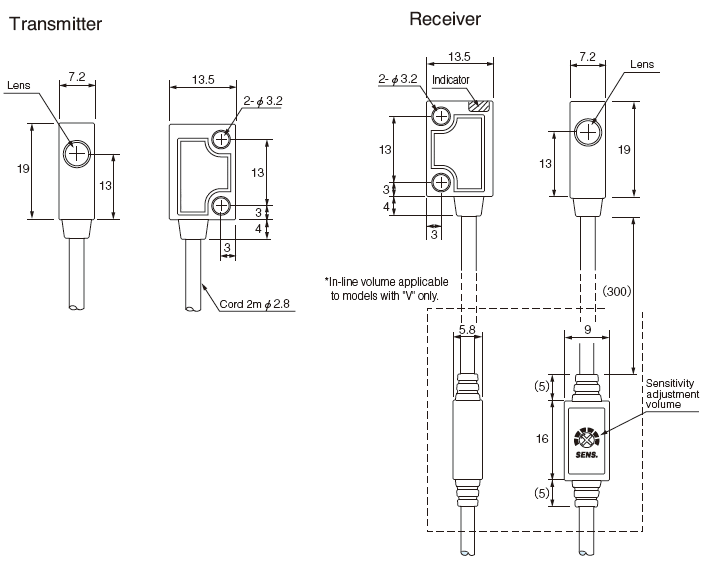

Dimension
UM Series
- No mounting bracket is provided.
- For mounting, use the screws provided with sensors.
The tightening torque not exceed 0.3 N?m. - Accessories (M3 x 15 mm screws, nuts, two 3-piece sems screws provided)

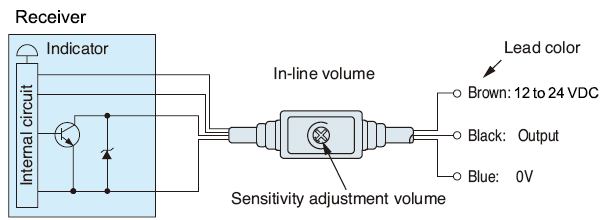

Circuit
UM-T51DNS
UM-T51NS
UM-T51DNSV
UM-T51NSV
With in-line sensitivity adjustment volume
