NP-7398
Output conversion unit
- Easily convert PNP output to NPN output
- Ultra compact unit, and possible to use like a cable
- To convert the output to NPN, just connect it to the PNP output apparatus such as sensor.
NP-7398 Lineups
| Model | Type | Power supply | Input mode | Output mode | Download |
|---|---|---|---|---|---|
NP-7398
|
Output conversion unit | 12 - 24VDC | PNP | NPN |
Feature
Major use
- Adjustment of input and output for peripheral devices made by foreign manufacturers
- Helpful for maintenance or standardization of equipment

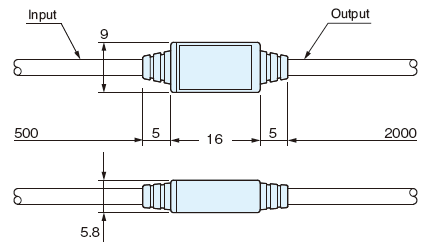

Dimension

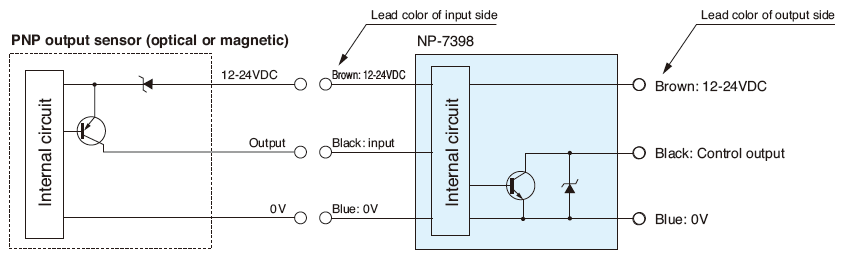

Circuit
- This product is not provided with short circuit protection.
A short circuit may damage output transistors. Please be careful.
