LSC
Scanning control unit for laser type CMD

  • Prevents mutual interference between adjacently installed sensors
    • Controller prevents mutual interference between adjacent installation of two or more sensors
    • Controllers separate for transmitter and receive
    • When two or more sensors are adjacently installed, light from the neighboring transmitter reaches the receiver even if the object blocks the light beam, which causes faulty operation. To prevent this situation, the LSC Series controller synchronizes sensors for externally controlling the light emission pulse of the transmitter and gating of the receiver.
    • Controllers for 5ch, 10ch and 20ch are available according to the number of sensors to be ontrolled.

LSC Lineups

Model Type Channel count Download
LSC05L
仕様を見る
For transmitter 5
LSC10L
仕様を見る
For transmitter 10
LSC20L
仕様を見る
For transmitter 20
LSC05R
仕様を見る
For receiver 5
LSC10R
仕様を見る
For receiver 10
LSC20R
仕様を見る
For receiver 20

Feature

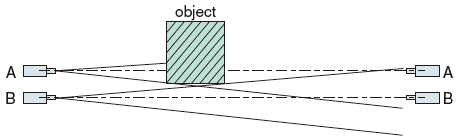

Prevents mutual interference between adjacently installed sensors

Although the light from Transmitter A is blocked by the object, light from Transmitter B enters Receiver A and the object cannot be detected.

Dimension

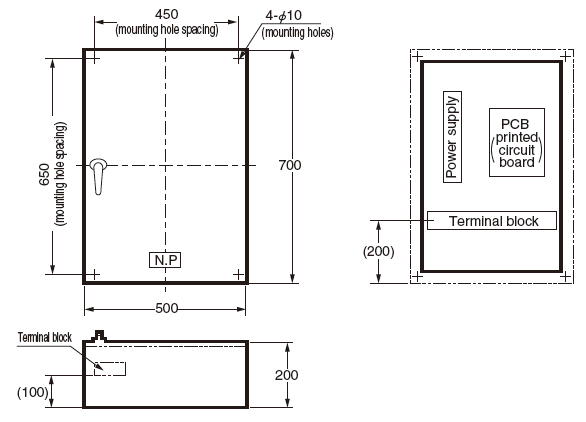

For 5 ch, 10 ch

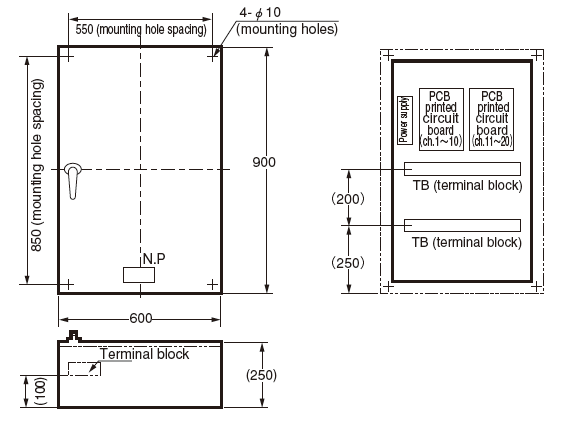

For 20 ch
