KD50 Series
Water-cooled HMD

  • Low cost
  • Reliably detects low temperature (450°C or more) steel material

KD50 Series Lineups

Model Type Detection method Power supply Control output Detecting object temperature Operating temperature range (C) Detecting distance (m) Detecting object (dia.) Download
KD50
仕様を見る
Scheduled end
of order

06/2024
HMD
Water cooled
Infrared energy radiated 100 - 110VAC/200 - 220VAC Relay 450 ‐25~+150 1000.00 25
KD50W
仕様を見る
Scheduled end
of order

06/2024
HMD
Water cooled
Infrared energy radiated 100 - 110VAC/200 - 220VAC Relay 450 ‐25~+150 1000.00 60

Feature

The KD50 Series HMDs are extremely compact and low cost for an amplifier-integrated water cooled sensors. The KD50 Series sensors directly detect infrared radiation and output ON-OFF signals, which is useful for applications such as detection of passage or position of red-hot steel materials including ingots, slabs, steel plates and mold steel.

  • Water-cooled
    The KD50 Series sensors are the smallest of watercooled sensors with built-in amplifiers and are enclosed in a robust case that withstands severe operating conditions.
  • Narrow view and wide view types available
    Choice between narrow view and wide view types allows selection according to installation conditions, etc.
  • Reasonable Cost
    High performance allows detection of low temperature (450 C or more) steel material. Streamlined design offers even more reasonable price.
  • Performance comparable to full size HMDs
    Long detecting distance, sensitivity adjustment feature and high sensitivity offer excellent stability
  • Airless hood or air purge hood attachable
    Prevents dirt deposits on lens, dust hoods that do not require air (F38S, F38N) and air purge hoods (302NC-305NC) are available.

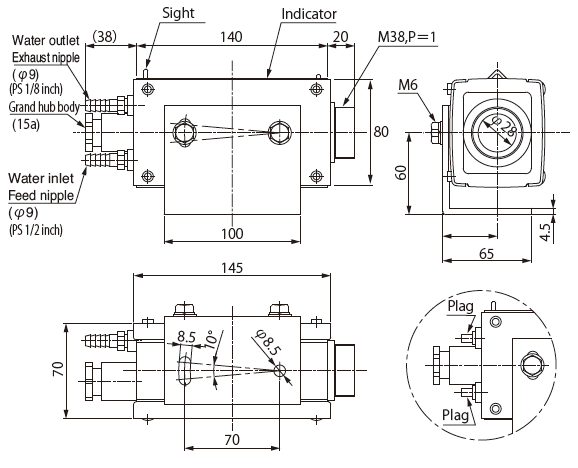

Dimension

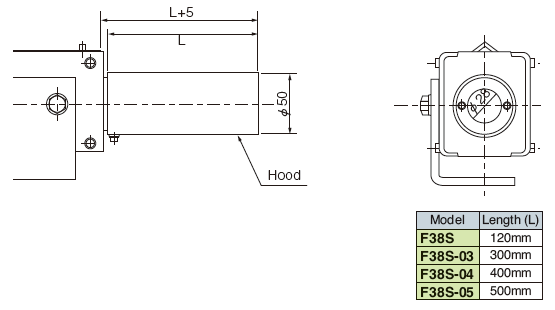

With Airless hood F38S Series attached

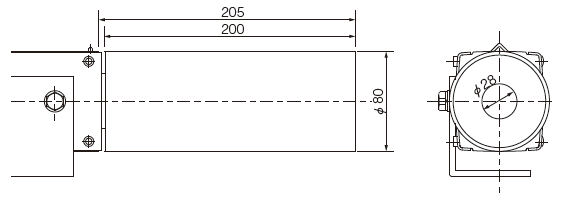

With Airless hood F38N attached

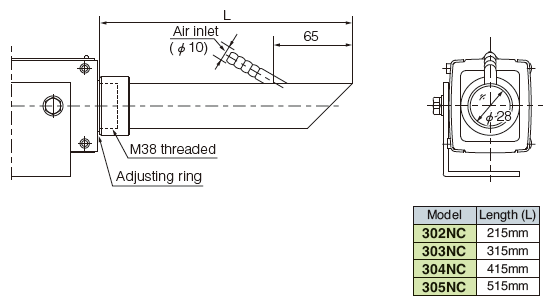

With air purge hood attached

Area

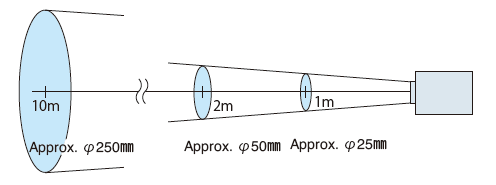

Narrow view type
KD50
KD50E

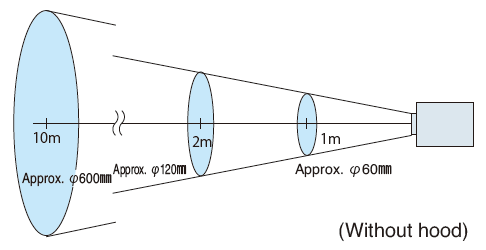

Wide view type
KD50W
