FT10A Series
Fiber type / CMD
- Self check feature provided
- Detecting distance 40 m
（with fiber length 2 m）- Transmitter and receiver as a set; dimensions same for both
FT10A Series Lineups
| Model | Type | Power supply | Control output | Download |
|---|---|---|---|---|
FTL10A FTR10A
|
Fiber type | 100 - 220VAC | Mini power relay output | |
|
FTL10 FTR10AH
|
Fiber type | 100 - 220VAC | Signal relay output | |
|
FTL10A FTR10AC
|
Fiber type | 100 - 220VAC | Solid state output |
Dimension

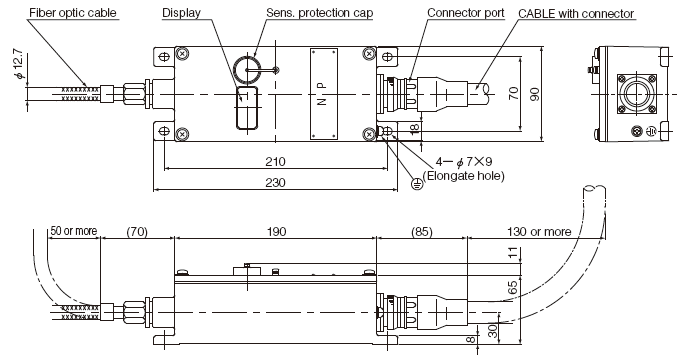

Amplifier unit

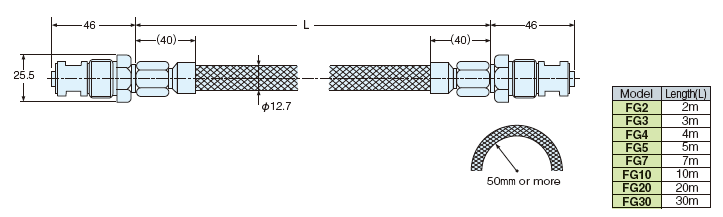

Fiber optic cable

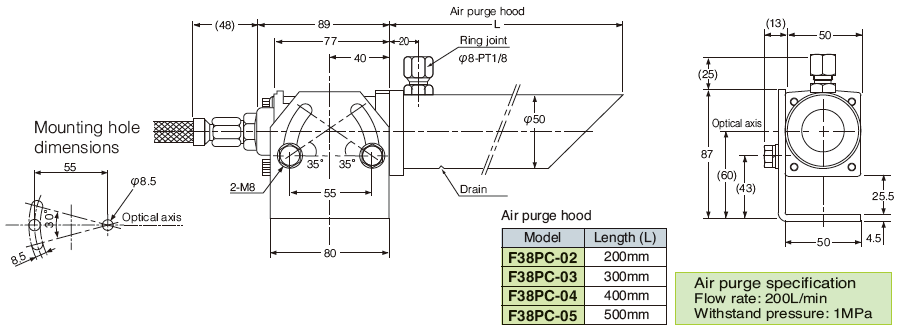

Example of combination of air purge hood and optical head
Optical head Model OHA

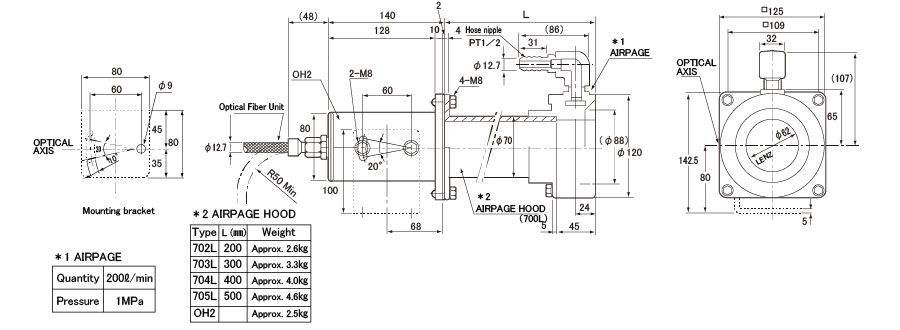

Example of combination of air purge hood and optical head
Optical head Model OH2

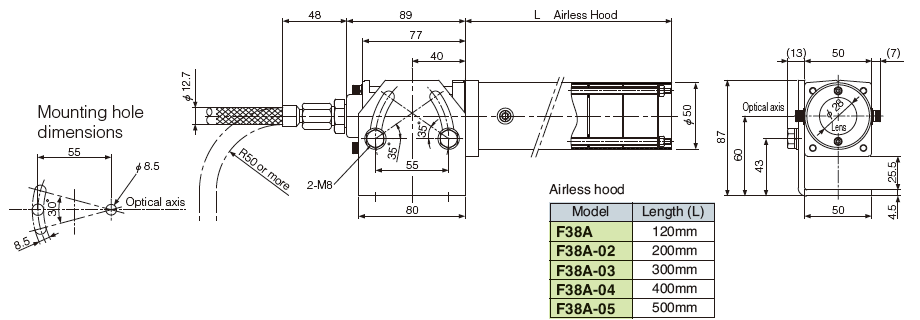

Example of combination of Airless hood and optical head
Optical head Model OHA

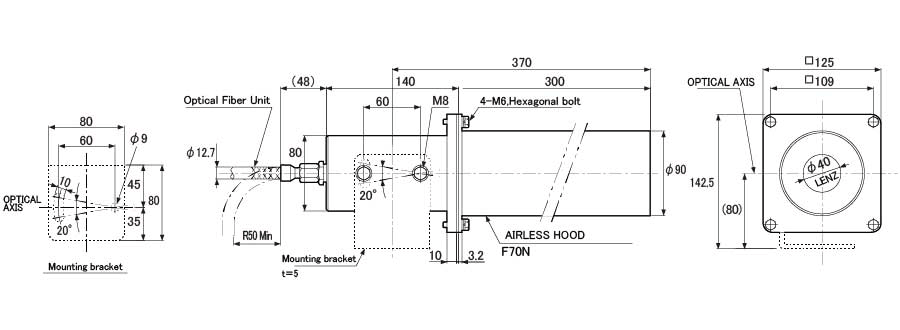

Example of combination of Airless hood and optical head
Optical head Model OH2
Circuit

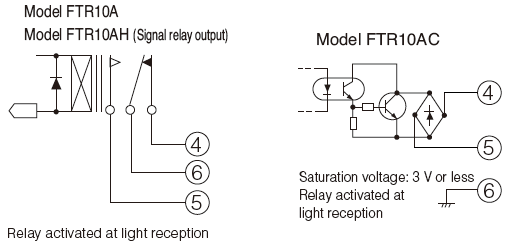

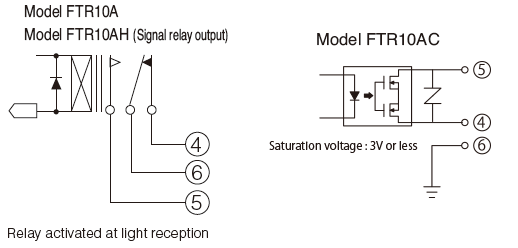

Control output
SAFETY ALARM output (all models)
When connecting an inductive load such as relay, be sure to use diode, surge absorber, etc. to protect output transistors from counter electromotive force.
Light emission monitor output

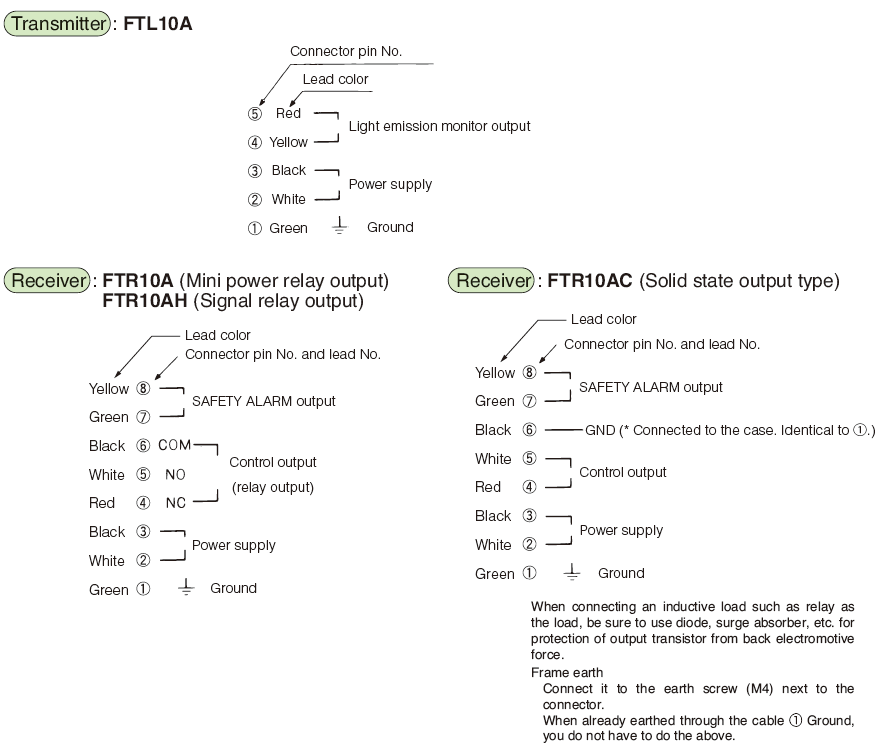

Connection
Option
Optical head
| Optical headOHA |
|
Fiber optic cable
| Fiber optic cableFG2
|
|
||||
| Fiber optic cableFG3 |
|
||||
| Fiber optic cableFG4 |
|
||||
| Fiber optic cableFG5 |
|
||||
| Fiber optic cableFG7 |
|
||||
| Fiber optic cableFG10 |
|
||||
| Fiber optic cableFG15 |
|
||||
| Fiber optic cableFG20 |
|
||||
| Fiber optic cableFG30 |
|
Hood
| HoodF38A |
|
||||||
| HoodF38A-02 |
|
||||||
| HoodF38A-03 |
|
||||||
| HoodF38A-04 |
|
||||||
| HoodF38A-05 |
|
||||||
| HoodF38PC-02 |
|
||||||
| HoodF38PC-03 |
|
||||||
| HoodF38PC-04 |
|
||||||
| HoodF38PC-05 |
|
