NT100(P) Series
Simplified CMD

High powered light transmission capable of withstanding adverse environmental conditions.
Optional parts available for a wide range of applications

Standard・Official Approval

NT100(P) Series Lineups

Model	Type	Power supply	Control output	Download

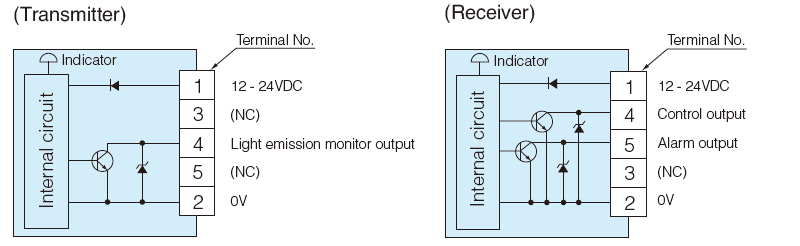

NT100	Simple type	12 - 24VDC	NPN open collector output

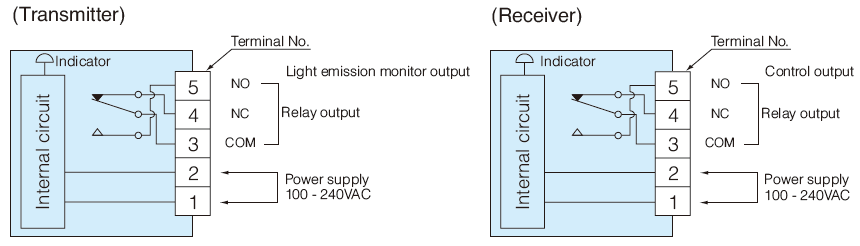

NT100P	Simple type	100 - 240VAC	Relay output

The NT50/100(P) Series sensors are high powered CMDs designed to withstand severe operating environment (water, dust, etc.).

Smallest size of long distance sensors
3-point level indicator with margin for reliable detection
The green LED is illuminated at a level 8 times as much as the operation level but the inherent performance of the emission is over tenfold.
DIN compatible robust Zinc die cast case
Integrated light emission monitor circuit in transmitter
Alarm signal generates output if light emission stops in the unlikely event of failure.
Operation mode selectable
Operation mode is selectable between Light ON and Dark ON with the switch provided.
