K-71
Reflector
Reflector
- Download
-

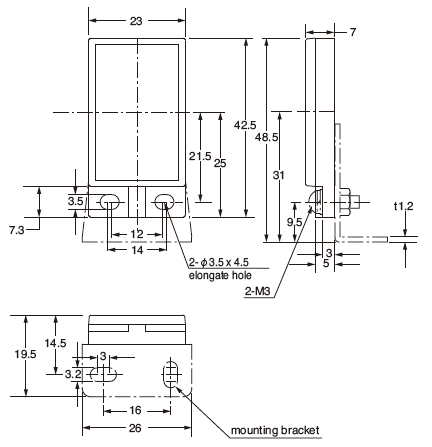

Dimension
Specifications
| Effective reflecting surface | Approx. 30X18mm |
|---|---|
| Protective structure | IP67 |
| Mounting | sedured with M3 screws (alternatively adhesive may be used) |
| Materials | Mirror : acrylic, Base : heat resistant ABS |
| Accessories | Screw : 2, Nut : 2 |
| Dimensions | 43X23mm |
| Detectjing object | Opaque object of dia. 40mm |
| Detecting distance | 0.1 - 2m |
| GN Series | LD-M10R : 3 - 5m |
| NA Series | 0.03 - 3.5m |
| NA Series | 0.5 - 4m |
| NE Series | 0.03 - 2m |
| NE Series | NE2-M10R, NE2M10R-J |
| NE-DC Series | 0.03 - 2m |
| NE-DC Series | LD-M10R : 1 - 5m |
| Middle-G Series | 0.01 - 2m |
| Mini-G Series | 0.1 - 3m |
| NE2 Series | 0.05 - 4m |
| NE2 Series | NE2-M10R-2、NE2M10R-J2 |
| 0.1 - 2m | |
| 0.03 - 1.3m | |
| LD-MX5R | NA-M7R, NA-M7RF |
| NAL-M10RP | NE-M5R(D) |
| LD Series | LD-MX5R : 0 - 4m LD-MX5R-C1 : 0.3 - 1.2m |
