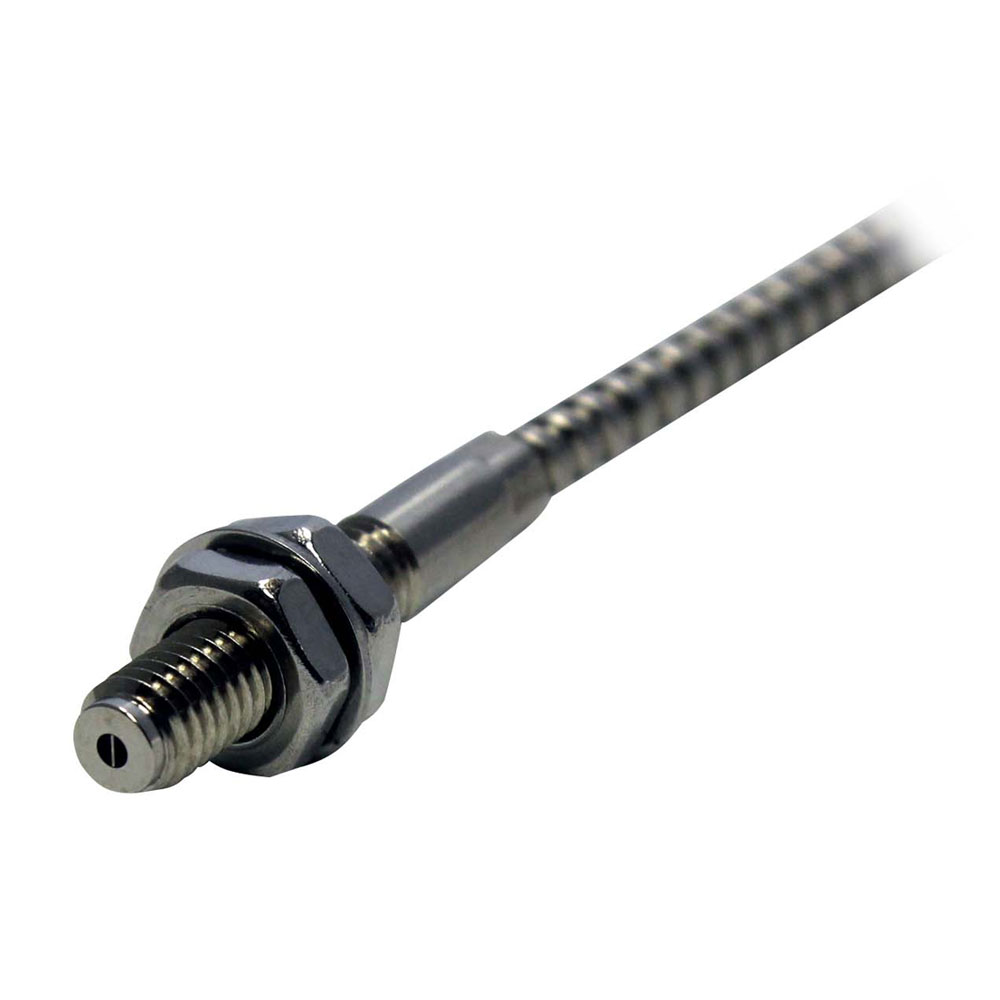

GXH505J
Reflective type
Heat resistance 350 ?C, covered with SUS spiral tube
GXH505J Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
GXH505J
|
Reflective | Heat resistant | Threaded | M4 | 170 | Heat resistant | 0.5 |
F70
F80R F85RN |

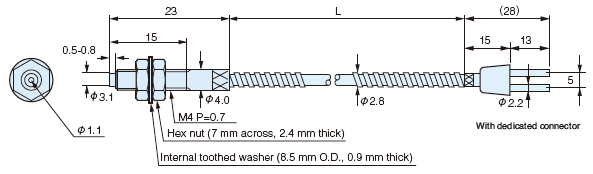

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
