JS2 Series
Coupling type light curtain sensor
- Provided with the self-check function (SCF), which realizes a fail safe system without a control unit
- Equipped with two output circuits in parallel to avoid risk when an output is in trouble

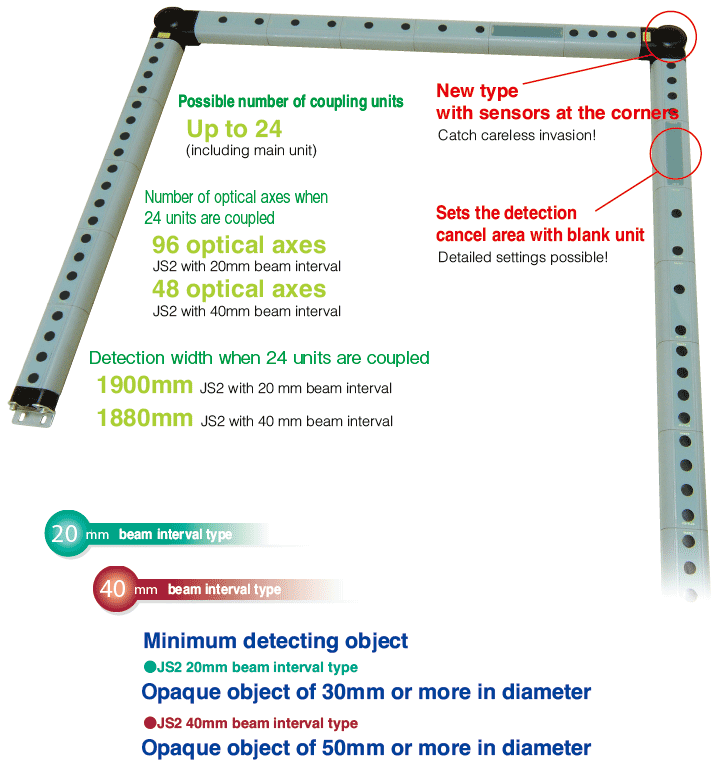

- Flexible combination of different units, with a maximum width of 1900㎜
- L-shape or U-shape connection is possible with a corner unit
- Standard・Official Approval
-
JS2 Series Lineups
| Model | Type | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Detecting object (dia.) | Beam interval (mm) | Detecting width (mm) | Control output | Download |
|---|---|---|---|---|---|---|---|---|---|
JS2-T2M
|
Light curtain sensor | Through beam | 5000 | 30.0 | 20.00 | 60 | NPN | ||
|
JS2-T2MPN
|
Light curtain sensor | Through beam | 5000 | 30.0 | 20.00 | 60 | PNP | ||
|
JS2-T2SN
|
Light curtain sensor | Through beam | 5000 | 30.0 | 20.00 | 60 | NPN | ||
|
JS2-T4M
|
Light curtain sensor | Through beam | 5000 | 50.0 | 50.00 | 40 | NPN | ||
|
JS2-T4MPN
|
Light curtain sensor | Through beam | 5000 | 50.0 | 50.00 | 40 | PNP | ||
|
JS2-T4SN
|
Light curtain sensor | Through beam | 5000 | 50.0 | 50.00 | 60 | NPN |
Feature
A wide or narrow detection width is possible with the coupling unit
Maximum detextion width is 1900mm. Increased flexibility of detection area.
Extremely high degree of freedom
The high degree of freedom provides optimal cost-efficiency

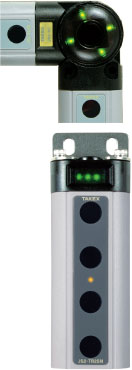

- Equipped with easy-to-see large indicators
- Light reception stability indicator / operation indicator / received light intensity indicator (equipped with expansion unit receiver)
- Flexibly combined and applicable to various detection environments

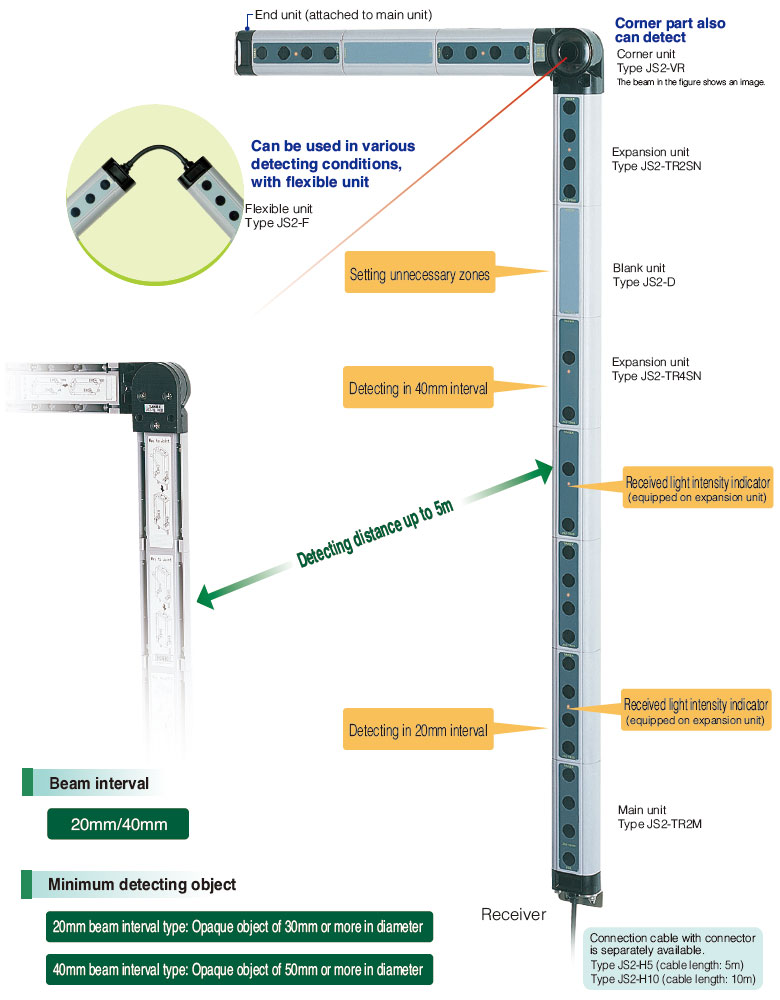

- Combination of beam interval 20mm and 40mm or compound expansion including blank units and corner units are possible.

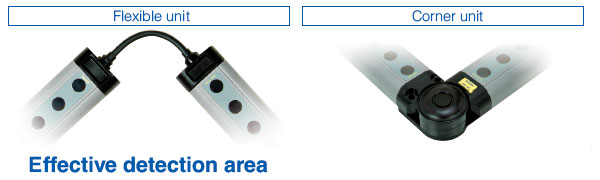

- An angled detection area can be set with a corner unit and a flexible unit.
Couple the units with 20mm and 40mm beam intervals and expand them

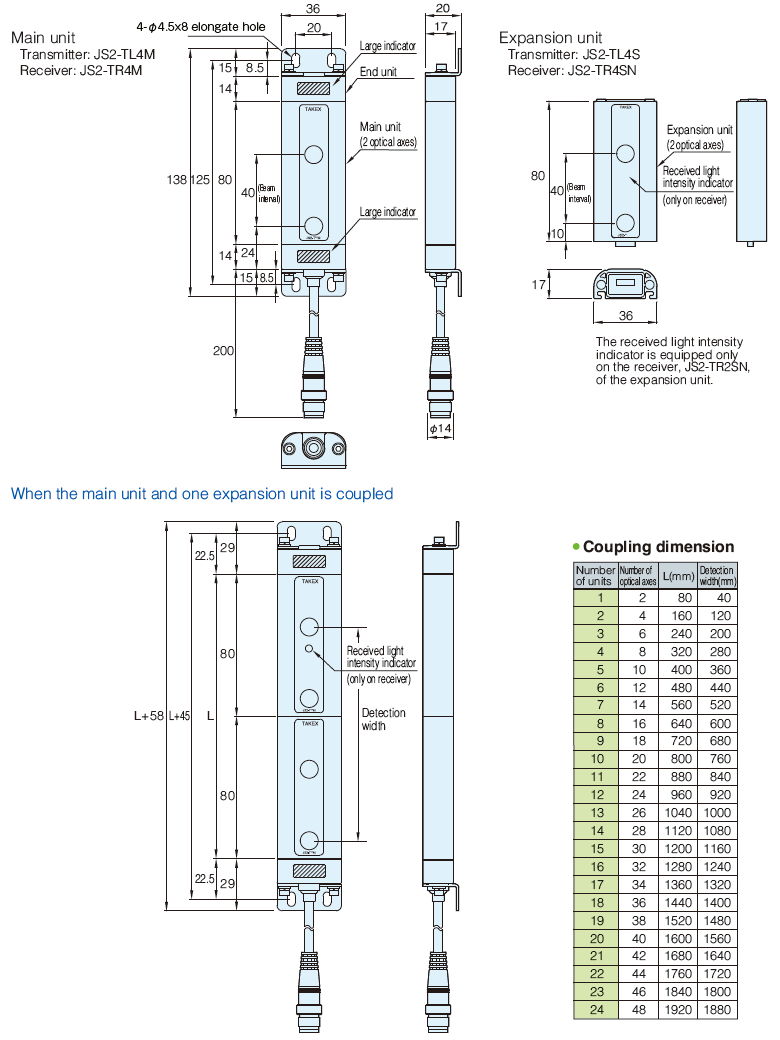

Dimension

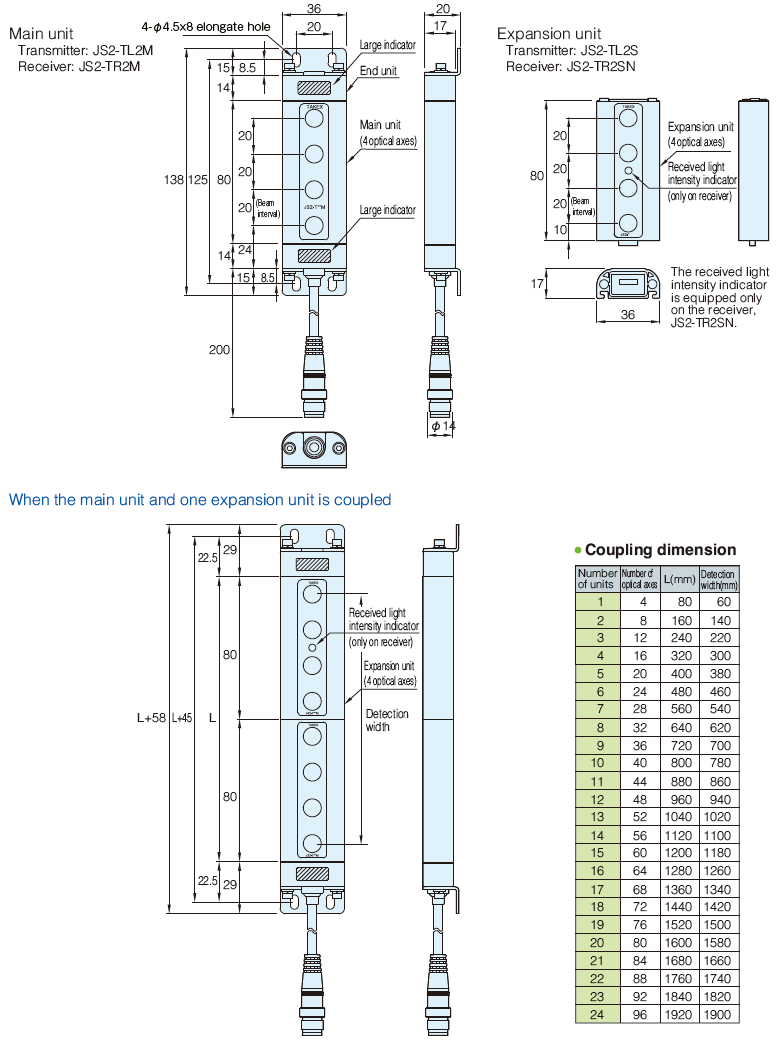

20mm beam interval type
40mm beam interval type

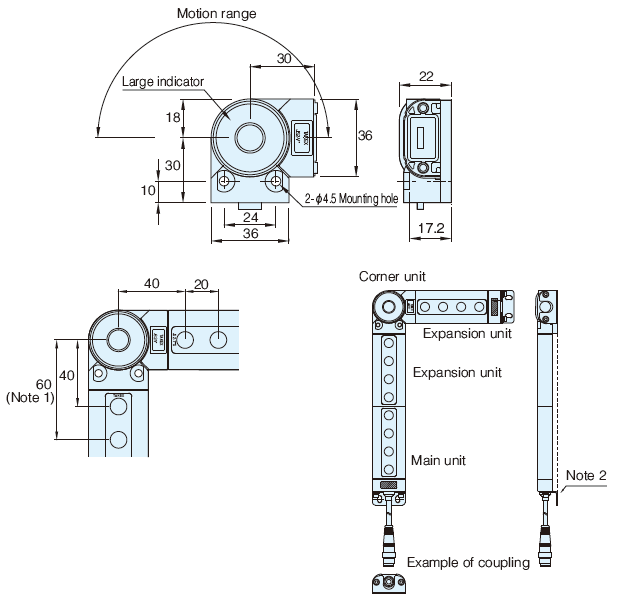

Corner unit
Transmitter: JS2-VL
Receiver: JS2-VR
- Note 1: The beam interval here is 60mm when combined with the 40mm beam interval.
- Note 2: Attach the mounting bracket flush with the bottom of the corner unit.

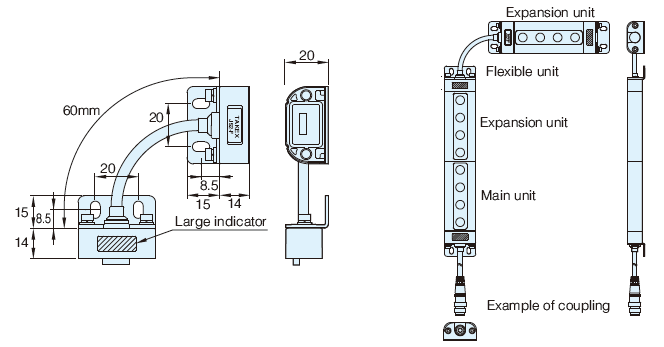

Flexible unit
JS2-F
Common to transmitter and receiver
(Can be used for either transmitter or receiver)
Blank unit
JS2-D
Common to transmitter and receiver
(Can be used for either transmitter or receiver)

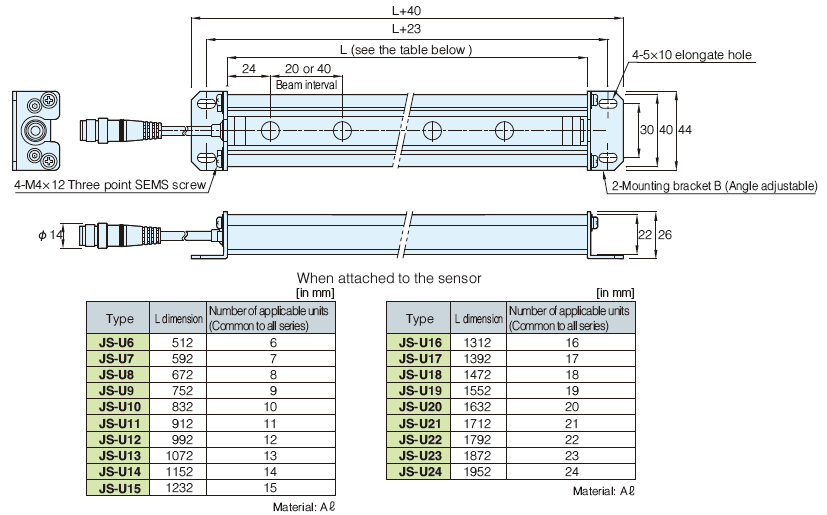

Reinforcing case (optional)
When you couple more than eight units, use reinforcing cases, JS-U series (optional) to prevent bending or twisting.
A receiver needs two cases.
Connection cable with connector
Extension cable with connector (optional)
Safety
Detection of entering objects into machine
Detecting a human hand coming into a processing machine.
Option
Corner unit
| Corner unitJS2-V
|
|
Flexible unit
| Flexible unitJS2-F
|
|
Blank unit
| Blank unitJS2-D
|
|

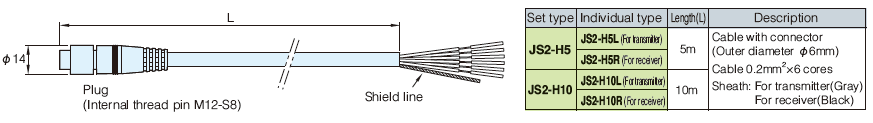

Cable with connector
| Connection cable with connectorJS2-H5L JS2-H5R
|
|

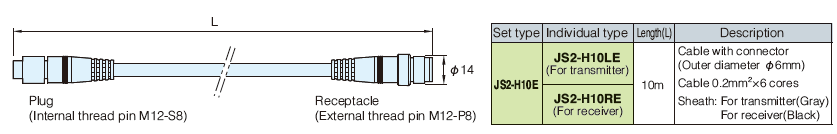

Cable with connector
| Extension cable with connectorJS2-H10L JS2-H10R
|
|
||||||
| Extension cable with connectorJS2-H10E
|
|
Reinforcing case
| Reinforcing caseJS-U6
|
|
||||
| Reinforcing caseJS-U7
|
|
||||
| Reinforcing caseJS-U8
|
|
||||
| Reinforcing caseJS-U9
|
|
||||
| Reinforcing caseJS-U10
|
|
||||
| Reinforcing caseJS-U11
|
|
||||
| Reinforcing caseJS-U12
|
|
||||
| Reinforcing caseJS-U13
|
|
||||
| Reinforcing caseJS-U14
|
|
||||
| Reinforcing caseJS-U15
|
|
||||
| Reinforcing caseJS-U16
|
|
||||
| Reinforcing caseJS-U17
|
|
||||
| Reinforcing caseJS-U18
|
|
||||
| Reinforcing caseJS-U19
|
|
||||
| Reinforcing caseJS-U20
|
|
||||
| Reinforcing caseJS-U21
|
|
||||
| Reinforcing caseJS-U22
|
|
||||
| Reinforcing caseJS-U23
|
|
||||
| Reinforcing caseJS-U24
|
|
