SSC-T800 Series
Sequential Array Scanning Light Curtain Sensors
- Fine object detection with Sequential Array Scanning
- With a robust metal case!
- Five kinds of beam intervals, which you can select according to use!
- Small objects and flat tape-like objects detected
- Convenient simplified wiring requiring no clock (synchronization) line
- Compact and flat (14.5mm)
- Water resistance compliant with IP 67
- Standard・Official Approval
-
SSC-T800 Series Lineups
Feature
Sequential Array Scanning
SSC-T800 makes a sequential scan of a two dimensional array formed by each transmitter and the whole set of corresponding receivers.
This method of scanning creates a high-density detection net between the transmitter and the receiver. Thin pipe, tape or name cards that pass through conventional light curtains can be reliably detected.

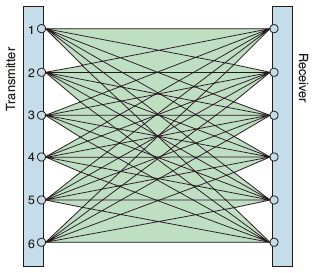

The figure on the right shows a model with six light axes. The number of light axes depends on the model.

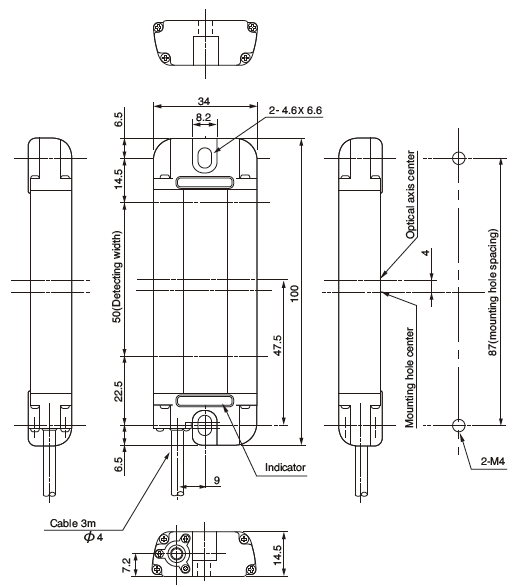

Dimension
SSC-T801
When installing the main unit of the sensor, the tightening torque has to be 0.6N m or less.

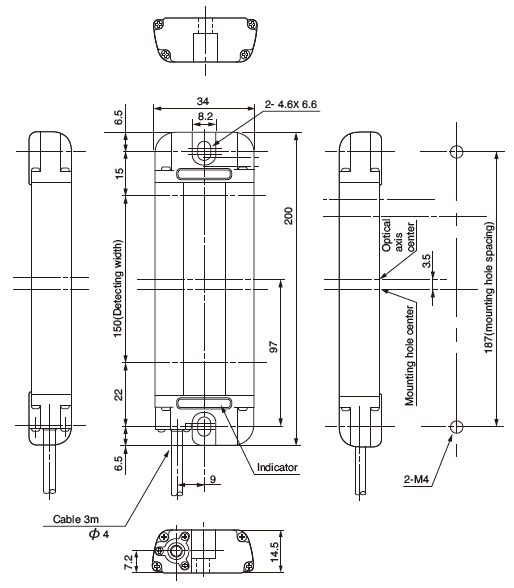

SSC-T850
When installing the main unit of the sensor, the tightening torque has to be 0.6N m or less.

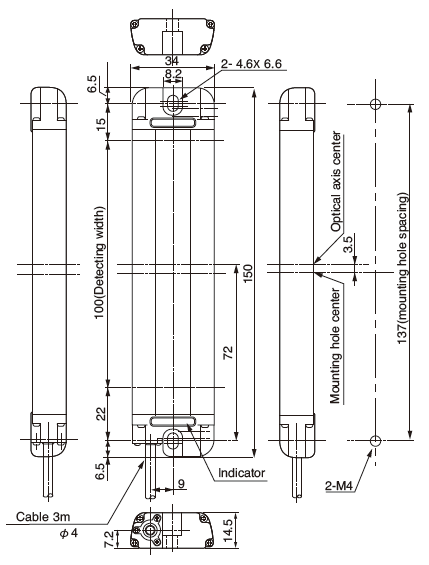

SSC-T810
SSC-T830
When installing the main unit of the sensor, the tightening torque has to be 0.6N m or less.

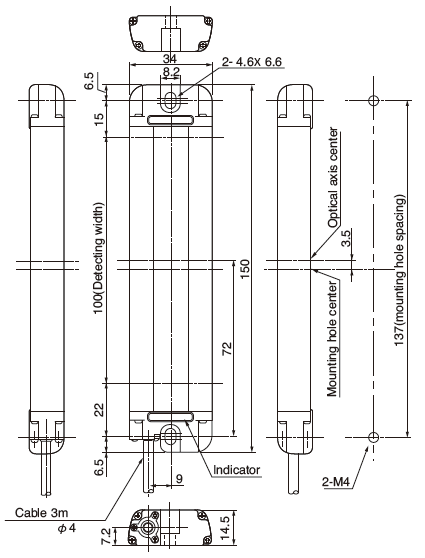

SSC-T815
SSC-T835
When installing the main unit of the sensor, the tightening torque has to be 0.6N m or less.
Semiconductor
Robot hand detection
Detection of Robot hand with glass substrate on it in order to stopping XY stage movement.
Metal processing

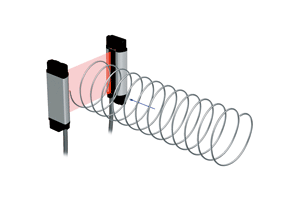

Detection of passage of coils
Sequential Array Scanning wide area sensor capable of detecting coils, which do not have enough mass to block light.
Metal processing

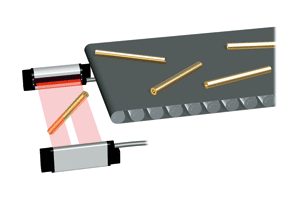

Detection of falling processed works
Objects with irregular forms falling at arbitrary points and then detected with Sequential Array Scanning wide area sensor.
Metal processing

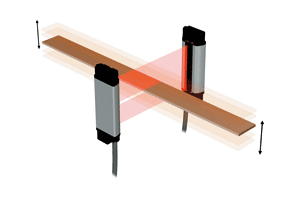

Detection of Passage of thin objects
Thin objects are detected by Sequential Array Scanning method.
Metal processing

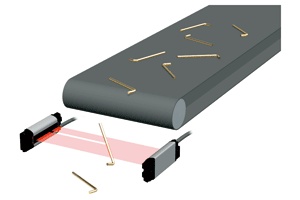

Detection of objects falling in inconstant points
Detecting irregular shaped objects falling in inconstant points.
Metal processing

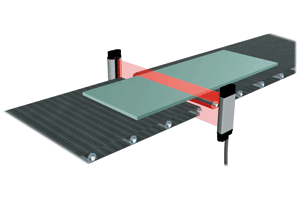

Thin objects detection
Plate-shaped work passing in arbitrary area is detected with Sequential Array Scanning wide area sensor. Detection is unaffected by plate width.
Automobile
Detection of engine head covers
Light curtains provide reliable detection of objects in different shapes otherwise unachievable with a single-axis sensor.
Packaging/Food/Drug
Detection of shampoo bottles
Shampoo bottles positioned before packaging. Light curtain achieving stable detection regardless of bottle shape variation.
