SS-CH Series
Separate optical axis output light curtain sensors
- Slim light curtain sensor SS10/20/40 with separate outputs for individual light axes
- Ideal for height/size checking of passing objects
- SS10-CH : 17mm
- SS20-CH : 32mm
- SS40-CH : 52mm
(Rough guidelines for detectable size difference)
SS-CH Series Lineups
| Model | Type | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Detecting object (dia.) | Beam interval (mm) | Detecting width (mm) | Control output | Download |
|---|---|---|---|---|---|---|---|---|---|
SS10-T16-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 150 | Serial | ||
|
SS10-T24-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 230 | Serial | ||
|
SS10-T32-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 310 | Serial | ||
|
SS10-T48-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 470 | Serial | ||
|
SS10-T64-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 630 | Serial | ||
|
SS10-T80-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 790 | Serial | ||
|
SS10-T96-CH
|
Light curtain sensor | Through beam | 2000 | 17.0 | 10.0 | 950 | Serial | ||
|
SS20-T8-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 140 | Serial | ||
|
SS20-T16-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 300 | Serial | ||
|
SS20-T24-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 460 | Serial | ||
|
SS20-T32-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 620 | Serial | ||
|
SS20-T40-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 780 | Serial | ||
|
SS20-T48-CH
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.0 | 940 | Serial | ||
|
SS40-T4-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 120 | Serial | ||
|
SS40-T8-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 280 | Serial | ||
|
SS40-T12-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 440 | Serial | ||
|
SS40-T16-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 600 | Serial | ||
|
SS40-T20-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 760 | Serial | ||
|
SS40-T24-CH
|
Light curtain sensor | Through beam | 7000 | 52.0 | 40.0 | 920 | Serial |

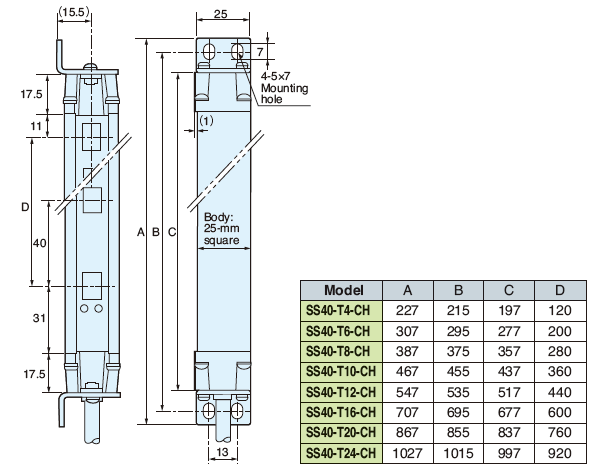

Dimension
SS40-CH series
(The figure below is an example of the receiver. The transmitter is attached with the mounting bracket on the opposite side.)

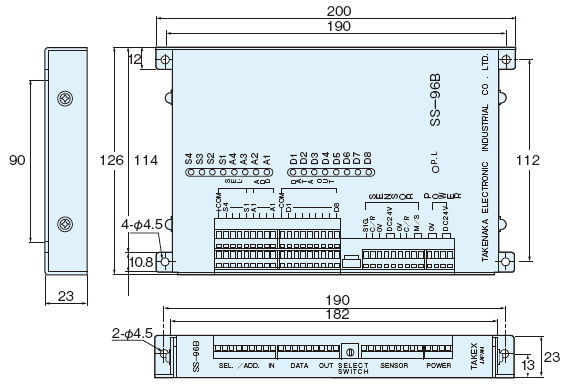

Conversion Board
Automatic assembly
Checking the shape of coated object
Height of coated object determined by separate outputs for light axes.
Metal processing

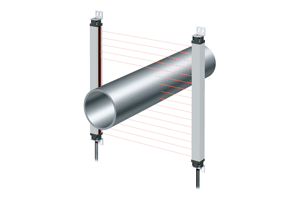

Measurement of outer diameter of pipes
Light curtain with separate outputs for each optical axis is used for the purpose of measuring outer diameter of sorting pipes.
