SSX20 series
Ultra-thin Light Curtain Sensor

  • Innovative cross beam detection in a long body and fine pitch pattern
    • Light curtain sensor of only 12 mm thickness.
    • Switchable between parallel beam and cross beam modes.
    • Output selectable as NPN / PNP type.
    • A lineup of eight models with detection widths from 160 mm to 720 mm.
Standard・Official Approval
  • CE Mark

SSX20 series Lineups

Model Type Detection method Detecting distance Min (mm) Detecting distance (mm) Detecting object (dia.) Beam interval (mm) Detecting width (mm) Control output Download
SSX20-T160
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 160 NPN
PNP
SSX20-T240
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 240 NPN
PNP
SSX20-T320
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 320 NPN
PNP
SSX20-T400
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 400 NPN
PNP
SSX20-T480
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 480 NPN
PNP
SSX20-T560
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 560 NPN
PNP
SSX20-T640
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 640 NPN
PNP
SSX20-T720
仕様を見る
Light curtain sensor Through beam - 4000 15.0 20.0 720 NPN
PNP

Feature

Light curtain sensor of only 12 mm thickness

Slim design for easy installationSlim design for easy installation
Small 12 mm × 30 mm dimensions enable variety of applications.
The cable exit is specifically designed to neatly fit with other equipment.
SSX20-T160 Actual size
Output selectable as NPN / PNP typeOutput selectable as NPN / PNP type
Output selectable as either NPN or PNP type.
Enhanced robustness
Robust aluminum sensor housing with a die-cast zinc mounting.
Maximum 1440 mm of detection width by stacking two sensors
By stacking two sensors, the mutual interference prevention function allows the 20 mm pitch and a 1,440 mm wide detection area.
Optical axis pitch of the beams remain 20 mm when two sensors are stacked (Parallel beam mode).

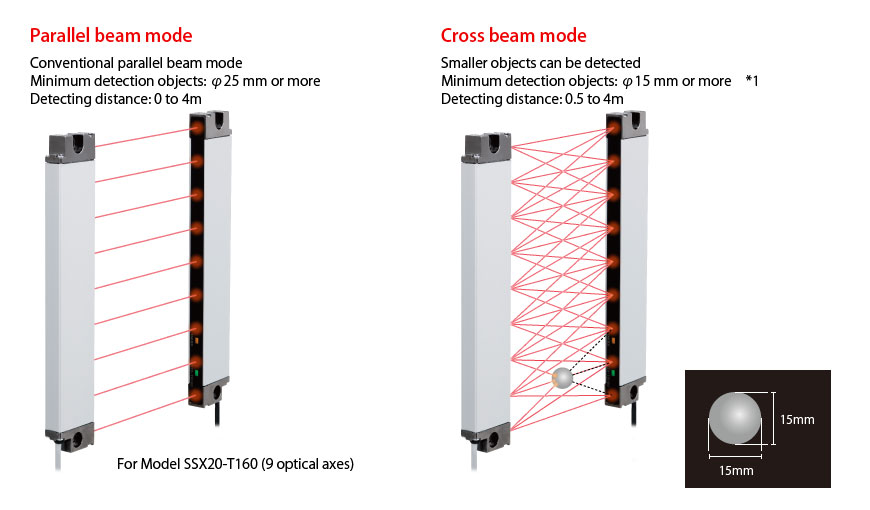

Switchable between parallel beam and cross beam modes
Objects down to 15 mm diameter are detectable even within the 20 mm pitch optical axis interval. *1
Comprehensive lineup

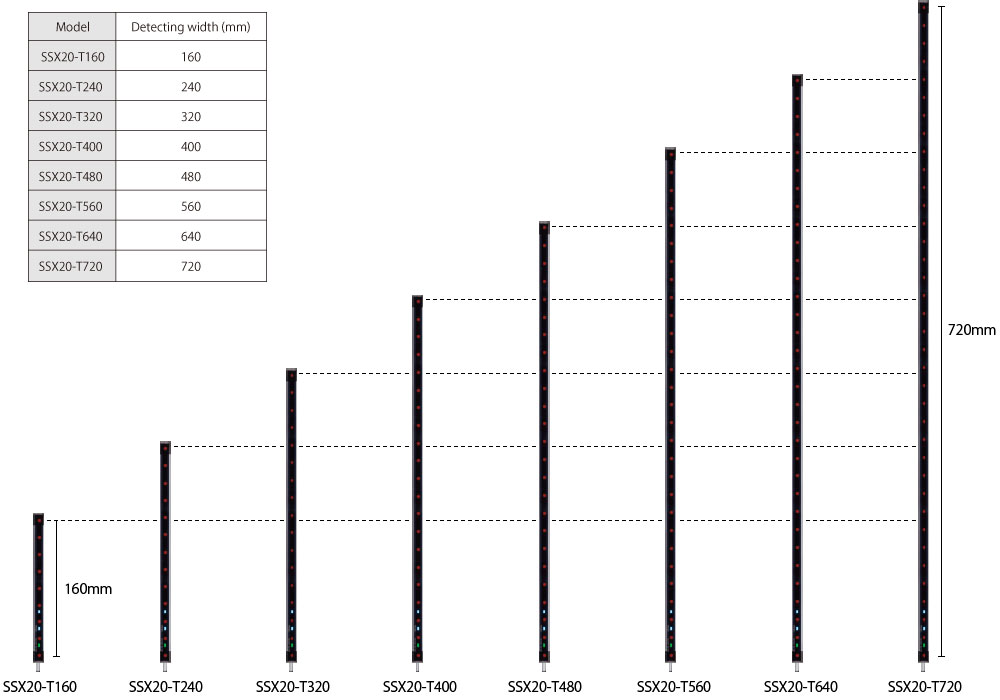

Eight models available for detection widths from 160 mm to 720 mm.

Dimension

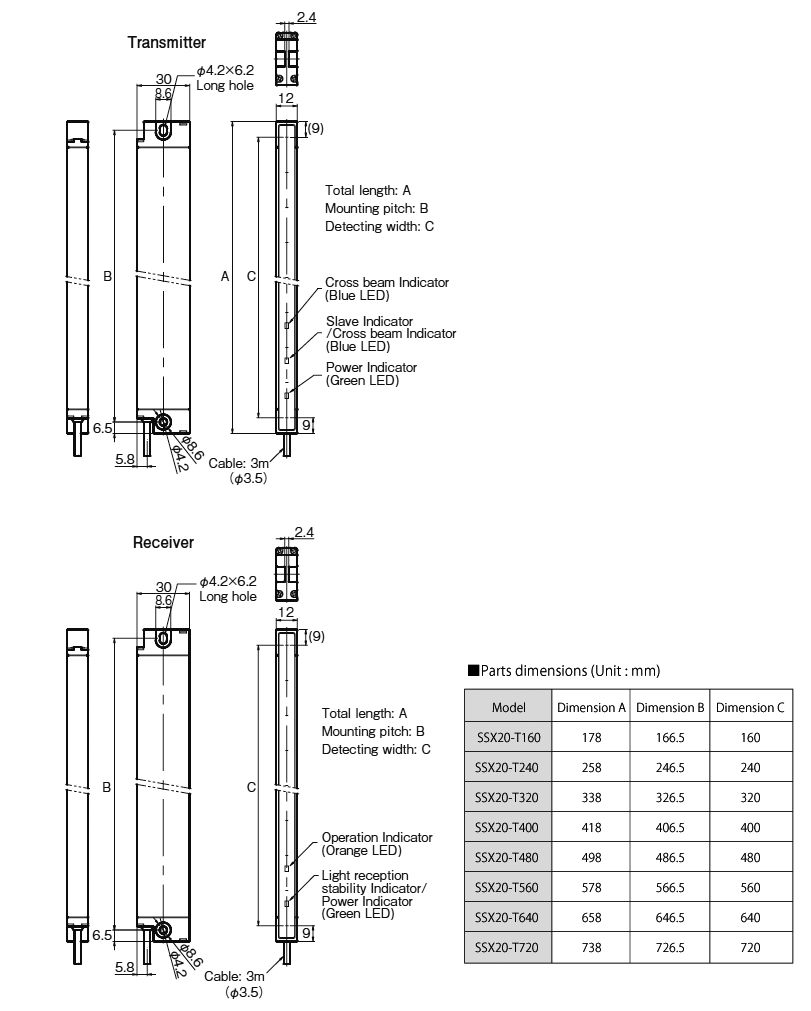

Dimensions (Unit : mm)

Circuit

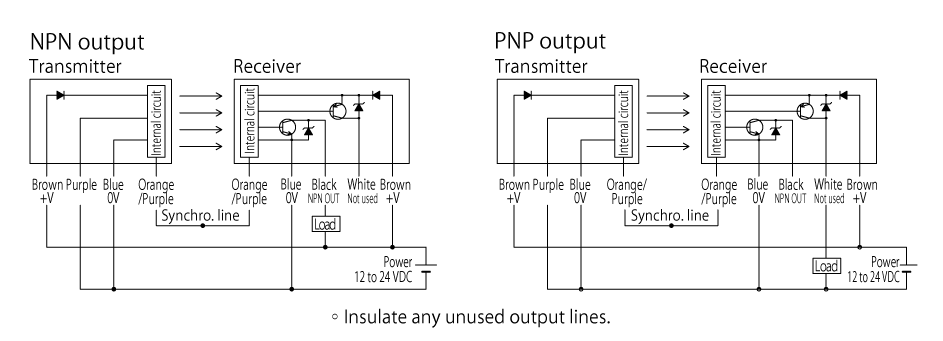

Parallel beam mode

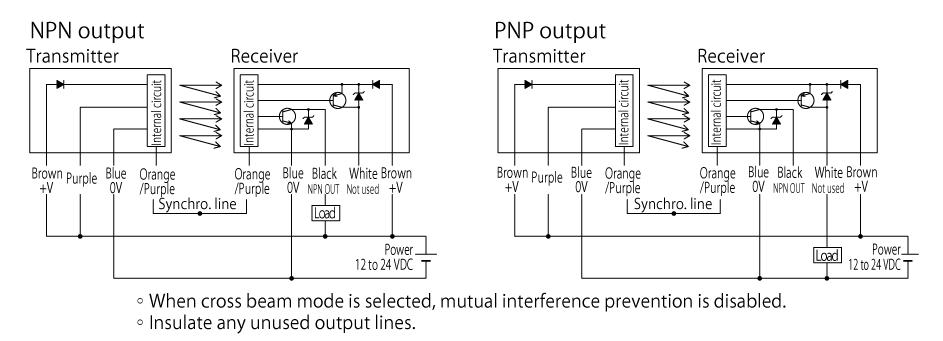

Cross beam mode

Metal processing

In the cross beam mode, moving objects at random orientation

In the cross beam mode, moving objects at random orientation can be detected down to 15 mm diameter. *1
(*1 Use the area 3/4 of the center between the transmitter and the receiver as an effective detection area to detect opaque objects 15 mm or more in diameter.)

Delivery/Transportation

Leading edge detection of various height and types of object.

Leading edge detection of various height and types of object.
