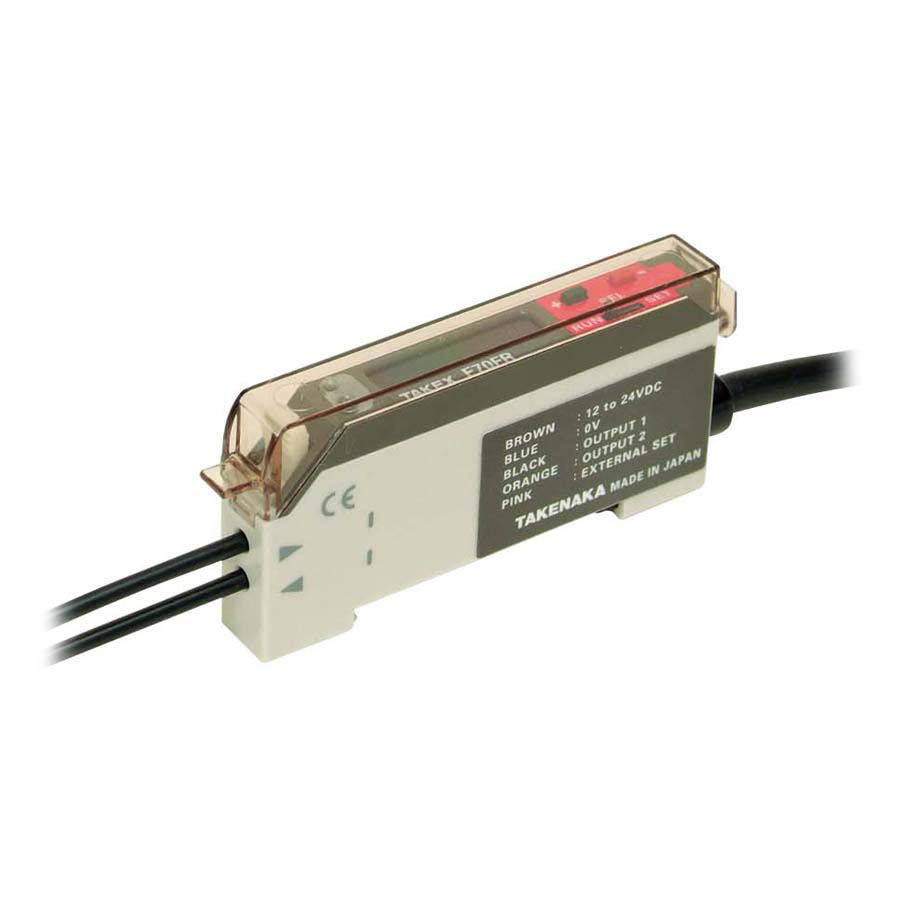

F70F Series
Window comparator Fiber optic sensors

  • Specialized window comparator function suitable for tolerance assessment or similar works.
  • Zero-point setting with a single touch of the key!
    The upper and lower limits of the tolerance can be set independently.
  • User friendly positioning with a through beam fiber optic cable for detecting the height of a work.
Standard・Official Approval
  • CE Mark

F70F Series Lineups

Model Power supply Control output Operation mode Light source Response time (ms) Connection Use application Download
F70FR
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Red LED 0.840
0.930
Attached cable semiconductor / LCD
precision instruments / electronic components

Feature

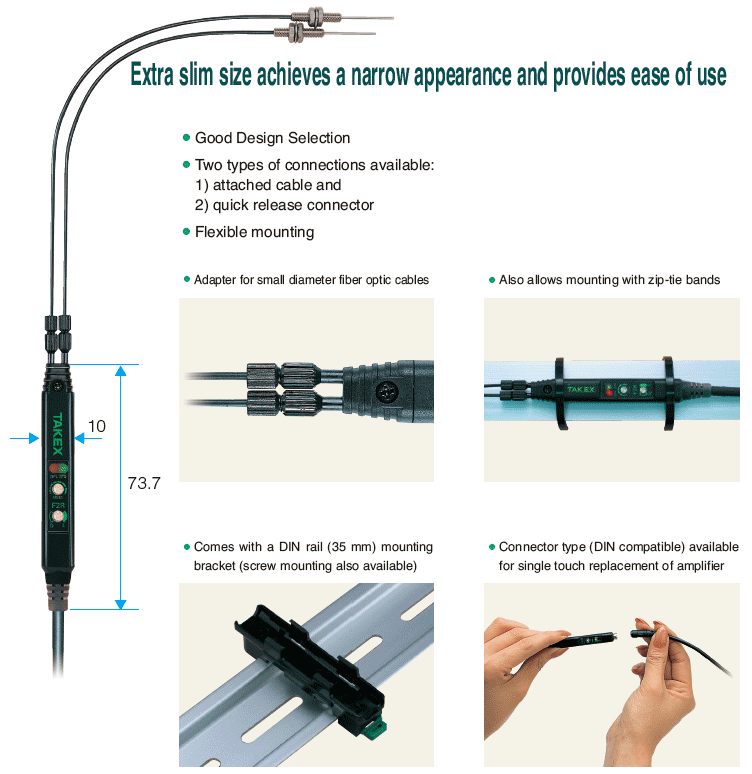

Extra slim size achieves a narrow appearance and provides ease of use

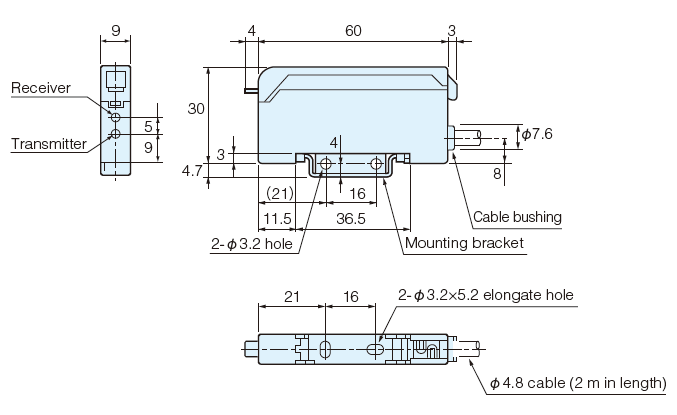

Dimension

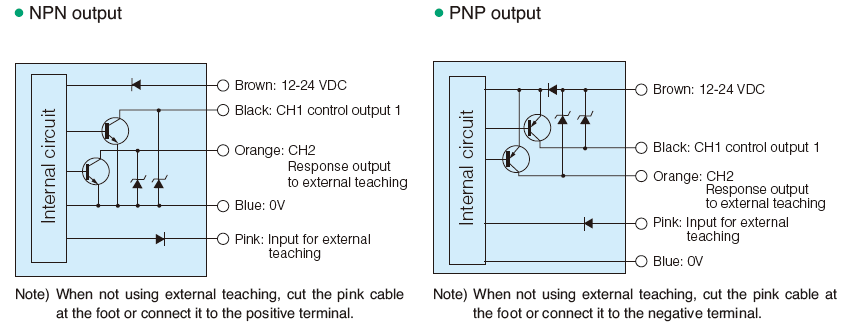

Circuit

In the condition of load short circuit or overload, the output transistor turns off. Check the load condition before restarting.

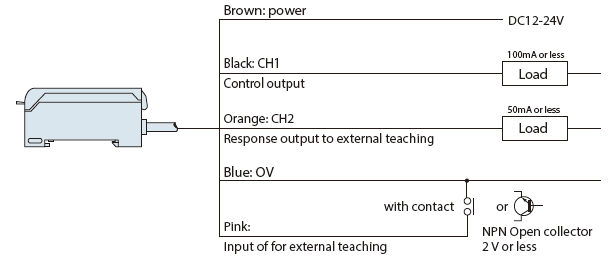

Connection
NPN output

To extend the cable, use wires of at least 0.3 mm2 and limit the length to within 100 m.

Automatic assembly

Outer diameter inspection

Wide area fiber optic cable used in combination with two-output amplifier for diameter inspection.
