F85RN Series

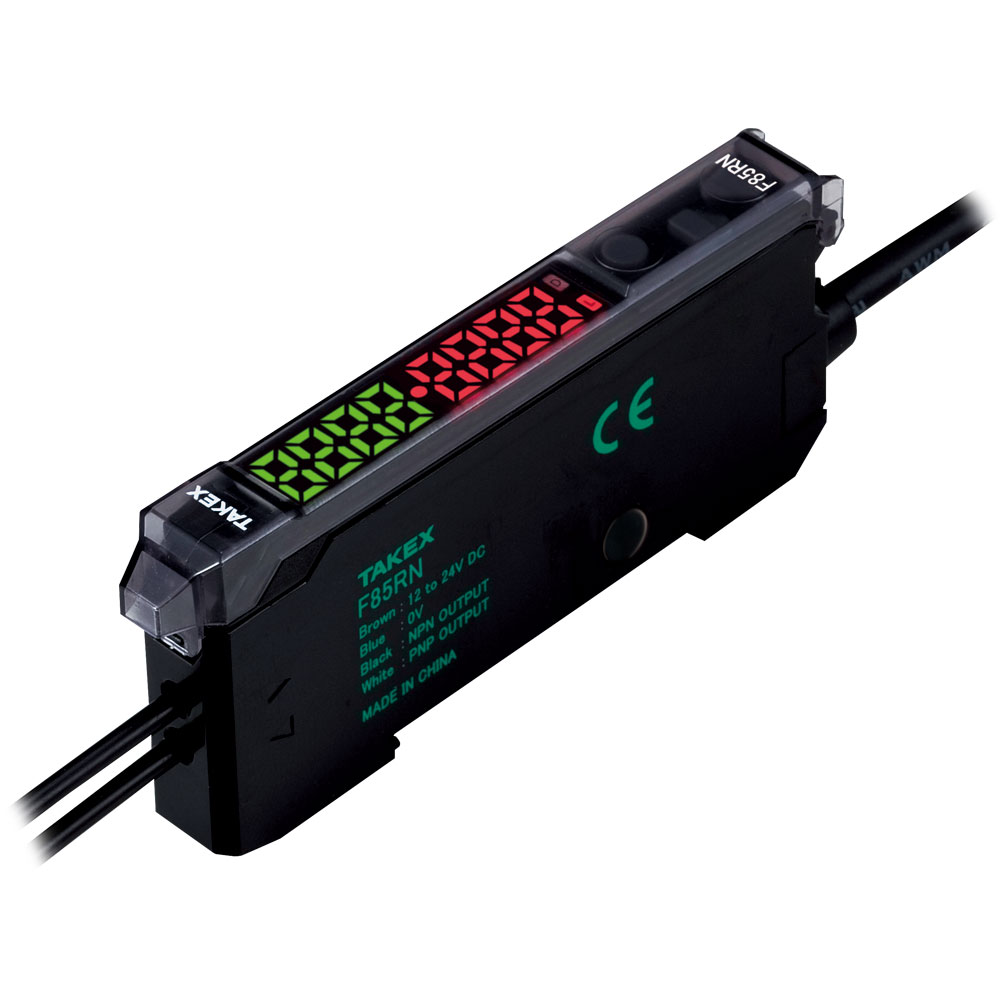

Dual display fiber optic sensor

  • A multi-function sensor of excellent operability
    • NPN / PNP dual output
    • Simple teaching using a single button
    • Large easy-to-read display
    • Mutual interference prevention function
    • Two types of display options available
Standard・Official Approval
  • CE Mark
  • cRUus Mark
  • cULTus LISTED Mark
Download

F85RN Series Lineups

Model Power supply Control output Operation mode Light source Response time (ms) Connection Use application Download
F85RN
仕様を見る
12 - 24VDC NPN
PNP
Dark-ON
Light-ON
Four-element (ALGainP) LED 0.065 - 4.000 Attached cable
F85RNP-J
仕様を見る
12 - 24VDC NPN
PNP
Dark-ON
Light-ON
Four-element (ALGainP) LED 0.065 - 4.000 M8 connector

Feature

User-friendly operability with essential functions

1. Simple teaching using a single button

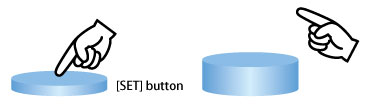

Simple teaching using a single button Simple to sequentially select from four teaching modes using the [SET] button.

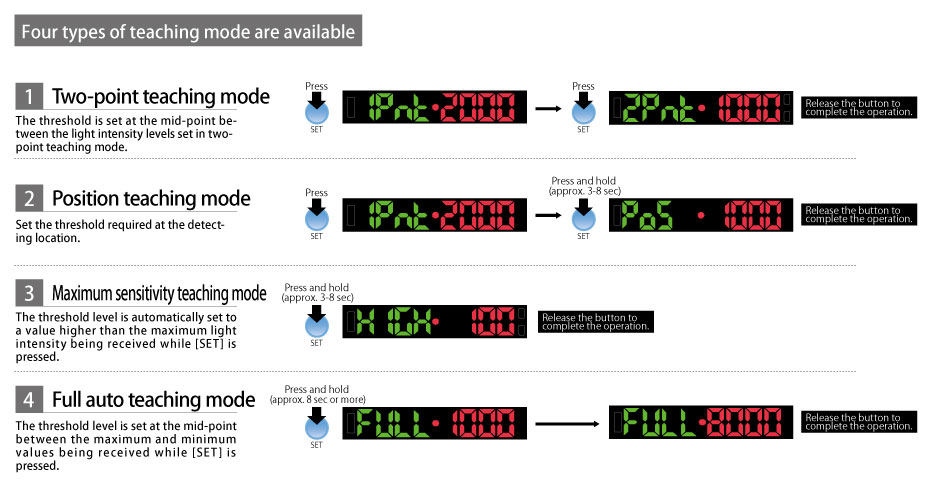

Four types of teaching mode are available
2. Easy to use with a large display and only three operation buttons

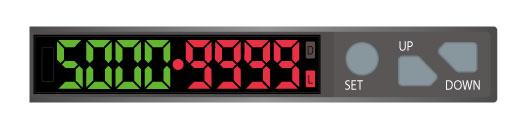

Two large clear 4-digit, 7-segment LED displays and three raised buttons with positive click feedback, making mode setting easy.
Easy to use with a large display and only three operation buttons
3. Mutual interference prevention function

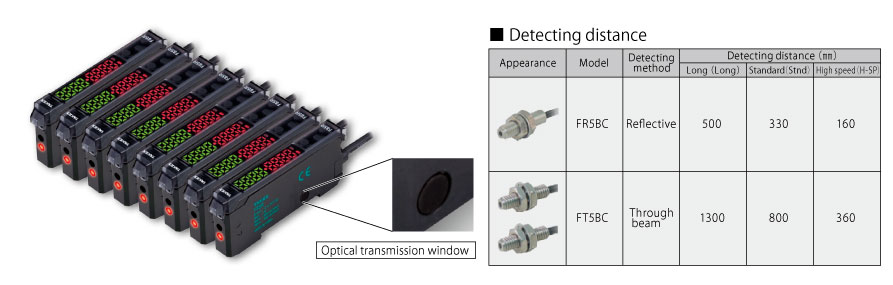

Equipped with an optical transmission type mutual interference prevention function to suppress the interference between up to eight units. (Standard and Long mode)
Mutual interference prevention function

Useful functions

4. Two types of display options available

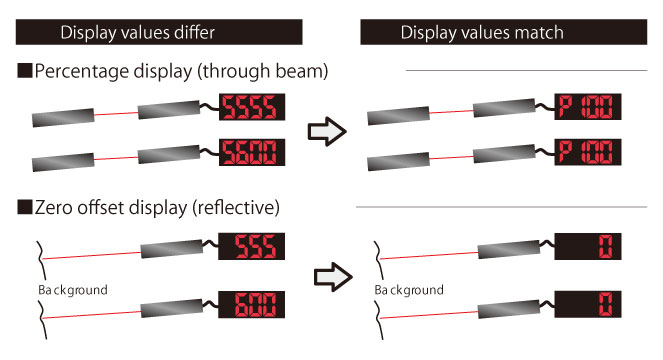

Light intensity received by two or more sensors can be easily read and compared by two displacement display options: Percentage for Through Beam type, and Zero Offset for Reflective type.

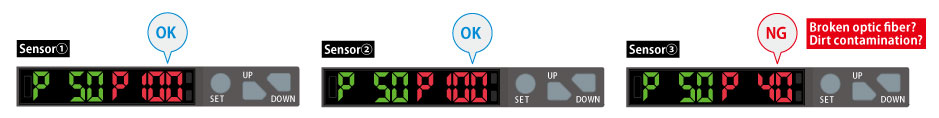

Detection allowance can be checked by comparing the percentage values of each sensor operation through the displacement display.
(The below examples show deterioration in detection allowance of Through Beam type.)
5. Light source intensity adjustment (Automatic/Manual)

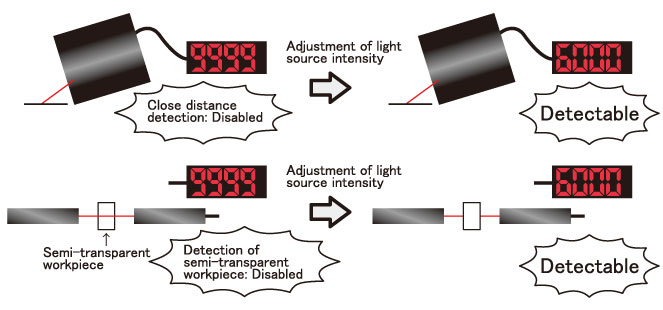

Light intensity is adjusted to an optimum level for detection among 15 stages (13 stages at high-speed mode).
6. NPN/PNP dual output
As both connection types for the control output are available, configuring the output as PNP or NPN is not necessary.
7. An energy-saving design and ECO mode realize low power consumption
24V normal mode : 770 mW or less / ECO mode: 600 mW or less
8. Manuals can be viewed on smartphones or tablets

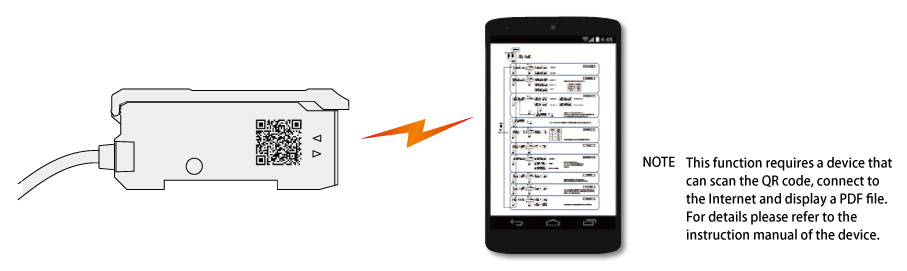

The sensor comes with a QR code label and a quick reference guide is available on your smartphone or tablet (Japanese, English, Chinese, and Korean versions available). This is useful when checking the manual or changing the settings at installation site.
Manuals can be viewed on smartphones or tablets

Dimension

F85RN

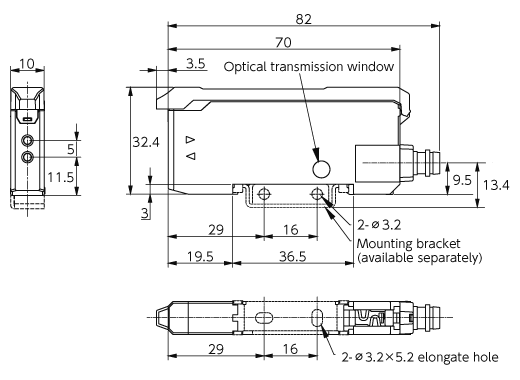

F85RNP-J

Circuit

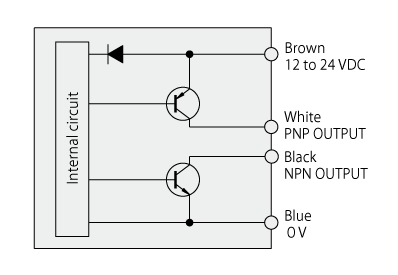

F85RN

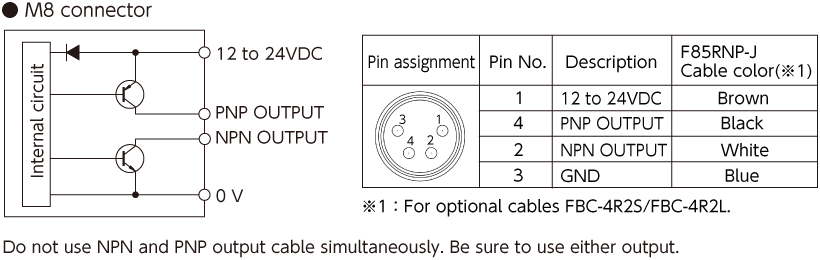

F85RNP-J

Semiconductor

Detection of object on IC tester

Passage of flat ICs checked.

Semiconductor

Detection of lead frames

Detecting lead frames from their bottoms, with a thin head of 2mm.Fiber optic sensor.

Electronic Component Mounting

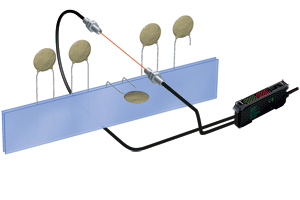

Detection of defects in capacitors

Bends above taping detected with through beam fiber optic cable.

Automatic assembly

Work detection

Detection of workpiece at the chute section of parts feeders.
The detection status is presented on the dual display of the fiber optic sensor.

Textile

Loop control of string materials

Detecting threads or fibers across two points (upper/lower) to control the tension and the speed.

Semiconductor

Detection of wafers in carrier

Wafer edges detected.

Metal processing

Detection of crack in bearing bushings

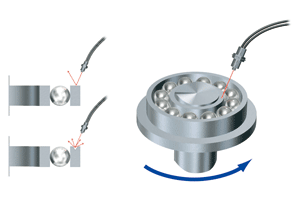

Surface cracks detected by taking advantage of irregular light reflection on cracks.

Textile

Detection of thread dyeing unevenness

Inconsistent dyeing detected in the dyeing process. High resolution of F70R for arbitrary setting.

Packaging/Food/Drug

Label detection

Integrated U-shaped fiber optic cable available for detecting labels for timing operation of labeler.

Packaging/Food/Drug

Detection of level of liquid in tank

A fiber optic fiber cable coated with chemical-resistant PFA can be placed in a fluid tank, to enable detection of the liquid surface level.

Option

End unit

オプション写真

FA7EU

dimLink
Description DIN rail mounting stopper

Mounting bracket

オプション写真

AC-BF3

dimLink
Type Mounting bracket

Cable with connector

オプション写真

FBC-4R2S

dimLink
Application model For M8 connector type
Shape Straight with 4 cores cable, 2 m (transmitter/receiver)
Cable length 2m
オプション写真

FBC-4R2L

dimLink
Description Cord with M8 connector
Application model For M8 connector type
Shape Angled with 4 cores cable, 2 m (transmitter/receiver)
Cable length 2m
