F70K Series
Simplified wiring connection type Fiber optic sensors

F70K Series
  • Digital display
  • Auto sensitivity setting
  • Manual sensitivity setting
  • The "new" wire saving connection system compatible with major fiber amplifier models
Standard・Official Approval
  • CE Mark
  • cULTus LISTED Mark

F70K Series Lineups

Model Power supply Control output Operation mode Light source Response time (ms) Connection Use application Download
F70RK
仕様を見る 		12-24VDC NPN Dark-ON
Light-ON 		Red LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components
F70GK
仕様を見る 		12-24VDC NPN Dark-ON
Light-ON 		Green LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components
F70BK
仕様を見る 		12-24VDC NPN Dark-ON
Light-ON 		Blue LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components
F70RKPN
仕様を見る 		12-24VDC PNP Dark-ON
Light-ON 		Red LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components
F70GKPN
仕様を見る 		12-24VDC PNP Dark-ON
Light-ON 		Green LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components
F70BKPN
仕様を見る 		12-24VDC PNP Dark-ON
Light-ON 		Blue LED 0.500
0.600 		Wire saving connector type semiconductor / LCD
precision instruments / electronic components

Feature

Convenient feature

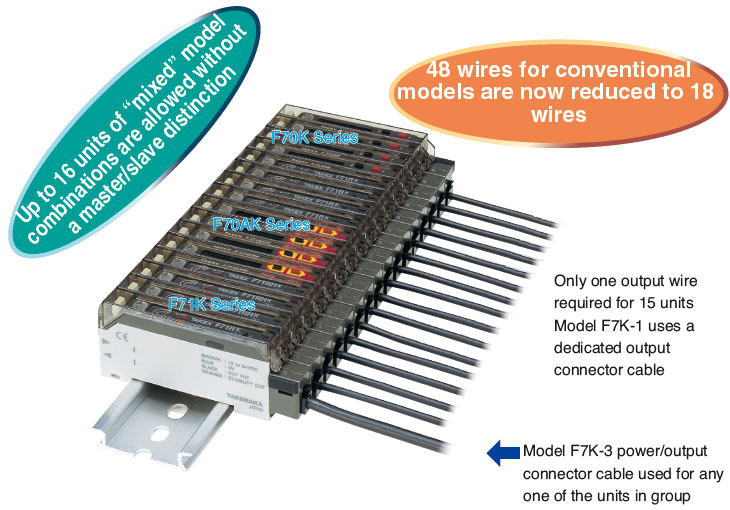

Single power supply feeds up to 16 units

Power can be supplied to all units in one group (up to 16 units) by simply feeding power supply to any single unit through the power/output connector.
Stand alone use is also available.

Up to 16 units of "mixed" model combinations are allowed without a master/slave distinction

Innovative mini connector employed

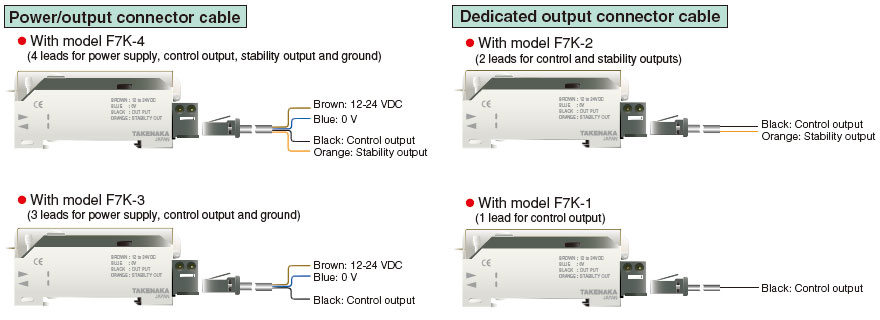

4 types of connector cables available according to input/output function required

Innovative mini connector employed

Replacement of connector cablesReplacement of connector cables simply by detaching and attaching connectors without moving sensors

Dimension

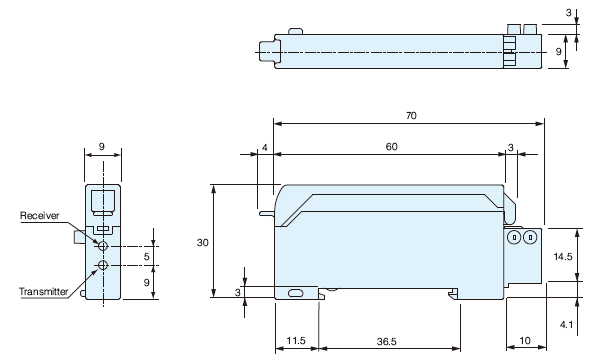

Amplifier

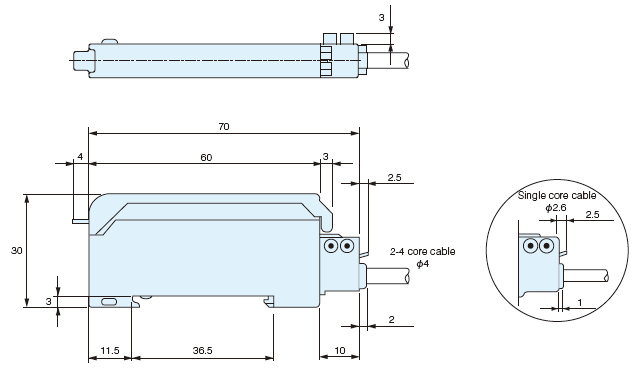

With dedicated connector cable attached

Circuit

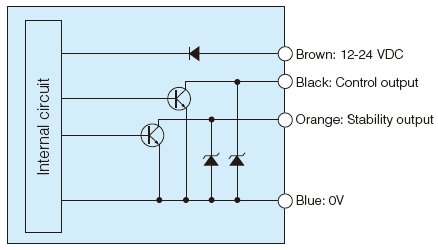

NPN

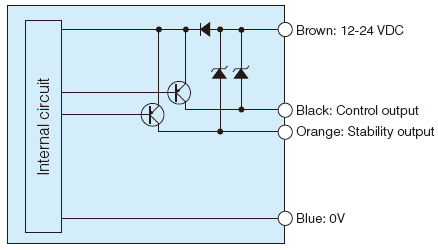

PNP

In the condition of load short circuit or overload, the output transistor turns off. Check the load condition before restarting.

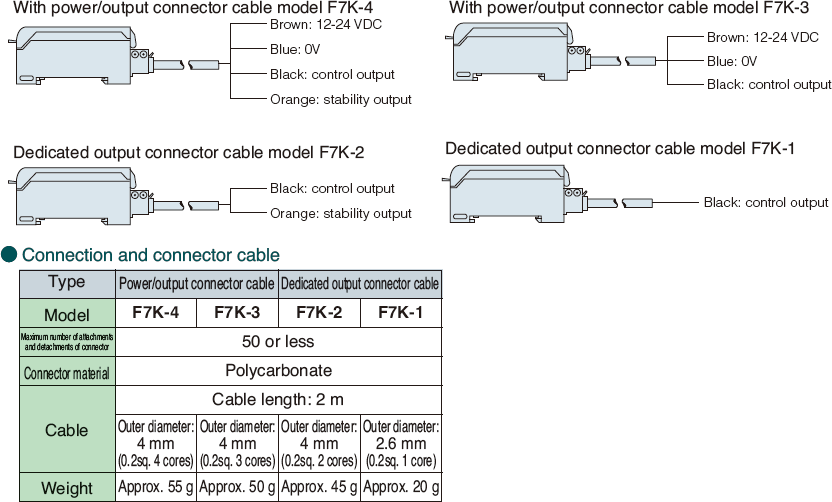

Connection diagram

  • For simplified wiring, use the dedicated connector cable which is separately sold.
  • The connector cable can be attached or detached as amplifiers are joined together without sliding them to either side.

Option

Cable with connector

オプション写真

Dedicated connector cableF7K-4
Description Power/output connector cable
Description 4 leads : power supply, 0V, control output, stability output
Maximum number of attachments and detachments of connector 50 or less
Connector material Polycarbonate
Cable Cable length : 2 m
Outer diameter : 4 mm (0.2sq. 4 cores)
Weight Approx. 55g
オプション写真

Dedicated connector cableF7K-3
Description Power/output connector cable
Description 3 leads : power supply, 0V, control output
Maximum number of attachments and detachments of connector 50 or less
Connector material Polycarbonate
Cable Cable length : 2 m
Outer diameter : 4 mm (0.2sq. 3 cores)
Weight Approx. 50g
オプション写真

Dedicated connector cableF7K-2
Description Dedicated output connector cable
Description 2 leads : control output, stability output
Maximum number of attachments and detachments of connector 50 or less
Connector material Polycarbonate
Cable Cable length : 2 m
Outer diameter : 4 mm (0.2sq. 2 cores)
Weight Approx. 45g
オプション写真

Dedicated connector cableF7K-1
Description Dedicated output connector cable
Description 1 lead : control output
Maximum number of attachments and detachments of connector 50 or less
Connector material Polycarbonate
Cable Cable length : 2 m
Outer diameter : 2.6 mm (0.2sq. 1 core)
Weight Approx. 20g
