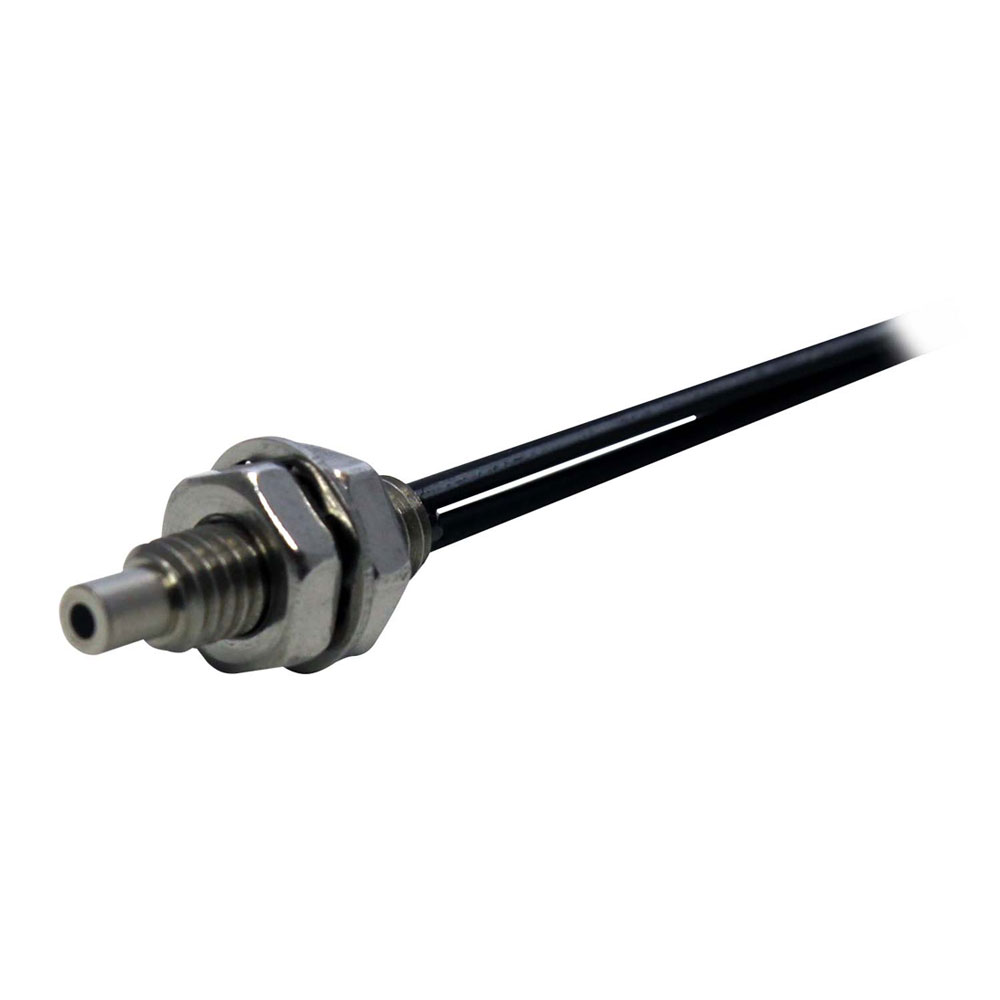

FX84BC
Coaxial reflective type
M4 threaded, φ2.5mm coaxial with 1 transmitting and 4 receiving fibers
FX84BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FX84BC
|
Coaxial reflective | Ordinary temperature | Threaded | M4 | 300 | Coaxial with 1 transmitting and 4 receiving | 2 (free-cutting) |
F2R
F70 F80R F85RN |

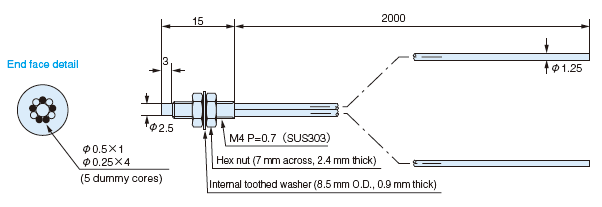

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
Semiconductor
Detection of pitch holes on IC frame
Detecting even a small pitch hole when combined with a lens unit.Fiber optic sensor
Semiconductor
Wafer notch detection
Coaxial reflective type fiber cable with lens unit detecting small spot for notch detection.
Consumer electronics/OA
Detection of double feed of CDs
Detected from the side with small spot beam.
