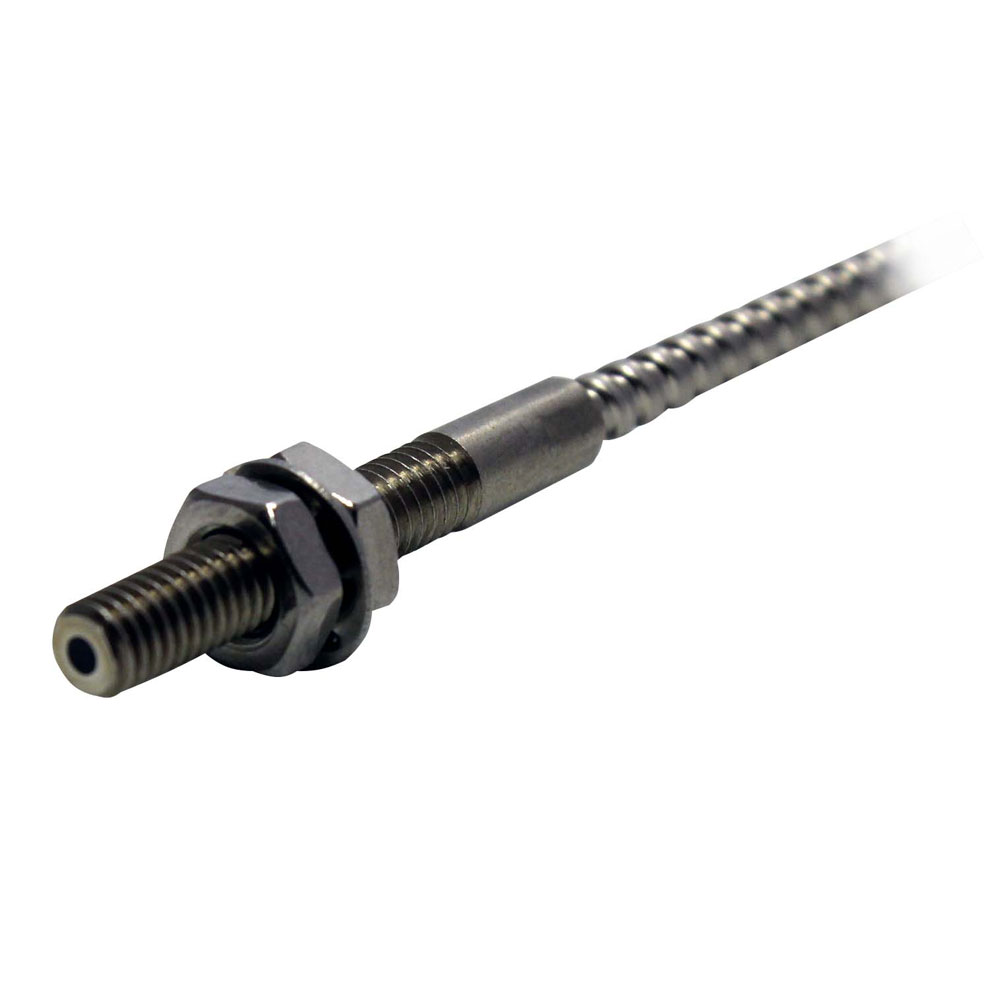

GTHN710V
Through Beam type
M4 threaded vacuum proof through beam (for flange connection)
GTHN710V Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
GTHN710V
|
Through beam | Vacuum proof | Threaded | M4 | 550 | Flange connection vacuum proof | 1 |
F70
F71 F80R F85RN |

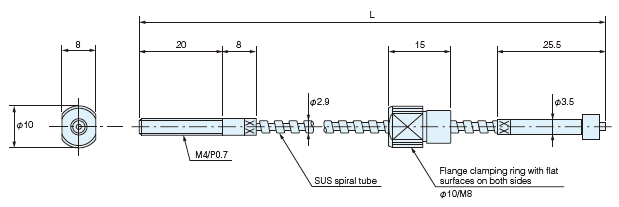

Dimension
Semiconductor
Wafer detection
Heat resistant proof vacuum through beam fiber optic cable detecting wafer in a vacuum tank.
