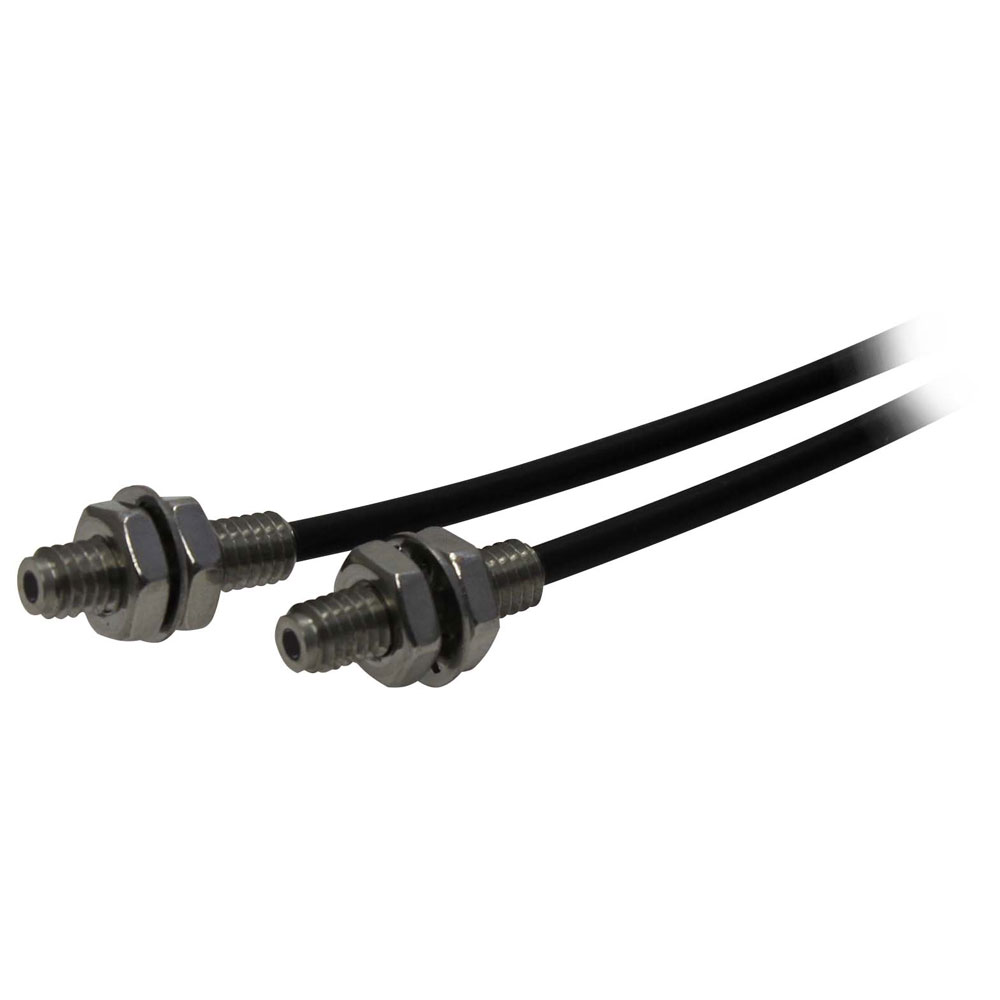

FT105BC
Through Beam type
M4 threaded, long distance detection
FT105BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FT105BC
|
Through beam | Ordinary temperature | Threaded | M4 | 2200 | 2 (free-cutting) |
F2R
F70 F71 F80R F85RN |

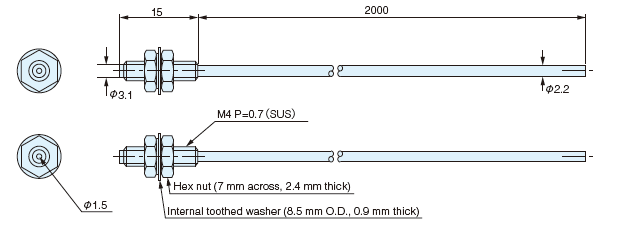

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
Semiconductor
Detection of LCD board in vacuum tank
Detection with general purpose fiber optic cable of regular reflection through view port.
