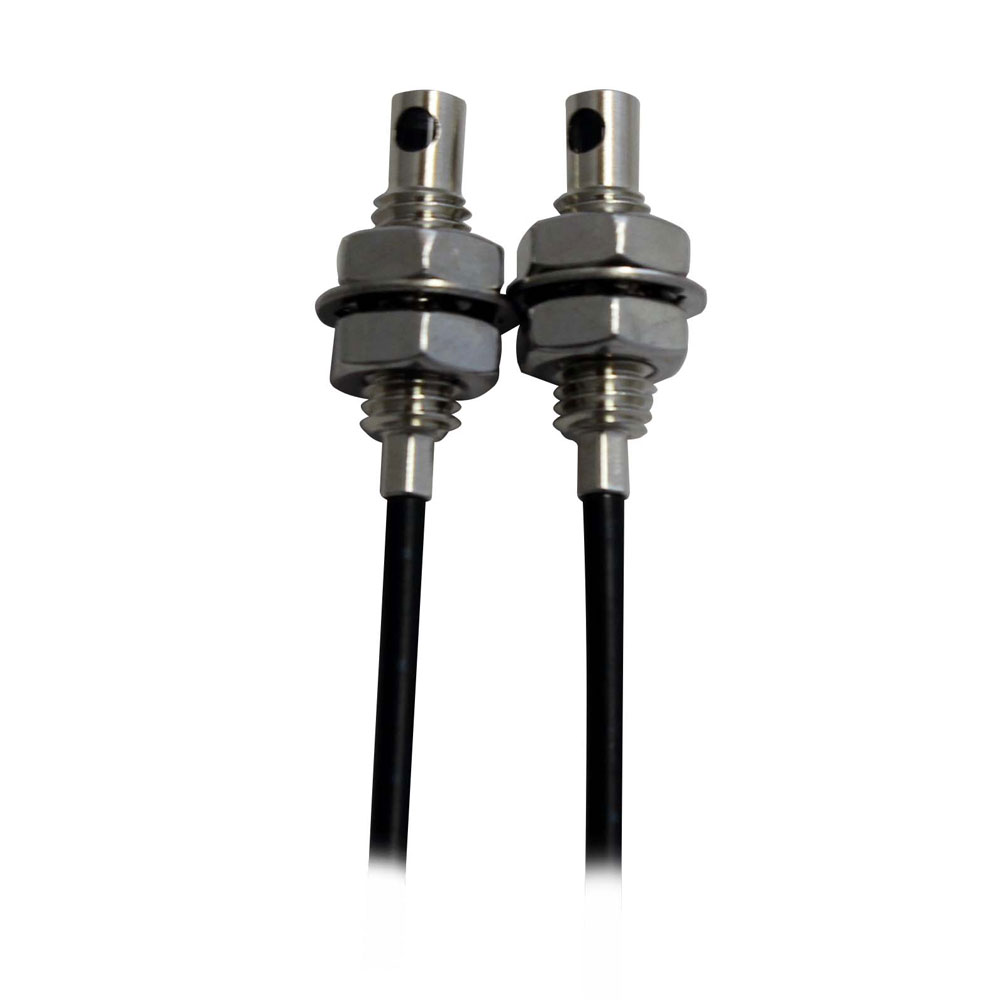

FTV7BC
Through Beam type

φ4 head side view with φ2.3 window, M5 threaded

FTV7BC Lineups

Model Detection method Environmental feature Tip appearance Tip size Detecting distance min (mm) Detecting distance (mm) Feature Cable length (m) Applicable amplifer Download
FTV7BC
仕様を見る
Through beam Ordinary temperature Threaded M5 1000 Side view
2 (free-cutting) F2R
F70
F71
F80R
F85RN

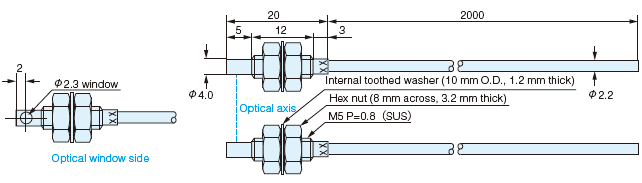

Dimension

The tightening torque for the threaded part should be up to 0.8 N m.

Semiconductor

Detection of protrusion of wafers

Protrusion of wafer detection.
