GTH510J
Through Beam type
Heat resistance 350 ?C with SUS spiral tube cover
GTH510J Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
GTH510J
|
Through beam | Heat resistant | Threaded | M4 | 740 | Heat resistant | 1 |
F70
F71 F80R F85RN |

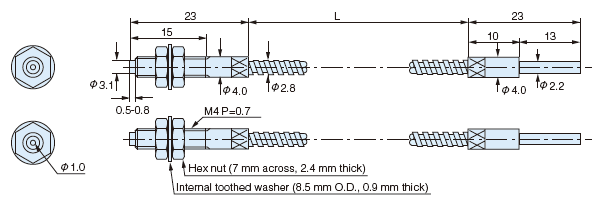

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
Steel/Ceramic
Detection of glass plate at outlet of furnace
Heat resistant through beam fiber optic cable with lens unit attached to accomplish long distance detection.
- Heat-resistant fiber optic sensor GTH505J FA514
- Heat-resistant fiber optic sensor GTH510J FA514
- Heat-resistant fiber optic sensor GTH520J FA514
