PU Series
U-Shaped Embedded Amplifier Photo Sensors
- No optical axis alignment necessary
- Ideal for checking the position of stacker cranes in an automatic warehouse
- Standard・Official Approval
-
PU Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
PU5
|
12-24VDC | Through beam (U-shaped) | 5.00 | NPN |
Dark on
Light on |
Infrared LED | IP67 | Attached cable | ||
|
PU10
|
12-24VDC | Through beam (U-shaped) | 10.00 | NPN |
Dark on
Light on |
Infrared LED | IP67 | Attached cable |
Dimension

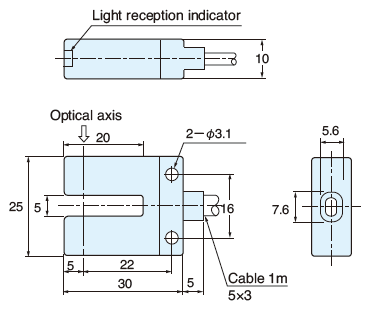

PU5

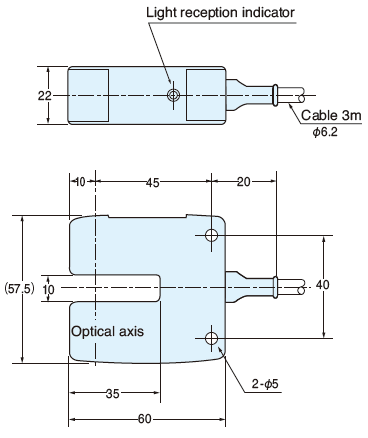

PU10
Circuit
NPN type

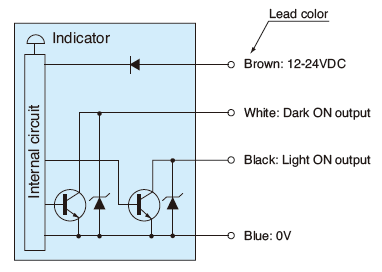

PU5
*Insulate any unused output lead.
Current output
Voltage output

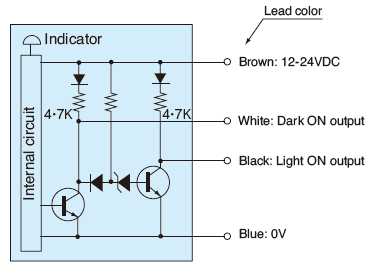

PU10
*Insulate any unused output lead.
Printing
Sensor for counting number of rotations
Holes in rotating disk detected for counting number of rotations or measuring speed (RPM).
