DL Series
Background suppression photo sensors
- Long distance 1 m, 2 m
- Terminal block offering fully open space for wiring
- Standard・Official Approval
-
DL Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
DL-S100TC
|
12-24VDC | Fixed field reflective | 200.00 | 1000.00 |
NPN
PNP |
Dark on
Light on |
Infrared LED | IP65 | ||
|
DL-S200TC
|
12-24VDC | Fixed field reflective | 200.00 | 2000.00 |
NPN
PNP |
Dark on
Light on |
Infrared LED | IP65 | ||
|
DL-S100P
|
24-240VAC/DC | Fixed field reflective | 200.00 | 1000.00 | Relay |
Dark on
Light on |
Infrared LED | IP65 | ||
|
DL-S200P
|
24-240VAC/DC | Fixed field reflective | 200.00 | 2000.00 | Relay |
Dark on
Light on |
Infrared LED | IP65 |

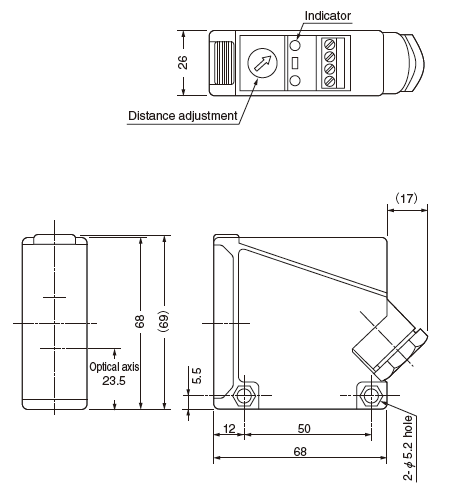

Dimension
All models

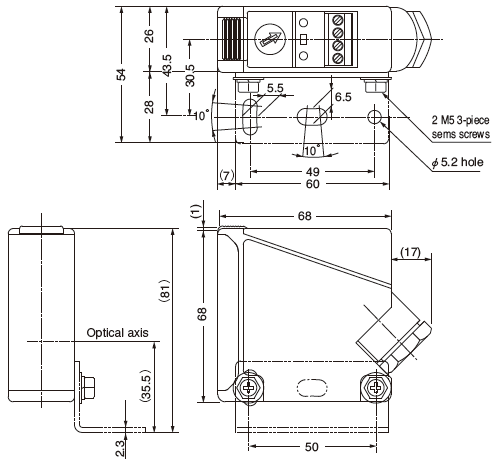

With mounting bracket provided attached
Circuit

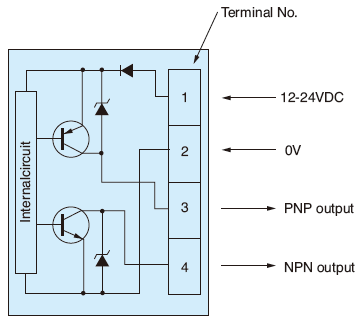

DL-S100TC
DL-S200TC

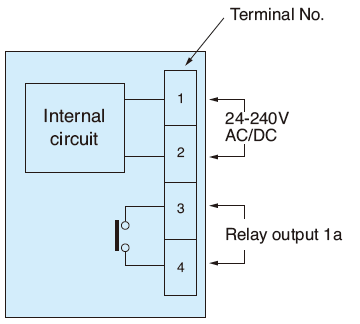

DL-S100P
DL-S200P
Delivery/Transportation
Detection of approaching train
Detecting a train approaching the station and activating an alert announcement and video monitors.
