GR Series
LED Type Mark sensor
- Generic type with LED
- IP67 rated housing filled with resin allows washing together with line equipment.
- Ultraviolet luminescence mark sensor Model: GR12UVS
Ideal for detection of hidden or fluorescent marks
- Standard・Official Approval
-
GR Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
GR12RSN
|
12-24VDC | Convergent reflective | 12.00 | NPN |
Dark on
Light on |
Red LED | IP67 | Attached cable | ||
|
GR12RSN-PN
|
12-24VDC | Convergent reflective | 12.00 | PNP |
Dark on
Light on |
Red LED | IP67 | Attached cable | ||
|
GR12RN
|
12-24VDC | Convergent reflective | 12.00 | NPN |
Dark on
Light on |
Red LED | IP67 | Attached cable | ||
|
GR12RN-PN
|
12-24VDC | Convergent reflective | 12.00 | PNP |
Dark on
Light on |
Red LED | IP67 | Attached cable | ||
|
GR12GSN
|
12-24VDC | Convergent reflective | 12.00 | NPN |
Dark on
Light on |
Green LED | IP67 | Attached cable | ||
|
GR12GSN-PN
|
12-24VDC | Convergent reflective | 12.00 | PNP |
Dark on
Light on |
Green LED | IP67 | Attached cable | ||
|
GR12GN
|
12-24VDC | Convergent reflective | 12.00 | NPN |
Dark on
Light on |
Green LED | IP67 | Attached cable | ||
|
GR12GN-PN
|
12-24VDC | Convergent reflective | 12.00 | PNP |
Dark on
Light on |
Green LED | IP67 | Attached cable | ||
|
GR12BSN
|
12-24VDC | Convergent reflective | 12.00 | NPN |
Dark on
Light on |
Blue LED | IP67 | Attached cable | ||
|
GR12BSN-PN
|
12-24VDC | Convergent reflective | 12.00 | PNP |
Dark on
Light on |
Blue LED | IP67 | Attached cable | ||
|
GR40RN
|
12-24VDC | Convergent reflective | 20.00 | 70.00 | NPN |
Dark on
Light on |
Red LED | IP67 | Attached cable | |
|
GR40RN-PN
|
12-24VDC | Convergent reflective | 20.00 | 70.00 | PNP |
Dark on
Light on |
Red LED | IP67 | Attached cable | |
|
GR60RN
|
12-24VDC | Convergent reflective | 30.00 | 90.00 | NPN |
Dark on
Light on |
Red LED | IP67 | Attached cable | |
|
GR60RN-PN
|
12-24VDC | Convergent reflective | 30.00 | 90.00 | PNP |
Dark on
Light on |
Red LED | IP67 | Attached cable |
Dimension

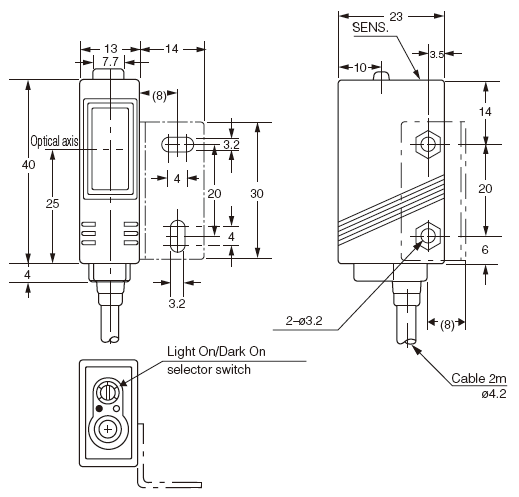

Side-on type
GR12RSN GR40RN
GR12GSN GR60RN
GR12BSN
GR12WSN

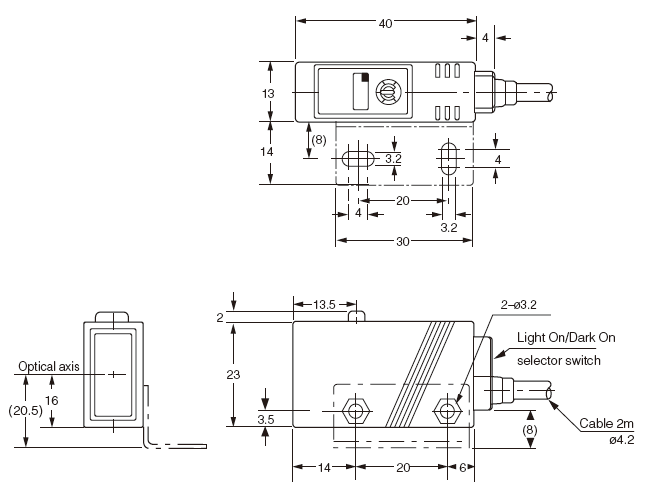

Head-on type
GR12RN
GR12GN

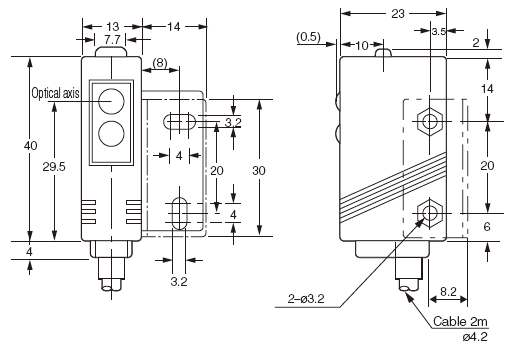

GR12UVS
Circuit

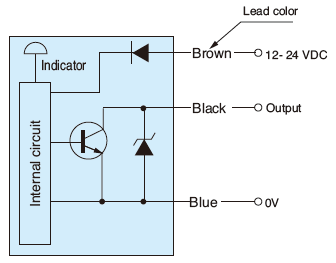

NPN output

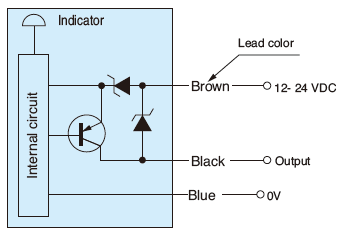

PNP output
- The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
