MU10 Series
U-shaped mark sensor
- For detection of marks on edge of transparent or translucent film
- Both Light ON and Dark ON outputs available
- U-shaped sensor requiring no light axis alignment, eliminates the possibility of misalignment caused by vibration
Distance: 10 mm fixed - Light reception indicator and easy-to-use sensitivity adjustment provided, also excellent resistance to noise
- U-shaped sensor requiring no light axis alignment, eliminates the possibility of misalignment caused by vibration
MU10 Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
MU10N
|
Through beam (U-shaped) | 10.00 |
Voltage output
Current output |
Dark on
Light on |
Green LED | Attached cable |
Feature

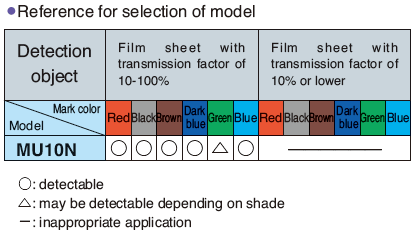

Detection Capability
Detection may not succeed depending on the shading. Be sure to provide samples.

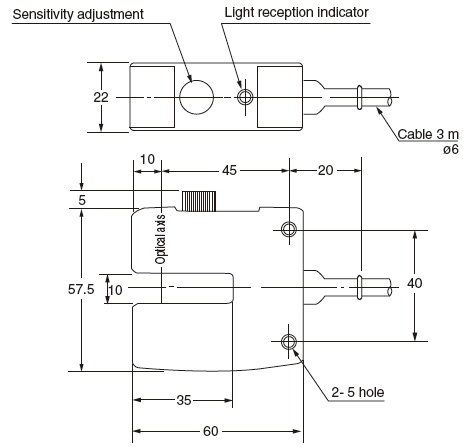

Dimension
Circuit
Packaging/Food/Drug
Detection of register marks
The U-shaped sensor detects register marks on wrapping paper with no need to adjust optical axes.
