NT30F
Long Range and Self Diagnostic Output Embedded Amplifier Photo Sensors

  • Self diagnostic feature
  • High power for reliable detection in adverse environment
  • Long distance detection of up to 30 m
  • DIN compatible zinc die-cast case
    • Receiver provided with "stability alarm output circuit" for monitoring adequate light reception together with indicator and output terminal. Also equipped with monitor output jack for additional reliability in light axis alignment by use of earphone and Light ON/Dark ON selector switch.
    • Transmitter has "check signal input function" and "monitor output function" for overall operation checking of transmitter and receiver.
Standard・Official Approval
  • CE Mark

NT30F Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
NT30F
仕様を見る
Through beam 30000.00 Voltage output
Current output
Dark on
Light on
Infrared LED IP66
NT30FW
仕様を見る
Through beam 30000.00 Voltage output
Current output
Dark on
Light on
Infrared LED IP66

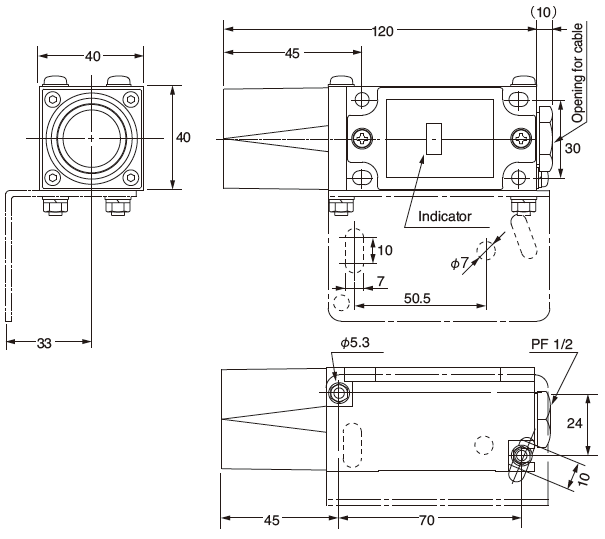

Dimension

For connection, use cables of 9-11 mm in diameter.
Loosen the screws on the lid of the body to remove the lid.
For mounting, use a solid base not subject to vibration.
Fix the sensor and the mounting bracket with two M5 screws.
Use 2 M6 bolts for securing the sensor body (separately prepare bolts, nuts, washers, etc.).
Please use applicable screws with diameter PF1/2 when wiring with a conduit tube.

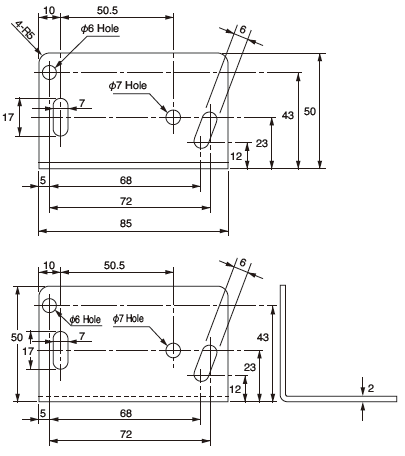

Mounting bracket (accessory)

Plate thickness: 2 mm

Circuit

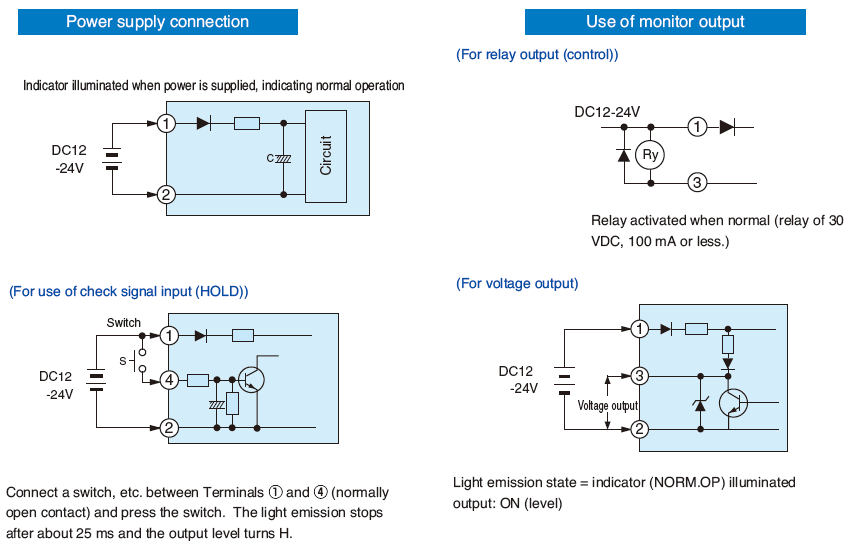

Transmitter

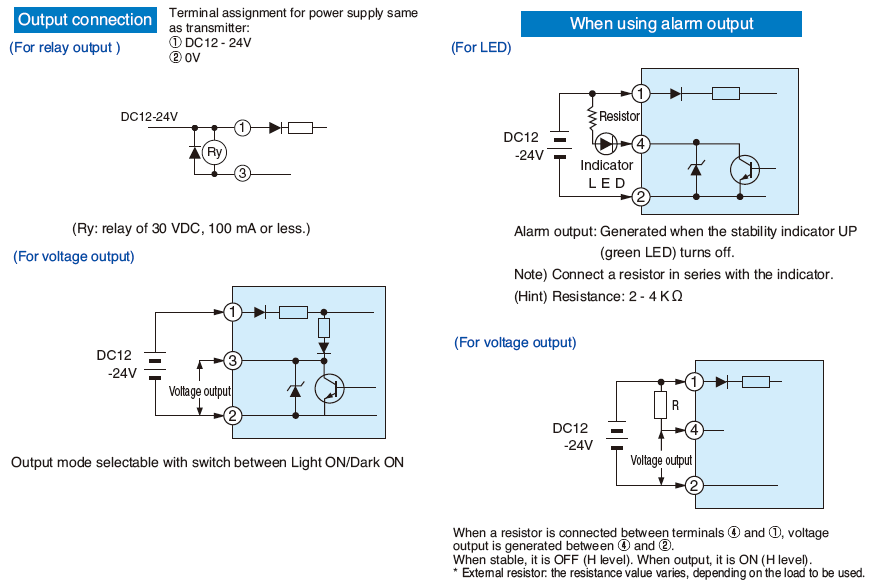

Receiver

Metal processing

Detection of loose wire rods

Wire hanging from loose wire rod carried by hook conveyor is detected (sensor used in combination with pinhole plates).

Option

Pinhole plate

オプション写真

Pinhole plate30P1

Diametter (mm) φ1
Detecting distance (m) 0.4
Description The detecting distance is when using a pinhole plate both for the transmitter and the receiver.
オプション写真

Pinhole plate30P3

Diametter (mm) φ3
Detecting distance (m) 2.5
Description The detecting distance is when using a pinhole plate both for the transmitter and the receiver.
オプション写真

Pinhole plate30P5

Diametter (mm) φ5
Detecting distance (m) 5.5
Description The detecting distance is when using a pinhole plate both for the transmitter and the receiver.
オプション写真

Pinhole plate30P7

Diametter (mm) φ7
Detecting distance (m) 9.5
Description The detecting distance is when using a pinhole plate both for the transmitter and the receiver.
オプション写真

Pinhole plate30P10

Diametter (mm) φ10
Detecting distance (m) 16
Description The detecting distance is when using a pinhole plate both for the transmitter and the receiver.

Hood

オプション写真

HoodH301

Description Air purge hood
オプション写真

HoodF301

Description Hood for shielding from outside light. Energy saving airless dust hood taking advantage of muffler effect for preventing soiling of lens.
オプション写真

HoodA301

Description Air purge hood
