NAL-M10RP
Long Range Polarized Retroreflective AC/DC Power Supply Photo Sensors
- Long detecting distance of 10 m achieved with Retroreflective type
- Mirror-like objects stably detected
- Single unit simplified wiring
- Stable operation can be checked at a glance with stability indicator
NAL-M10RP Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
NAL-M10RP
|
AC/DC24 to 240V | Polarized retroreflective | 500.00 | 10000.00 | Relay |
Dark on
Light on |
Red LED | IP67 |
Feature
- Long detecting distance of 10 m ideal for detecting large objects and for use on large conveyors
- Retroreflective type requires wiring of only one unit, simplifying wiring and reducing cost
- Polarized retroreflective type for stable detection of glossy objects
- Detecting condition can be checked at a glance with stability indicator
Dimension

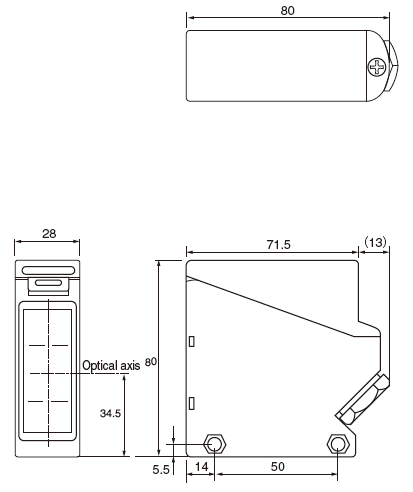

Body

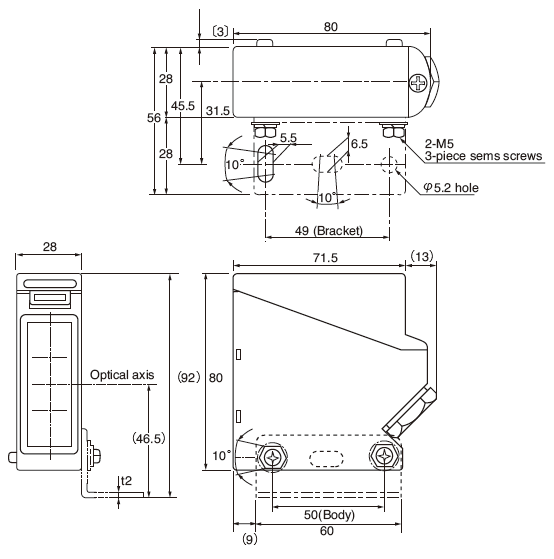

Mounting bracket (accessory) attached
Circuit
Relay output type
Transmitter
Receiver

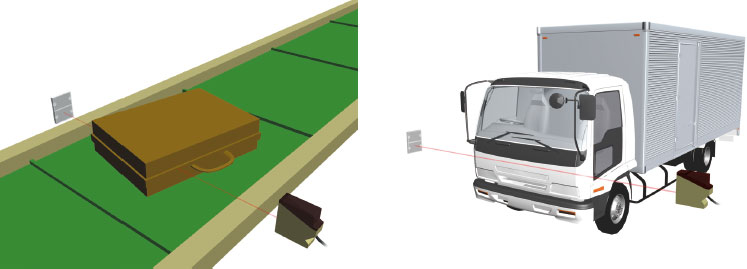

Delivery/Transportation
Detection of passage of automobiles
The polarized retroreflective sensor securely detects even glossy objects.The stability indicator displays detecting conditions clearly.
Option
Reflector
| ReflectorK-77
|
|
||||||||||||||||||
| ReflectorK-8
|
|
||||||||||||||||||
| ReflectorK-7
|
|
||||||||||||||||||
| ReflectorK-71
|
|
||||||||||||||||||
| ReflectorS-510G
|
|
