1. BGS/FGS switchable

BGS : Background suppression

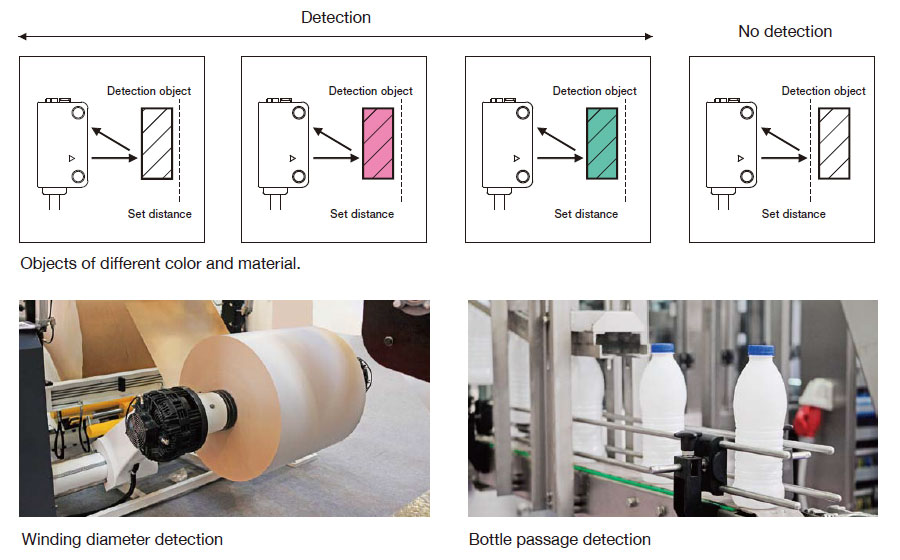

• The sensor doesn't detect objects or background being out of the setting distance.
• This mode is suited for the detection of a target without background.

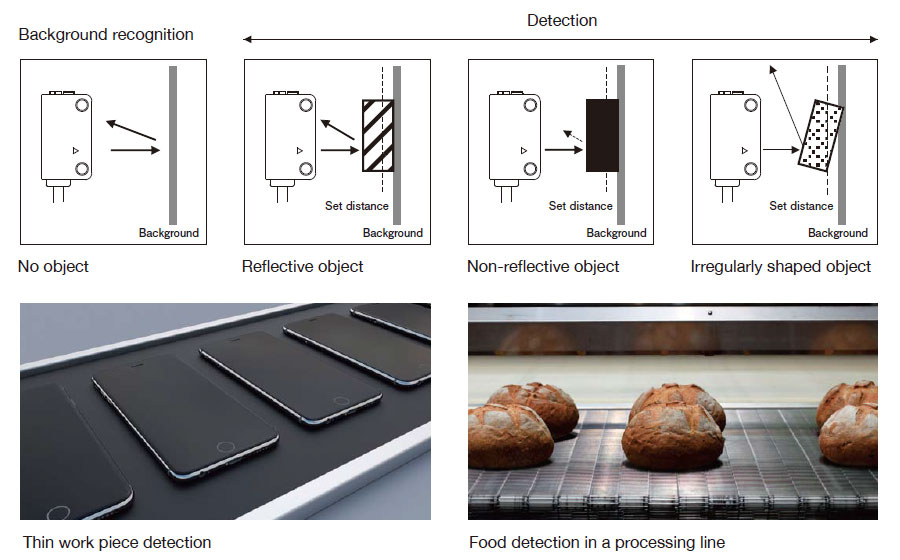

Detection principle

FGS: Background recognition: BGR (Foreground suppression)

• The sensor recognizes a background and detects a target by sensing the change in received light intensity.
• This mode is suitable for the detection of a target on a stable background.

Detection principle

2. Additional 25.4mm pitch mounting holes (Middle range models) In addition to the conventional 29mm pitch holes, universal inch (25.4mm) pitch holes are equipped.

3. Wide selection of detection distance

Detection distance of 30mm, 40mm, 50mm and 100mm are available for Short range model, and 100mm, 150mm, 200mm and 300mm are available for Middle range model. Distance setting is not necessary when using the sensor at the specified distance.

4. Automatic interference prevention (Up to 2 sensors) Prevents the mutual interference between adjacent two sensors by shifting the transmitting pulse automatically.

5. NPN/PNP dual output

The dual output enables inventory management more efficient. Model numbers followed by "P" are PNP models for which PNP output is allocated to the primary (black/ PIN 4) output.

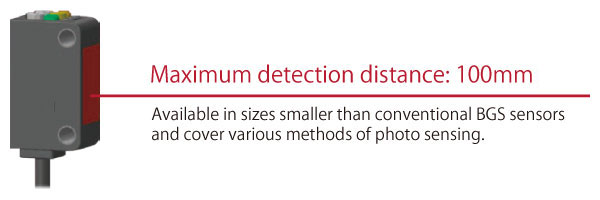

Unique optical design realizes better performance and long detection distance with the compact housing (Short range models)

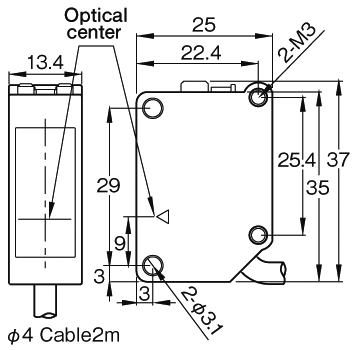

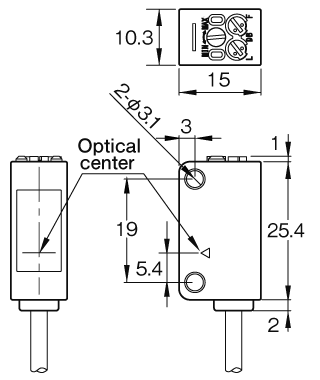

Short range / Attached cable

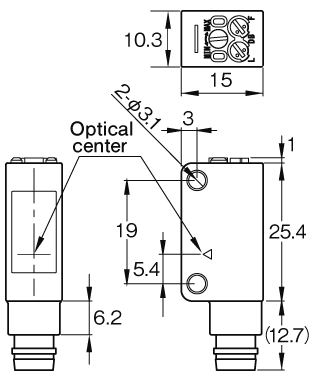

Short range / M8 connector

Middle range / Attached cable

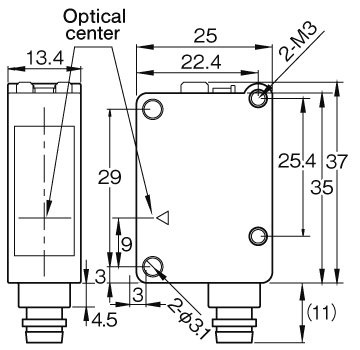

Middle range / M8 connector

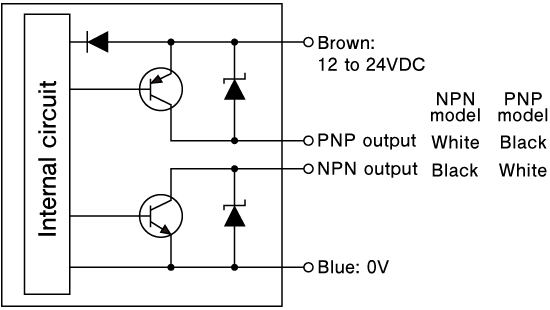

Connection

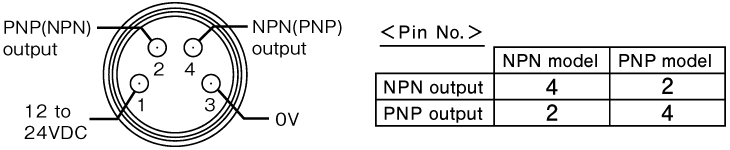

M8 connector type pin assignment

Detection of silicon wafers

Securely detecting silicon wafers even when water drops are on their surface.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Wafer carrier detection

Wafer carrier detected through view port of vacuum tank.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Electronic component detection

Molded parts detected with background suppression photo sensor unaffected by color variation.

• Background suppression photo sensor DL-S10R
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of broken paper on rotary press

Convergent reflective sensor not affected by print colors.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Checking of parts assembly

The convergent reflective sensor detects objects to be assembled into small parts.

• Distance sensor DL-S Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Checking of presence of CD

Reliable detection achieved without being affected by patterns printed on CD.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Checking for missing tile

Pallet checked for any missing tile. Reliable detection is achieved without being affected by tile color variation.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Bobbin detection

Background suppression photo sensor provides reliable detection and is unaffected by variation of bobbin color or shape.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of lifting of ejected paper

Background suppression photo sensor is unaffected by color variation and therefore used for detecting any lifting of ejected paper.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of absorption in lettuce wrapping

The limited range reflective sensor detects lettuce wrapping without being affected by color or shape of the detecting object.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of steamed fish paste on belt conveyor

The limited range reflective sensor detects steamed fish paste without being affected by color, shape or material of the\ndetecting object.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of objects in harsh environment

The limited range reflective sensor can detect material even in a harsh environment because it is not affected by dirt on lens or detecting objects.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Detection of coated plywood board

Plywood board of various colors detected with back ground suppression photo sensor.

• BGS/FGS Switchable Sensor DLN Series
• BGS/FGS Switchable Sensor DLN Series (Infrared LED type)

Mounting bracket

	BK-001	Accessories Screw: 2, Nut: 1 Materials SUS
	GN-B2	Description Mounting bracket (seperately available) Accessories Screw: 2 Materials SUS
	GN-B1	Description Mounting bracket (seperately available) Accessories Screw: 2, Flat nut: 1 Materials SUS

Cable with connector

	FBC-4R2L	Description Cord with M8 connector Application model For M8 connector type Shape Angled with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m
	FBC-4R2S	Application model For M8 connector type Shape Straight with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m
