GT2-WS/GT2S-WS
LED light absorption type Water detection sensors

GT2-WS/GT2S-WS
  • Light wavelength absorbed in water molecules
    • Transparent water reliably detected
  • Protective structure: IP 67
    • Resin-molded for protection
Standard・Official Approval
  • CE Mark

GT2-WS/GT2S-WS Lineups

Model Operation mode Control output Download
GT2-WS
仕様を見る 		Light-ON/Dark-ON selectable NPN
GT2S-WS
仕様を見る 		Light-ON/Dark-ON selectable NPN

Feature

About pinhole plate

Pinhole plates allow the reduction of the size of a detection object or the margin of movement. Using the sensitivity adjustment volume in combination allows detection of even smaller or near-transparent objects.

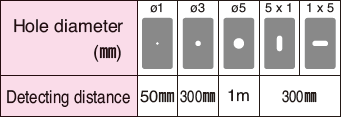

Detecting distances for different pinhole sheets

Detecting distances for different pinhole sheets

Dimension

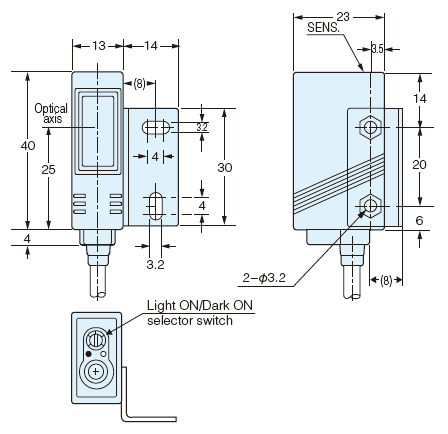

GT2S-WS (side-on type)

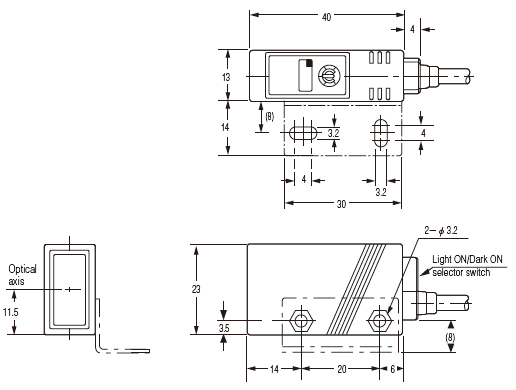

GT2-WS (head-on type)

Transmitter is not provided with Light ON/Dark ON selector switch, SENS, LIGHT or UP and has different panel appearance.

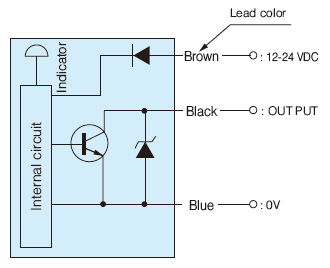

Circuit
