製品情報

CN-T100MR
Long distance, M30 cylinder Simplified type, CMD

  • Long distance: 100m
    • Secure detection in harsh environment, with high power
  • Provided with three-point received light intensity indicator
    • Helpful for adjustment of optical axis
  • Embedded with AC/DC power circuit
    • Either 48-240VAC or 24-240VDC can be used as power supply
    • Covering AC/DC (NPN/PNP) control, with photo MOS (1a)

CN-T100MR Lineups

Model Type Power supply Control output Download
CN-T100MR
仕様を見る
Simple type 48 - 240VAC/24 - 240VDC Photo-MOS relay output

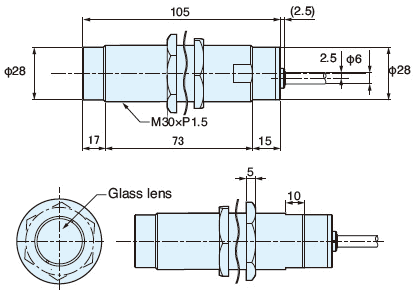

Dimension

CN-T100MR

Circuit

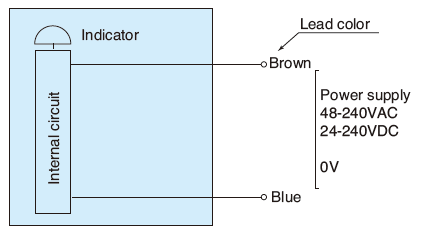

Transmitter

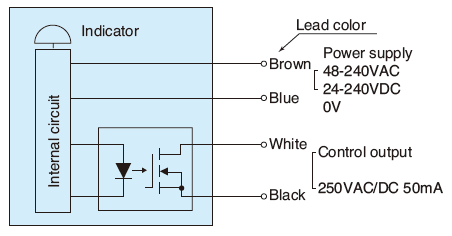

Receiver

Option

Hood

オプション写真

HoodH301CN

Description Air purge hood
オプション写真

HoodA301CN

Description Air purge hood
オプション写真

HoodF301CN

Description Air purge hood
Description Hood for shielding from outside light. Energy saving airless dust hood taking advantage of muffler effect for preventing soiling of lens.

Adapter

オプション写真

AdapterCN-CP

Description Hood adapter (the adapter is necessary when using an optional product)
