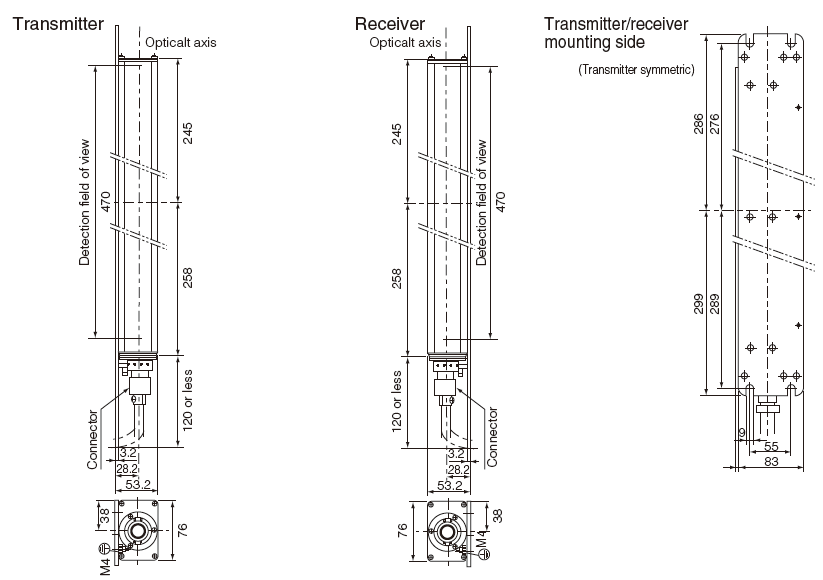

• Differentiation between single and double holes
  One set of sensor is capable of differentiation between single and double holes, generating various types of output signals
• Simple optical axis alignment
  When light is fully received (nothing in the detection area between the transmitter and receiver), the AMP gain of the receiver is reduced to about 1/10 of the ordinary detection of punch holes. When the optical axis is aligned in this condition, the SAFETY lamp on the receiver is illuminated.
• Self check feature
  The transmitter is provided with light emission monitor circuit, which checks for any abnormality in light emission and outputs alarm signal accordingly. The receiver allows external checking of whether it is functioning normally.
  When light is fully received, the AMP gain of the receiver is automatically reduced to about 1/10. If the receiver detects full light reception in this condition, the SAFETY lamps on the receiver and controller are illuminated, indicating that the received light intensity level has a margin of more than tenfold.

Air purge unit or water cooling jacket can be optionally attached to the transmitter and receiver.

Air purge unit: model AP60ET (for transmitter), AP60ER (for receiver)
Water cooling jacket: model WJ60E (for transmitter/receiver)

Edge processing feature available (separate model)

For plate width narrower than effective detecting width of the sensor, receiver provided with an edge processing feature is available.
Receiver model: SWD60RE (Effective detection width 390mm at Edge processing)

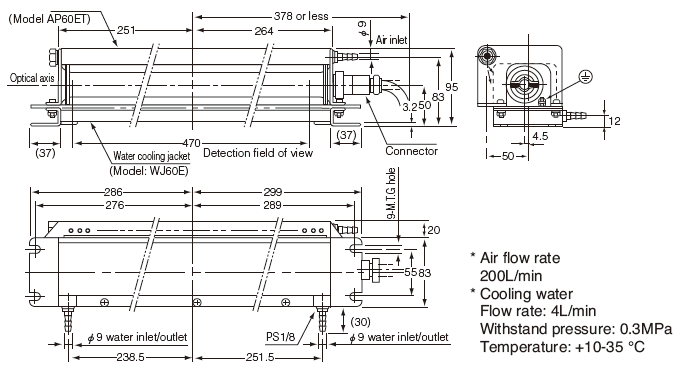

With air purge unit and water cooling jacket attached
Model:AP60ET
Model:WJ60E

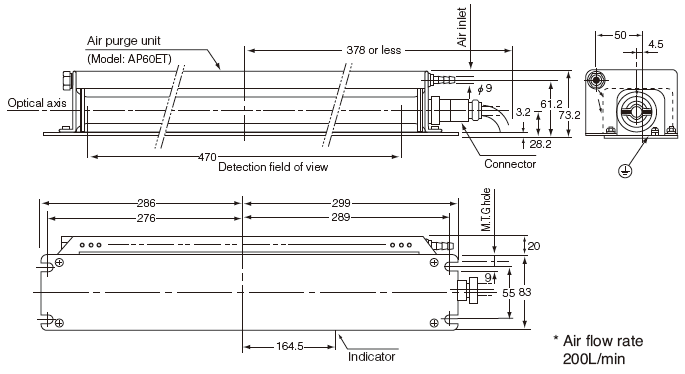

With air purge unit attached
Model:AP60ET

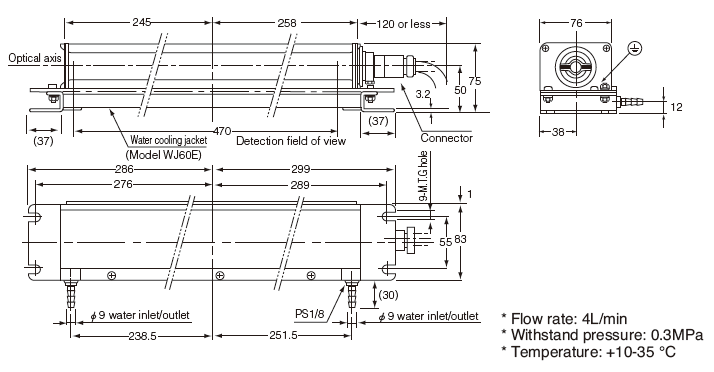

With water cooling jacket attached
Model:WJ60E

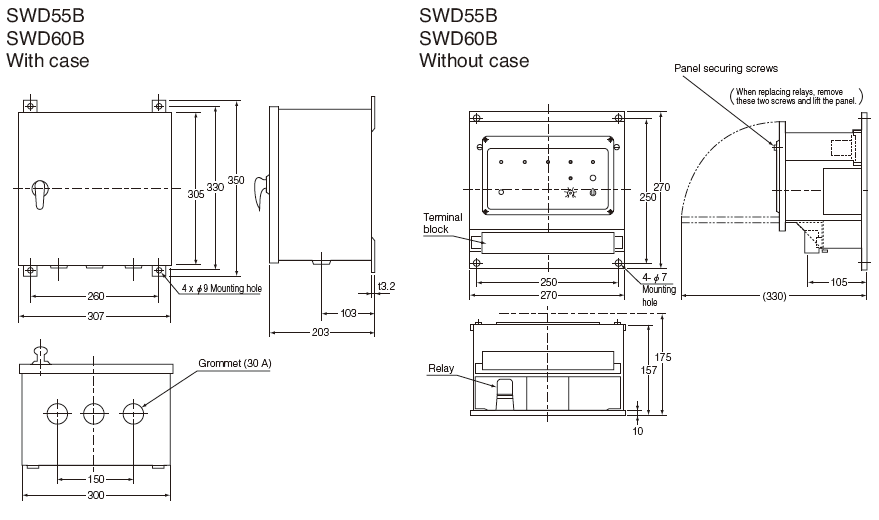

Controller SWD60B With case

Controller SWD60B Without case

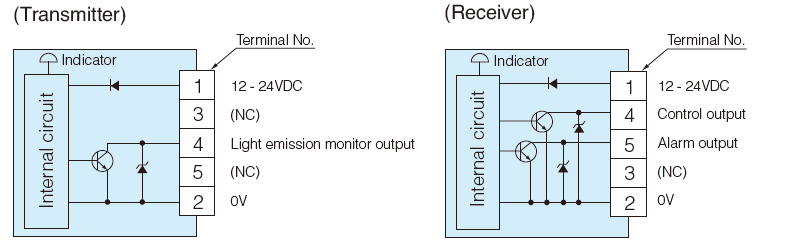

NT100

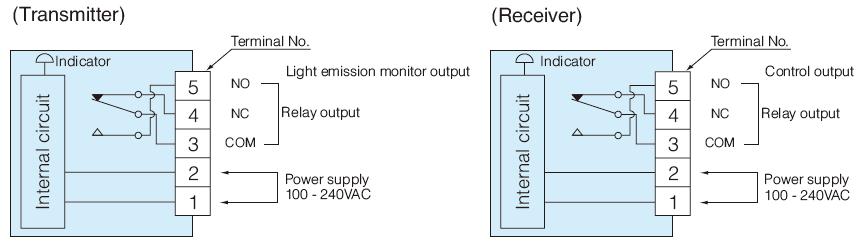

NT100P

Controller

ControllerSWD60B

Description Controller Control output Single-hole detection output : Relay output 1c and NPN open collector output (floating) Double-hole detection output : Relay output 1c and NPN open collector output (floating) Output rating Relay output : 250 VAC 5 A or less (resistive load) NPN Open collector output : 30VDC 100mA or less Operation mode One shot output : duration variable between 0.1-1 second (adjustment volume on panel) Response time Relay output : 30 ms or less NPN Open collector output : 3ms or less SAFETY output Relay output 1a Output rating : 250 VAC 5 A or less (resistive load) ALARM output operation mode Output rating : Relay output 250VAC 5A or less (resistive load) Receiver check input a (normally open) contact input (short circuiting of Terminals 9 and 10) Power supply 100, 110, 200 or 220 VAC (rated voltage : ?15+10%, 50/60 Hz) Power consumption 30W or less Ambient temperature -25°C to 55 °C (Non-freezing) Storage temperature -40°C to 70 °C (Non-condensing) Ambient humidity 35 - 85%RH (Non-condensing) Dielectric withstanding／Insulation resistance Between power supply and case Between relay output and case Between relay output and power supply 1500 VAC for 1 minute, 20 MΩ or higher (with 500 VDC) Between open collector output and case Between open collector output and power supply 1000 VAC for 1 minute, 20 MΩ or higher (with 250 VDC) Vibration 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions Shock 500m/s2/ 3 times each in 3 directions Connection Terminal block Protective structure IP40 (with case) Weight Approx. 9 ㎏
