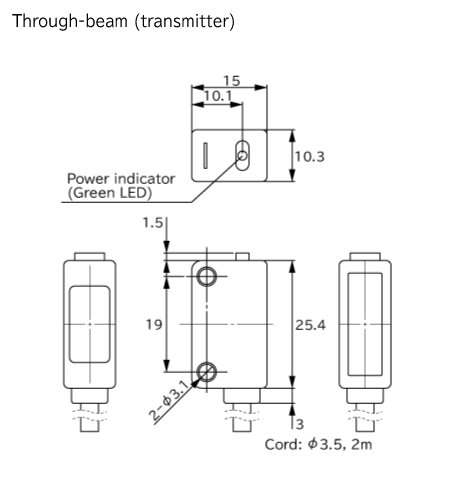

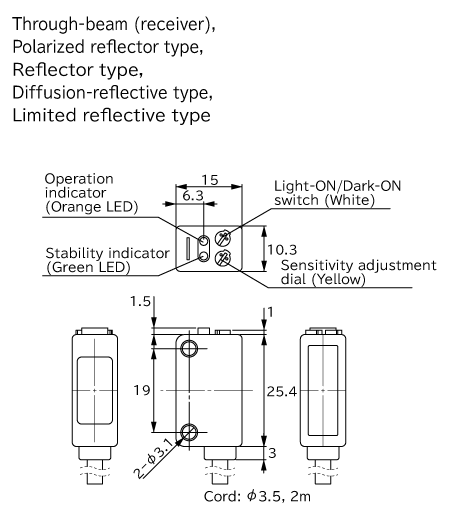

1. Cord drawing type

2. Cord drawing type

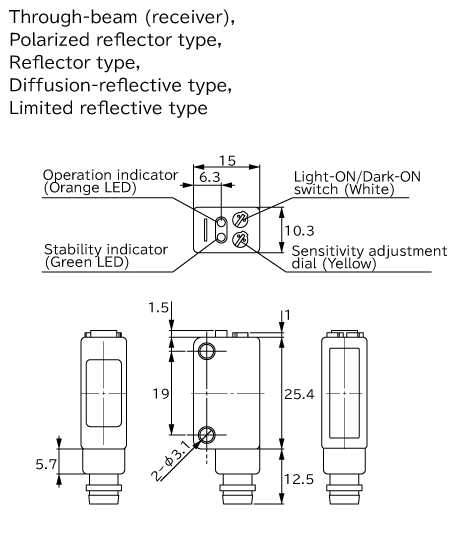

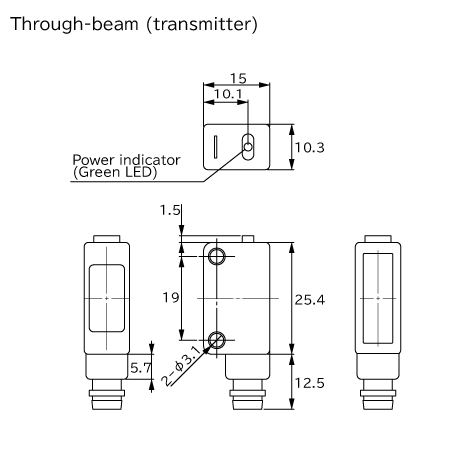

3. M8 connector type

4. M8 connector-type

5. Polarized reflector type, Reflector type Accessory

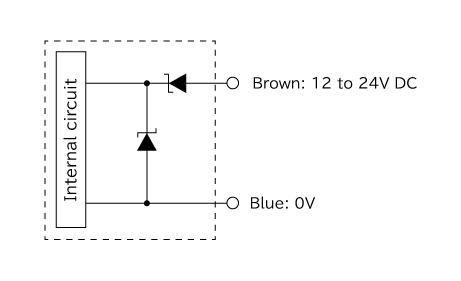

1. Through-beam type (Transmitter)

2. Through-beam type (Receiver)

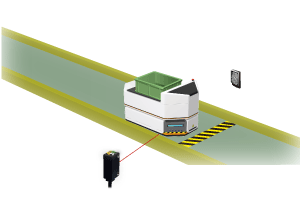

Transmission of signals to AGV carriages

Measuring the distance to the detecting object in the phase differential method and securely detecting a wide area without being affected by the background of the detecting object, glossy surface or color depth.

• Embedded Amplifier Photo Sensors GNA-M2RPS

Sensor for automatic faucet

Users' approaching and leaving detected for flushing.

• Embedded Amplifier Photo Sensors GNA-R40S

Pinhole plate

	Pinhole plateGNP1	Description Pinhole plate (For through beam type only) Pinhole diameter φ1mm Detecting distance with plate/filter attached Red LED : 400mm Infrared LED : 300mm Materials SUS
	Pinhole plateGNP2	Description Pinhole plate (For through beam type only) Pinhole diameter φ2mm Detecting distance with plate/filter attached Red LED : 1m Infrared LED : 1m Materials SUS
	Pinhole plateGNP3	Description Pinhole plate (For through beam type only) Pinhole diameter φ3mm Detecting distance with plate/filter attached Red LED : 3m Infrared LED : 2.5m Materials SUS
	Pinhole plateGNP5-1	Description Pinhole plate (For through beam type only) Pinhole diameter 5X1mm Detecting distance with plate/filter attached Red LED : 2m Infrared LED : 1.7m Materials SUS

Interference prevention filter

	Interference prevention filterGN-PFA	Description Interference prevention filter (For through beam type only) Direction of polarization Longitudinal Detecting distance with plate/filter attached 5m (Applicable to red LED type only)
	Interference prevention filterGN-PFB	Description Interference prevention filter (For through beam type only) Direction of polarization Horizontal Detecting distance with plate/filter attached 5m (Applicable to red LED type only)

Cable with connector

	Cable with M8 connectorFBC-4R2S	Description Cord with M8 connector Application model For M8 connector type Shape Straight with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m
	Cable with M8 connectorFBC-4R2L	Description Cord with M8 connector Application model For M8 connector type Shape Angled with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m

Protective cover

	Protective coverGN-PCB1	Accessories Screw : 2, Flat nut : 1 Materials SUS Use For cable type
	Protective coverGN-PCB2	Accessories Screw : 2, Flat nut : 1 Materials SUS Use For cable type
	Protective coverG-K7B	Description Protective cover (For reflector) Accessories Screw: 2 Materials SUS

Reflector

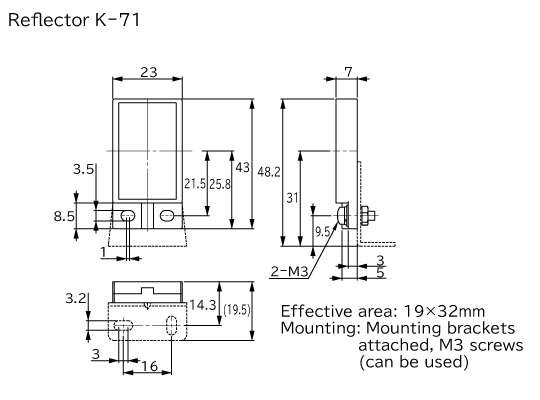

	ReflectorK-71	Effective reflecting surface Approx. 30X18mm Protective structure IP67 Mounting sedured with M3 screws (alternatively adhesive may be used) Materials Mirror : acrylic, Base : heat resistant ABS Accessories Screw : 2, Nut : 2 Dimensions 43X23mm Detectjing object Opaque object of dia. 40mm Detecting distance 0.01 - 2m
	ReflectorK-7	Description Reflector Application model Applicable to polarized retroreflective type Effective reflecting surface Approx. 56X36mm Protective structure IP67 Mounting sedured with M3 screws Materials Mirror : acrylic, Base : heat resistant ABS Dimensions 60X40mm Detection distance 0.01 - 3m
	ReflectorS-25	Applicable polarized retroreflective type Effective reflecting surface dia.18.5mmx25per sheet Mounting Pasted, adhesive on back side Detection distance 70 - 450mm
	ReflectorS-510G	Effective reflecting surface 100×50mm Description Reflector Mounting Pasted, adhesive on back side Detection distance 0.01 - 1m

Mounting bracket

	Mounting bracketGN-B1	Description Mounting bracket (seperately available) Accessories Screw: 2, Flat nut: 1 Materials SUS
	Mounting bracketGN-B2	Description Mounting bracket (seperately available) Accessories Screw: 2 Materials SPCC trivalent chromating
