FX8401BC
Coaxial reflective type
Coaxial, minute light spot with lens
FX8401BC Lineups
| Model | Detection method | Environmental feature | Tip appearance | Tip size | Detecting distance min (mm) | Detecting distance (mm) | Feature | Cable length (m) | Applicable amplifer | Download |
|---|---|---|---|---|---|---|---|---|---|---|
FX8401BC
|
Coaxial reflective | Ordinary temperature | Threaded | M4 | 100 | 2 (free-cutting) |
F2R
F70 F71 F80R F85RN |

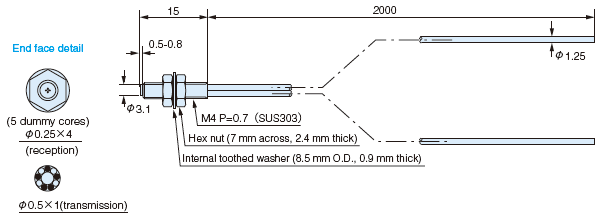

Dimension
The tightening torque for the threaded part should be up to 0.8 N m.
Semiconductor
Detection of IC pin
Detects even an IC pin with a beam of small spot diameter created by a lens unit.
