KSS85 Series
Force Sensitive Sheet Sensor
Just sticking sheet ensures reliable object detection
- Sensitive sheet with versatile installation location
- Contact method unaffected by any color, material or shape
- Stable detection regardless of ambient lights or other sensors
- Download
-
-
KSS85 Series Lineups
| Model | Type | Power supply | Detection method | Detecting area (mm) | Control output | Operation mode | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|
KSS85
|
Amplifier | 12-24VDC | Contact method |
NPN
PNP |
Normally Open
Normally Closed |
IP40 | Attached cable | ||
|
KS-100
|
Force sensitive sheet | Contact method | 20×100 | ||||||
|
KS-15
|
Force sensitive sheet | Contact method | 4×14 |

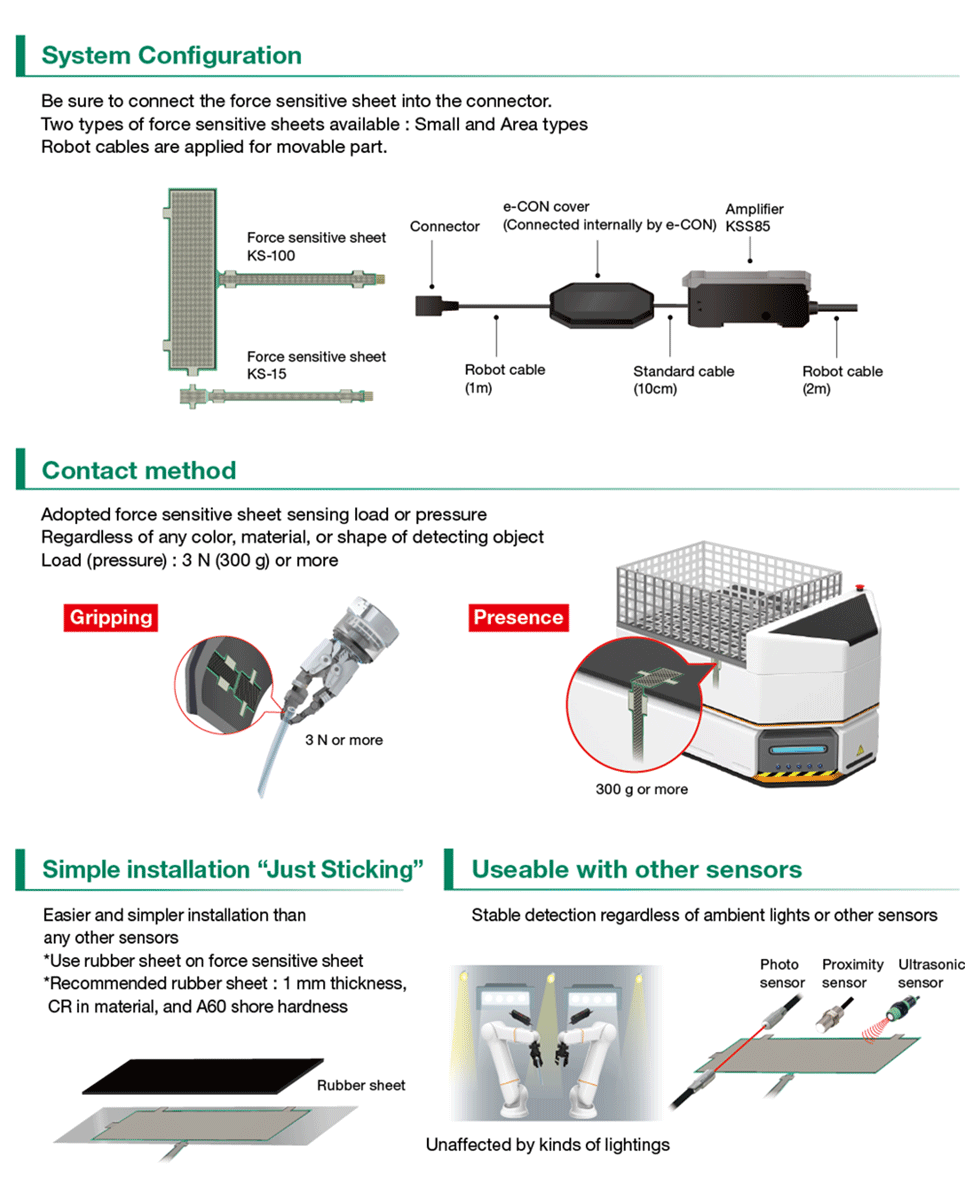

Feature
Dimension

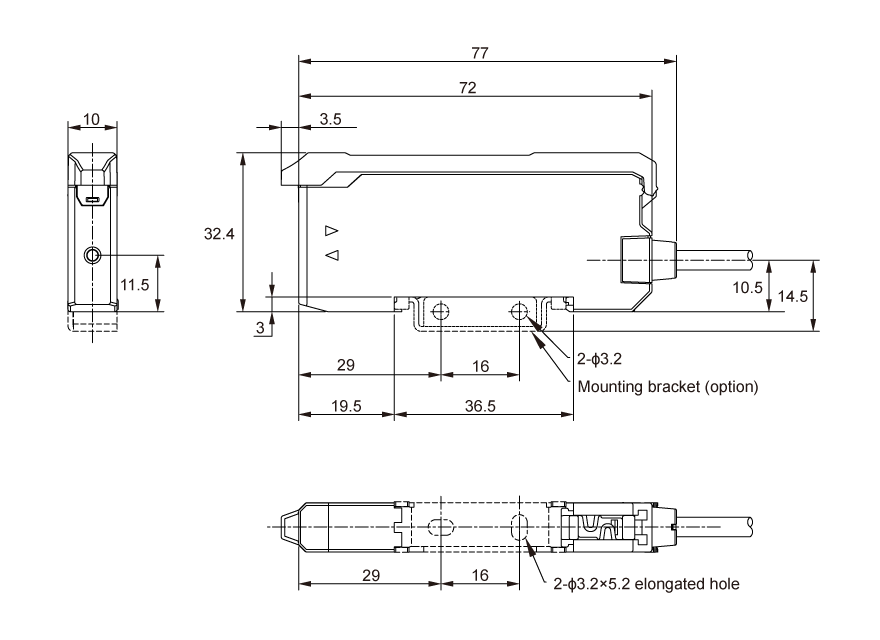

KSS85

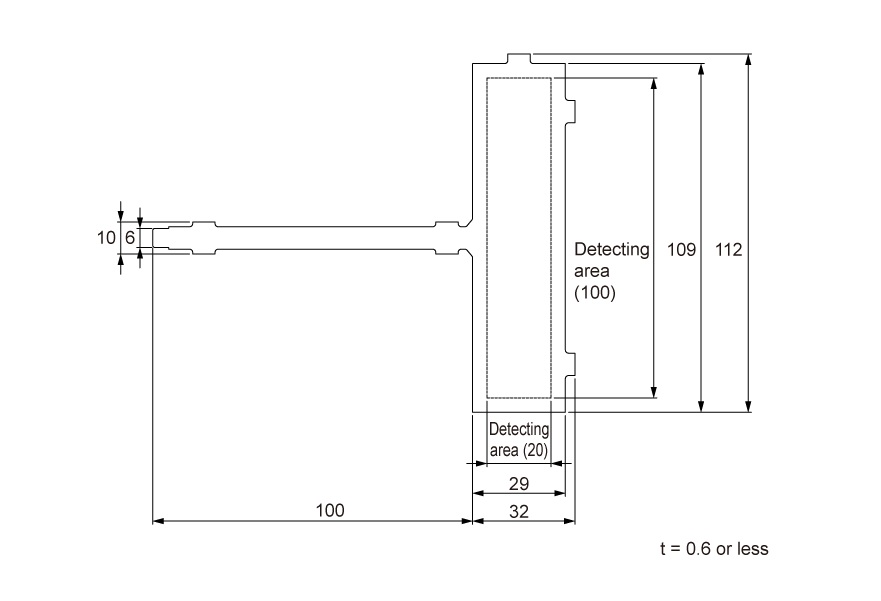

KS-100

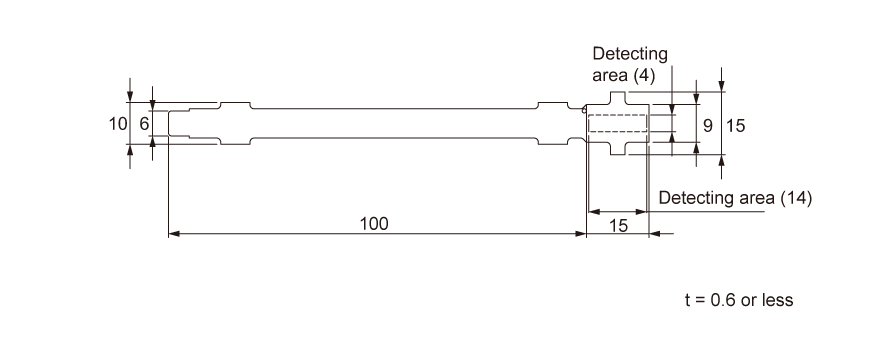

KS-15

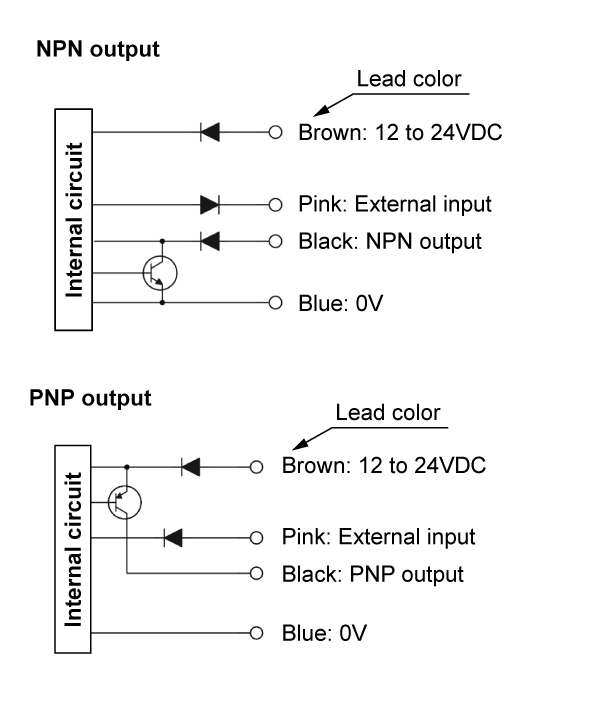

Circuit
CONNECTION (Including I/O circuits)
Automatic assembly

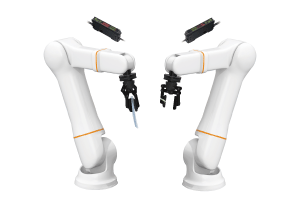

Gripping confirmation by robot hands
Preventing interference with other photo sensors

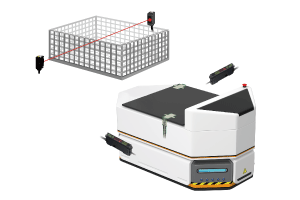

Logistics
Detecting presence of mesh pallet
Reliably detect even object like net without malfunction

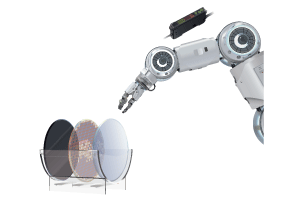

Semiconductor
Object detection with various transparency
Contact method ensuring detection unaffected by any color
Delivery/Transportation

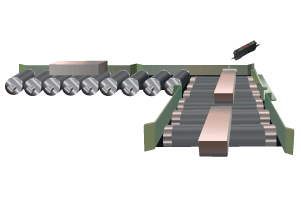

Arrival confirmation of lumber
Just sticking on wall surface

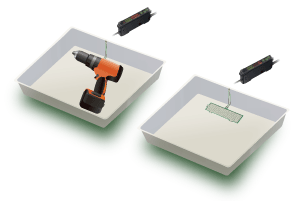

Automobile
Detection of tool in tray
Flexible installation to suit tool in tray

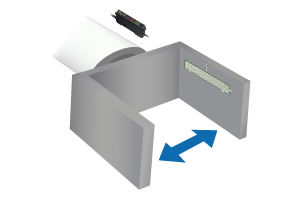

Automatic assembly

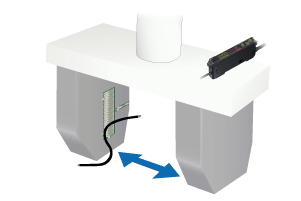

Confirmation of gripping cable or tube
Detect object reliably passing through unfixed position
etc.

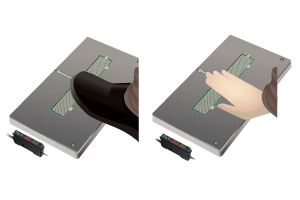

Start switch
Sheet shape allowing installation in any location
Delivery/Transportation
Gripping check of various robot hands
Useable at kinds of robot hands with Area sheet type
Option
Mounting bracket
| AC-BF3
|
|
