MC Series
U-shaped mark sensor

MC Series
  • A Blue LED type is now available (ideal for detecting yellow register marks)
  • Lens surface is constantly cleaned
  • No damage to sheets with the large curvature convex lens
    • Water resistant IP 67 washable housing Multi-turn pot. for easy adjustment
Standard・Official Approval
  • CE Mark

MC Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
MC-U2R
仕様を見る 		Through beam (U-shaped) 2.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
MC-U2RTC
仕様を見る 		Through beam (U-shaped) 2.00 NPN
PNP 		Dark on
Light on 		Red LED IP67 Attached cable
MC-U2G
仕様を見る 		Through beam (U-shaped) 2.00 NPN Dark on
Light on 		Green LED IP67 Attached cable
MC-U2GTC
仕様を見る 		Through beam (U-shaped) 2.00 NPN
PNP 		Dark on
Light on 		Green LED IP67 Attached cable
MC-U2B
仕様を見る 		Through beam (U-shaped) 2.00 NPN Dark on
Light on 		Blue LED IP67 Attached cable
MC-U2BTC
仕様を見る 		Through beam (U-shaped) 2.00 NPN
PNP 		Dark on
Light on 		Blue LED IP67 Attached cable

Feature

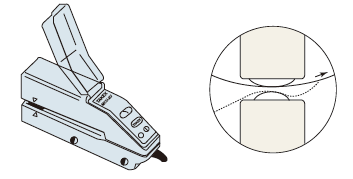

  • The center of detection is constantly cleaned for stable detection, even with Japanese paper, etc., that generates a large amount of dust.
  • The top lens is also cleaned by the “spring effect" of work caused by release of tension that occurs when the work runs out.

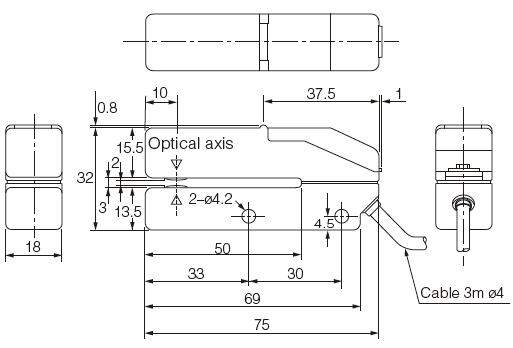

Dimension

Circuit

NPN output

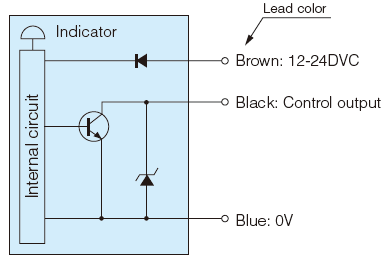

MC-U2R
MC-U2G
MC-U2B

NPN/PNP output

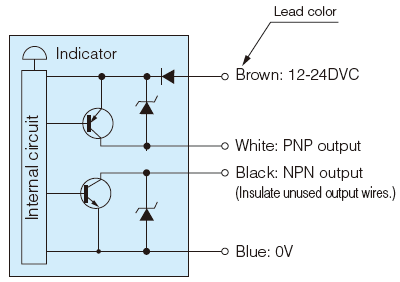

MC-U2RTC
MC-U2GTC
MC-U2BTC

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.

Printing

Detection of register mark on wrapping paper for Japanese sweets

The U-shaped sensor can be easily installed.\nSince the lens surface is always cleaned, this is best for mark detection on traditional Japanese paper.

Packaging/Food/Drug

Mark detection

U-shaped sensor provide easy installation. Register marks on paper are detected by adjusting power of emitted light.
