LD-MX5R
Laser Type Embedded Amplifier Photo Sensors
- Long-range high-precision locating detection!
Additional easy optical axis alignment - Extra fine beam suitable for detection of minute objects.
- Coaxial reflective laser detects an object in a narrow gap or through a hole.
- Polarized reflective method easily detects a mirror-like object.
- Equipped with mutual interference prevention function.
- Provided with laser emission inhibit input.
- Class 1 laser type is also available.
-
This is a laser product.
To use the product safely, do not look at the beam directly and do not point towards the human body.
- Standard・Official Approval
-
LD-MX5R Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
LD-MX5R
|
12-24VDC | Polarized retroreflective | 5000.00 | NPN |
Dark on
Light on |
IP66 | Attached cable | |||
|
LD-MX5RPN
|
12-24VDC | Polarized retroreflective | 5000.00 | PNP |
Dark on
Light on |
IP66 | Attached cable | |||
|
LD-MX5R-C1
|
12-24VDC | Polarized retroreflective | 300.00 | 3000.00 | NPN |
Dark on
Light on |
IP66 | Attached cable | ||
|
LD-MX5RPN-C1
|
12-24VDC | Polarized retroreflective | 300.00 | 3000.00 | PNP |
Dark on
Light on |
IP66 | Attached cable |

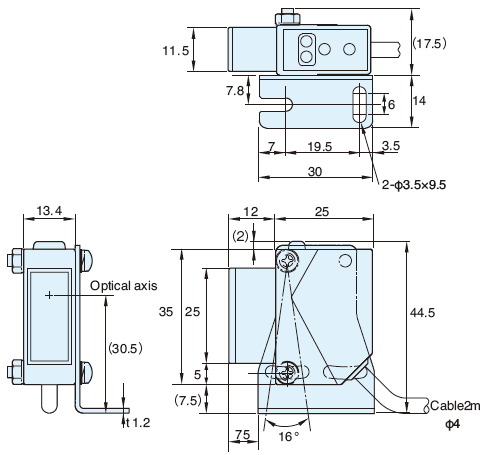

Dimension
LX-MX5R
LX-MX5RPN
LX-MX5R-C1
LX-MX5RPN-C1

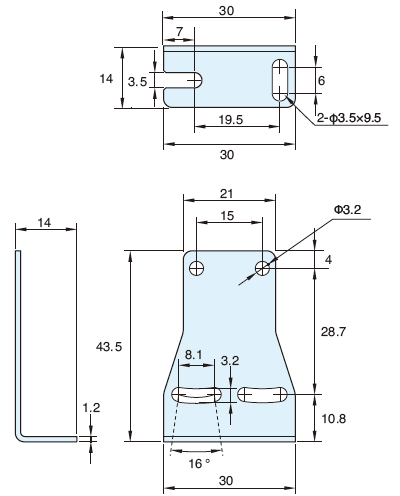

Mounting bracket (accessory)
Circuit

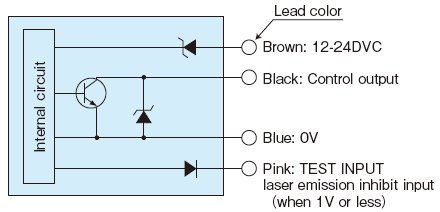

NPN output
LD-MX5R/LD-MX5R-C1

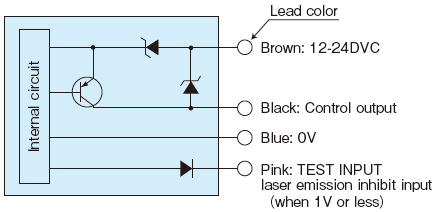

PNP output
LD-MX5RPN/LD-MX5RPN-C1
- This product applies a slow starter circuit for laser emission. The laser light turns on about one seconds after power-up or reset of a short circuit caused by emission inhibit input.
- The output transistor turns off if a load short-circuit or overload occurs. The output transistor turns off. Check the load state before restarting.
Electronic Component Mounting

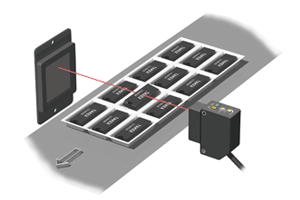

Detecting ICs floating loose on a pallet
Due to the coaxial alignment of the light emitter and sensor, even slight positional misplacements are stably detected.
Option
Reflector
| ReflectorS-0503A
|
|
||||||||||||||||||
| ReflectorK-72
|
|
||||||||||||||||||
| ReflectorK-71
|
|
||||||||||||||||||
| ReflectorK-7
|
|
