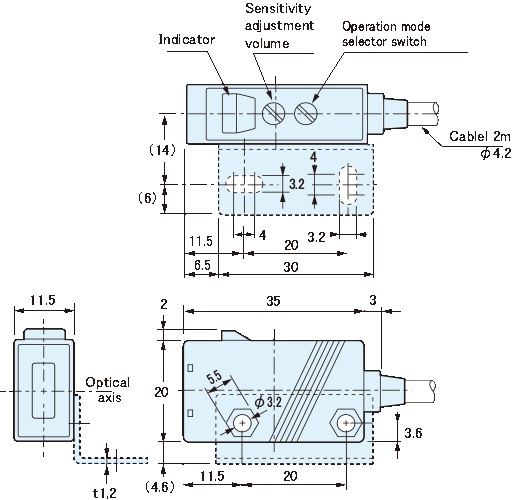

LD-T20R (-C1) Series

Figures above show receivers. Transmitters have different panels.

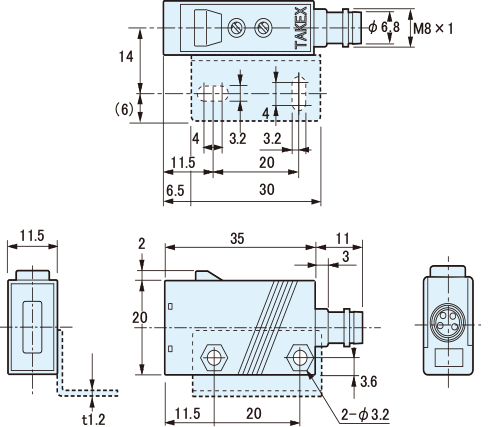

M8 connector type (-J type)

Figures above show receivers. Transmitters have different panels.

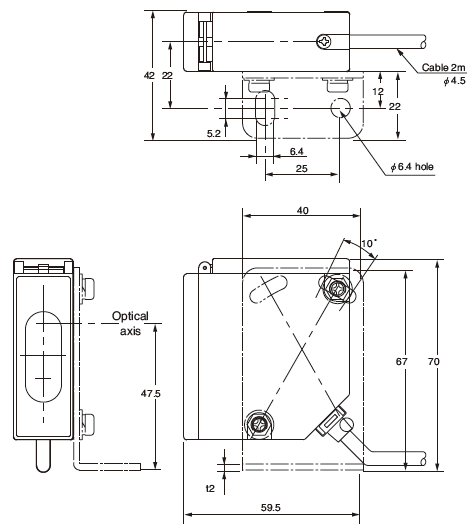

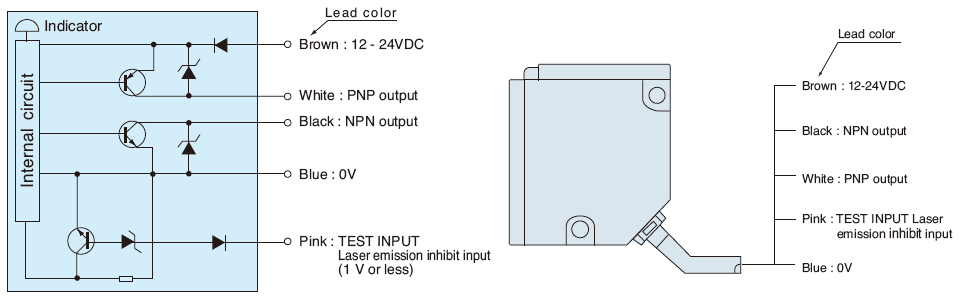

LD-S33R

With mounting bracket attached

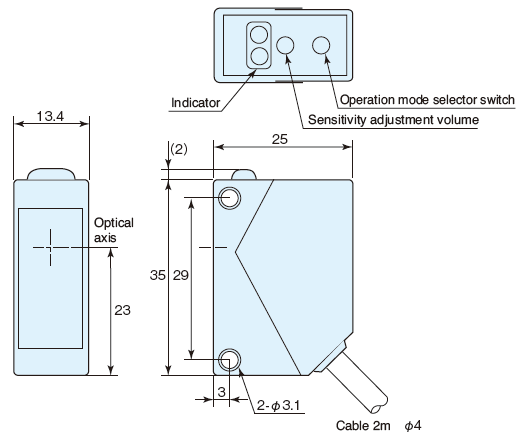

LD-M10R
LD-M10RPN

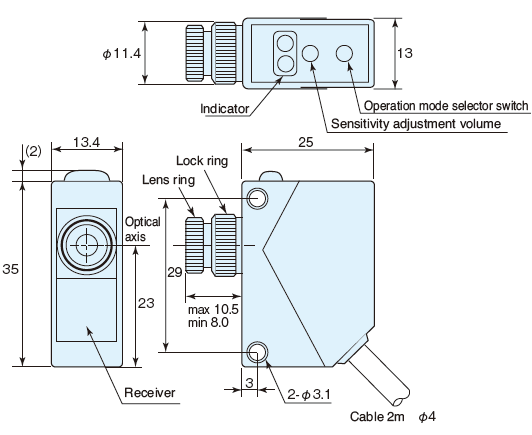

LD-S20R
LD-S20RPN

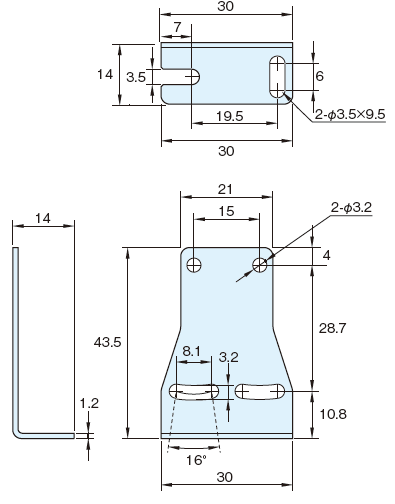

Mounting bracket (accessory)

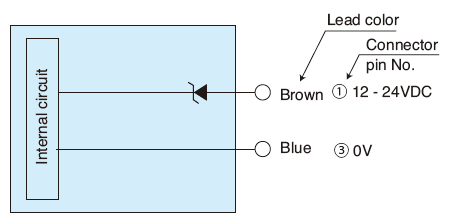

Through beam type transmitter

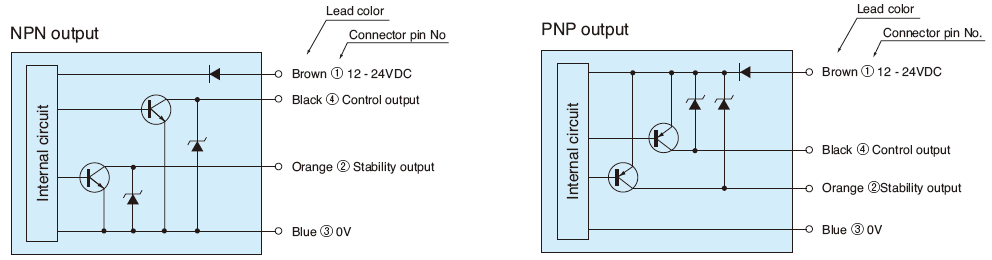

Through beam type receiver

• The stability output is not provided with short circuit protection.

Polarized reflective / Variable focus reflective type

Convergent reflectionive type

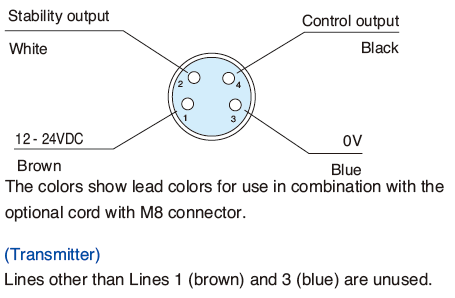

Pin assignment and connection of M8 connector type (-J)

• Slow starter circuit is provided for laser emission. The laser light is illuminated about 0.5 seconds after power-up or reset of short circuit caused by emission stop input.
• The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.

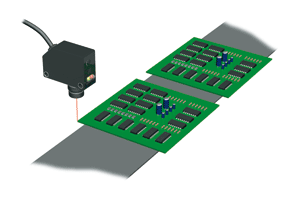

Detection of chips on lead frames

Variable focus reflective laser sensor checking presence of chips.

• Laser sensor LD-S20R

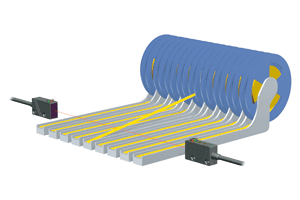

Detection of lifting of tape feeder

Lifting in tape feeders in line can be detected by spot lasser beam.

• Laser sensor LD-T20R

Positioning of hybrid snbstrates

High precision positioning achieved with micro-spot laser beam.

• Laser sensor LD-S20R

Weld joint detection

Joint of motor body detected before welding. Variable focus reflective laser sensor allowing optimized adjustment according to distance.

• Laser sensor LD-S20R

Detection of solid wire among stranded wires (detection of cut)

Detecting a cut solid wire with a fine laser beam.

• Laser sensor LD-S33R

Rubber cap detection

Diffuse reflective laser sensor used for checking presence of black rubber cap on tip of metal rods. Variable focus function provides optimal focusing of light spot according to distance.

• Laser sensor LD-S20R

Positioning of rolled paper

Rolled paper positioned on printer. Sensor with focused laser beam ensures high accuracy.

• Laser sensor LD-M10R

Cable with connector

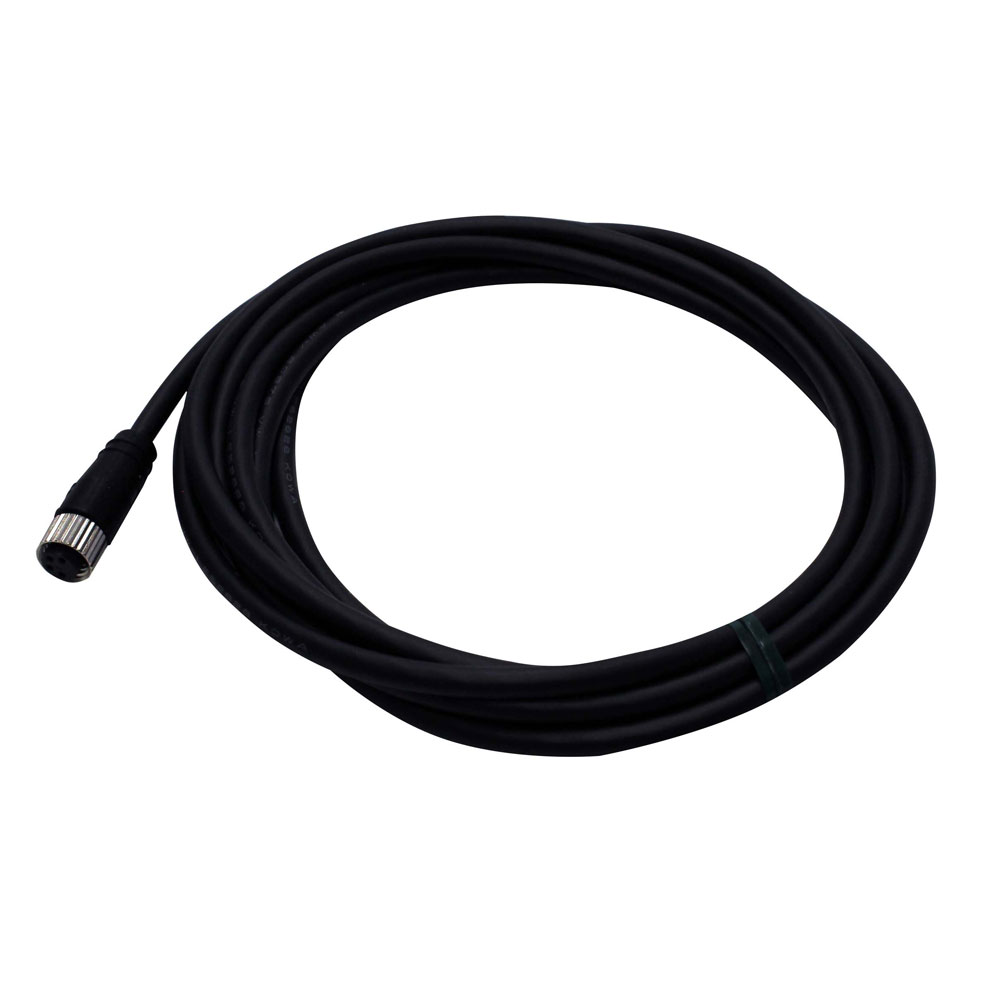

	Cable with M8 connectorFBC-4R2S	Application model For M8 connector type Shape Straight with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m

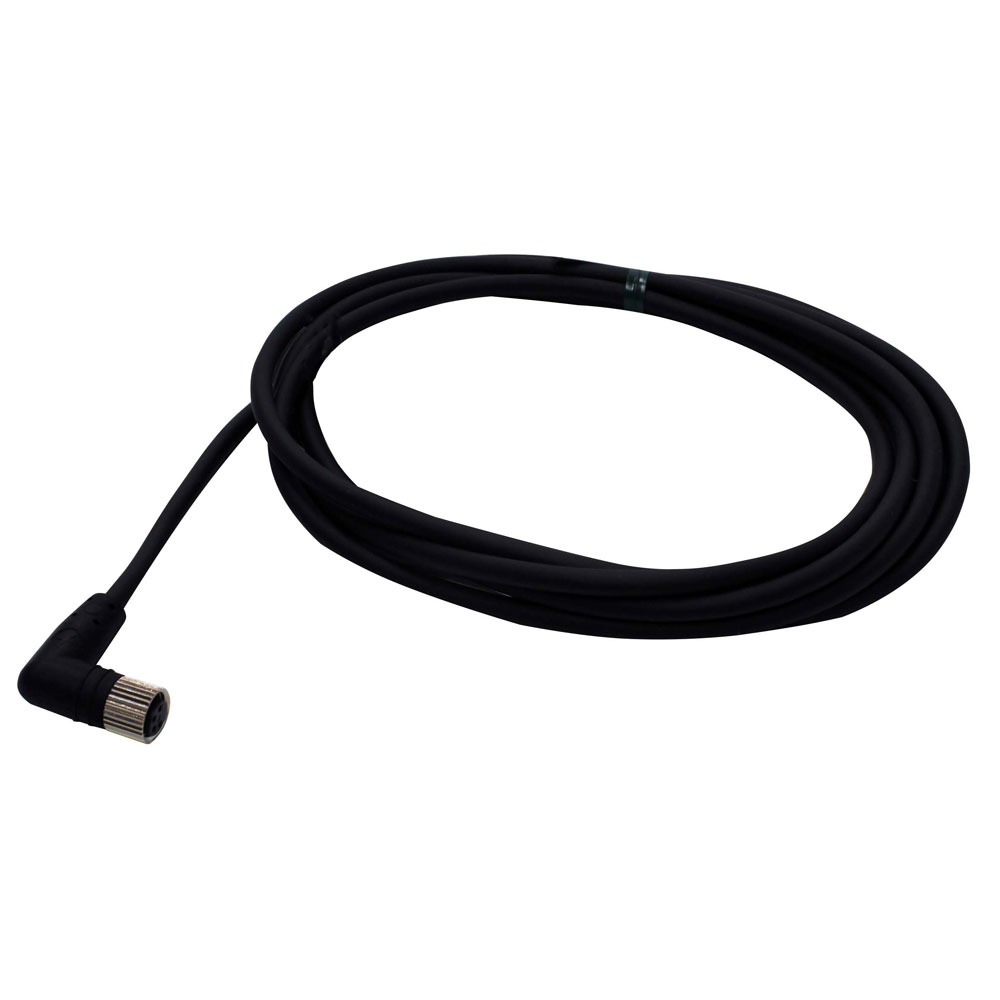

	Cable with M8 connectorFBC-4R2L	Description Cord with M8 connector Application model For M8 connector type Shape Angled with 4 cores cable, 2 m (transmitter/receiver) Cable length 2m

Protective cover

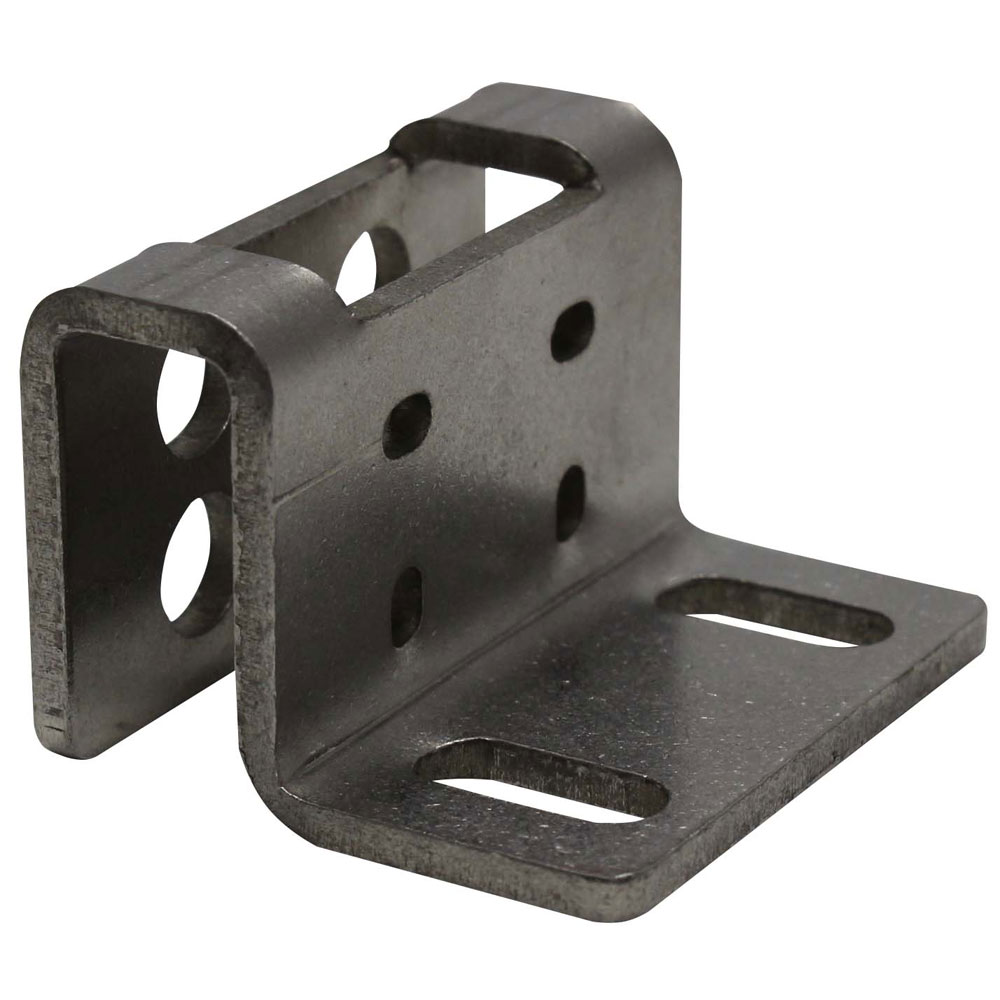

Protective coverG-MTB2

Reflector

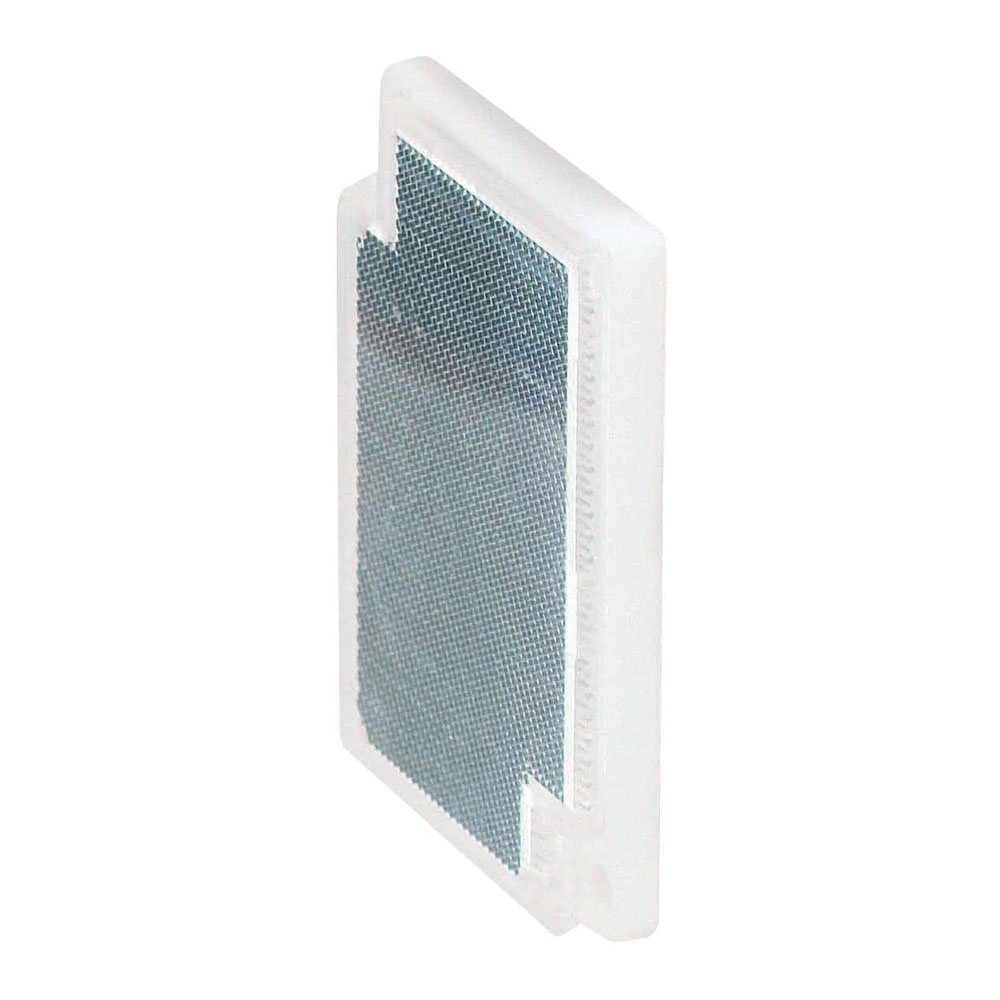

	ReflectorK-15	Description Reflector Application model Applicable to polarized retroreflective type Effective reflecting surface Approx. 55X36mm Protective structure IP67 Mounting sedured with M3 screws Materials acrylic
	ReflectorS-0503A	Effective reflecting surface Approx. 24X24mm Mounting sedured with M3 screws Materials Mirror : acrylic, Base : heat resistant ABS, Mounting plate : SUS304 Detecting distance LD-MX5R : 0 - 2.5m LD-MX5R-C1 : 0 - 1.5m

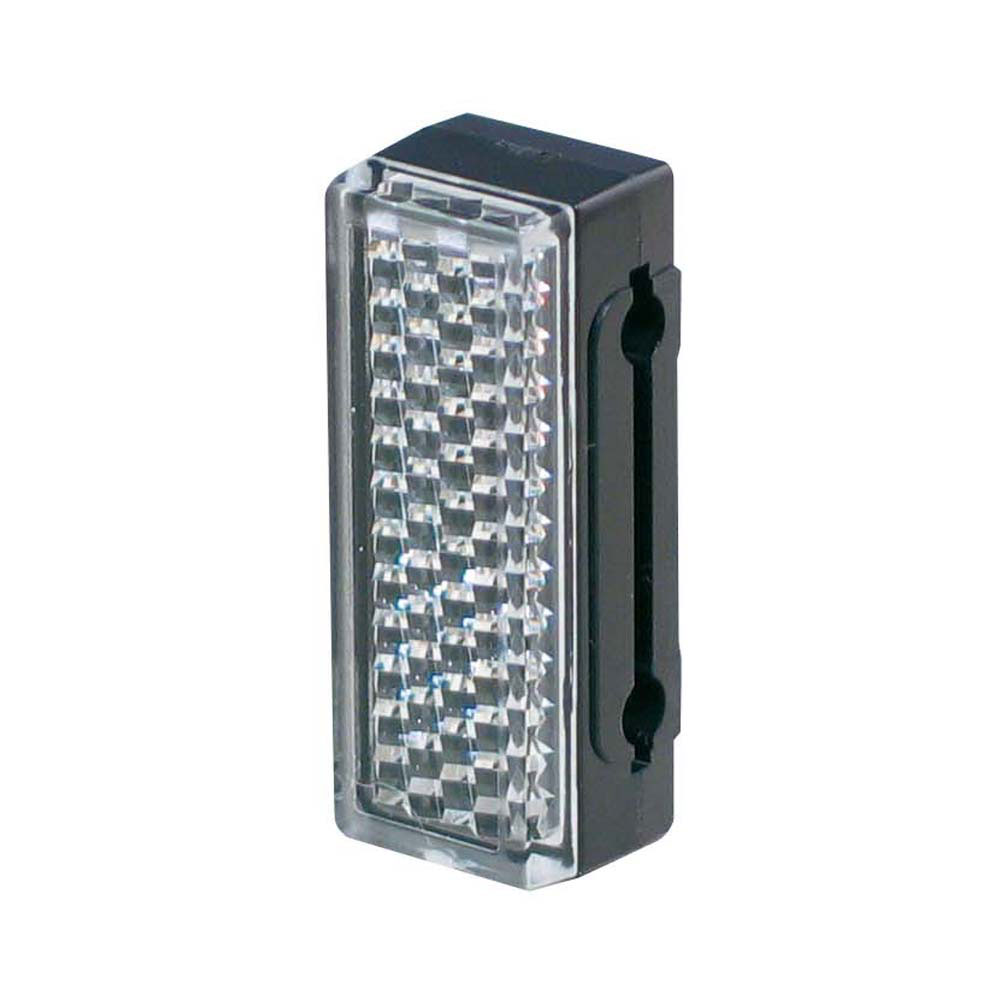

	ReflectorK-72	Effective reflecting surface Approx. 29X8mm Protective structure IP67 Mounting mountint bracket provided, sedured with M3 screws Materials Mirror : acrylic, Base : heat resistant ABS Detecting distance LD-MX5R : 0 - 3.5m LD-MX5R-C1 : 0 - 1.5m

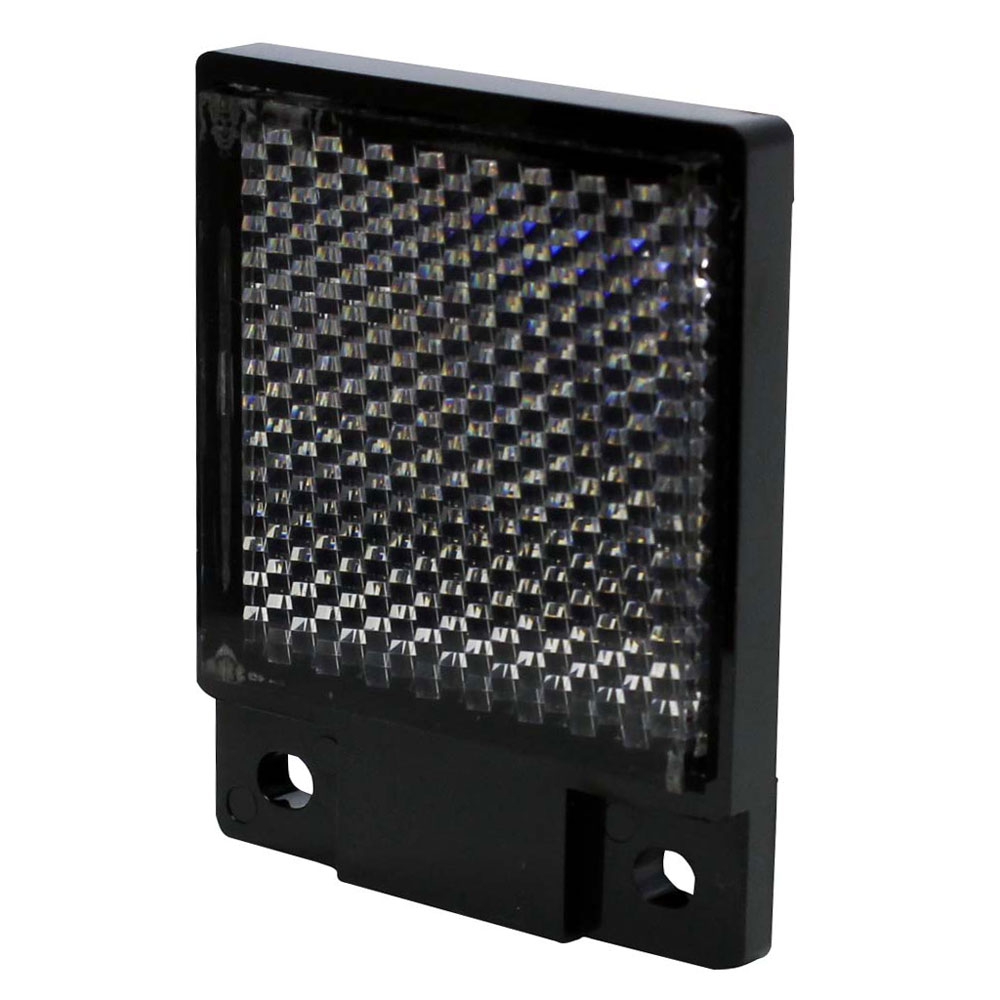

	ReflectorK-MT4	Description Reflector Effective reflecting surface 35X35ｍｍ Detecting distance LD-M10R : 1 - 7m

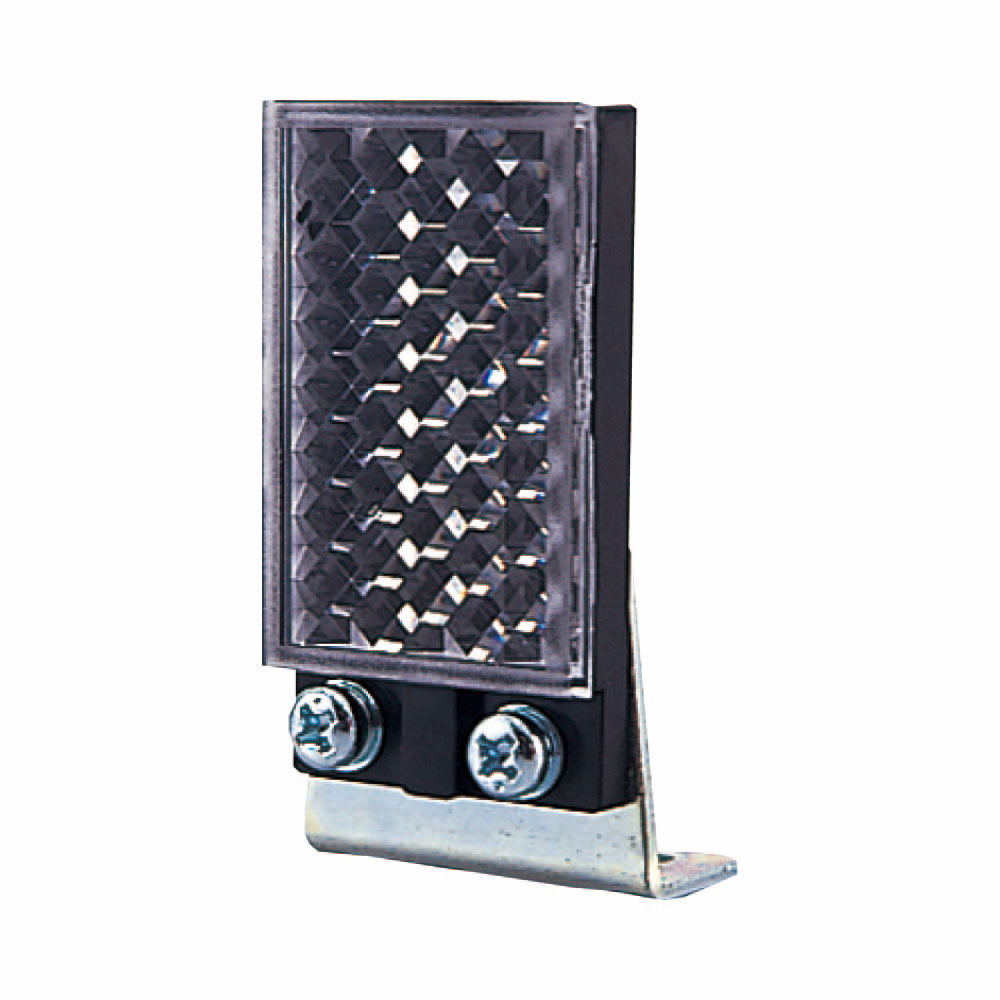

	ReflectorK-71	Effective reflecting surface Approx. 30X18mm Protective structure IP67 Mounting sedured with M3 screws (alternatively adhesive may be used) Materials Mirror : acrylic, Base : heat resistant ABS Accessories Screw : 2, Nut : 2 Dimensions 43X23mm Detectjing object Opaque object of dia. 40mm Detecting distance 0.1 - 2m Detecting distance LD-MX5R : 0 - 4m LD-MX5R-C1 : 0.3 - 1.2m
	ReflectorK-7	Dimensions 60X40mm Application model Applicable to polarized retroreflective type Effective reflecting surface Approx. 56X36mm Protective structure IP67 Mounting sedured with M3 screws Materials Mirror : acrylic, Base : heat resistant ABS Dimensions 60X40mm Detectjing object Opaque object of dia. 75mm Detecting distance LD-MX10R：3 to15m
