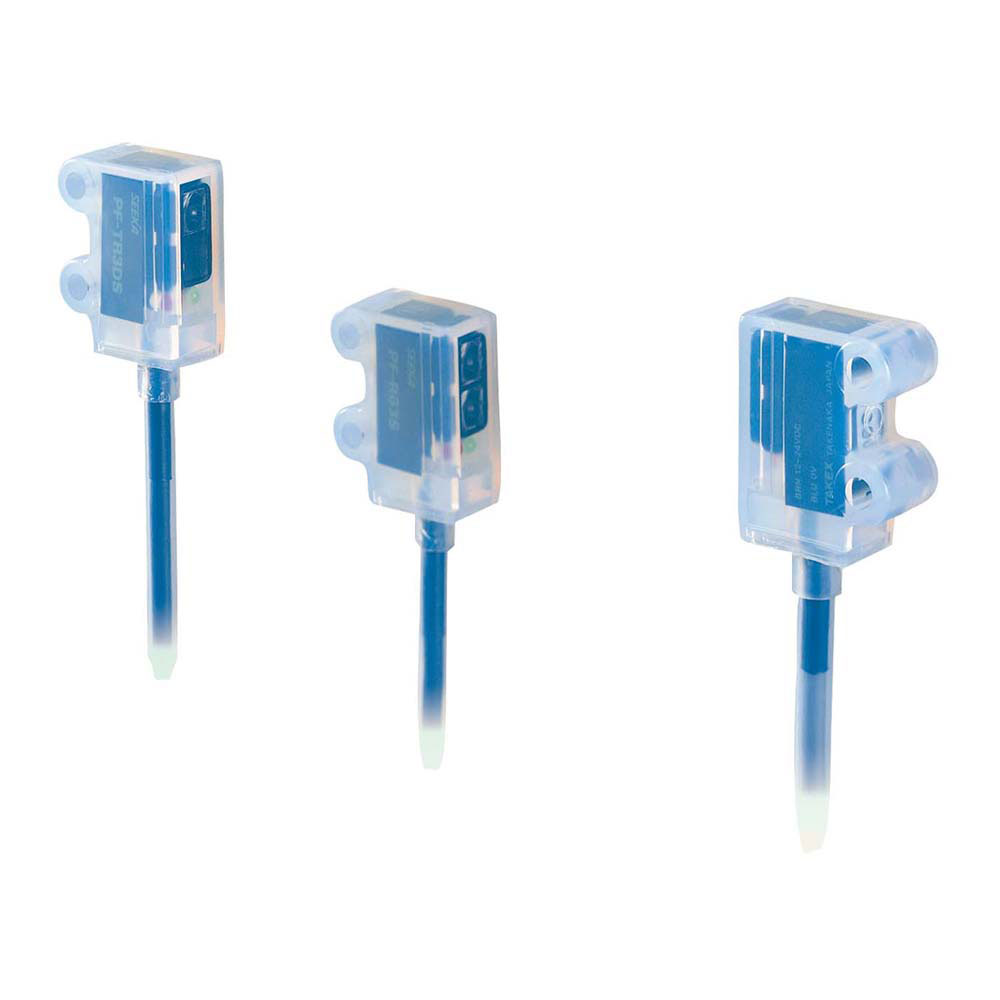

PF Series
Oil resistant and Chemical resistant Embedded Amplifier Photo Sensors
- Embedded amplifier sensor with body and cable covered with fluoroplastic (ＰＦＡ) housing and tube for enhanced resistance to oils and chemicals.
- Excellent resistance to oils and chemicals, capable of immersed use.
- Easy-to-use embedded amplifier sensor
- Long detecting distance (through beam: 3 m; diffuse reflective: 300mm)
- High-speed response of 0.35 ms
- Optional external sensitivity adjustment employed
- Standard・Official Approval
-
PF Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
PF-T3DS
|
12-24VDC | Through beam | 3000 | NPN | Dark on | Infrared LED | IP67 | Attached cable | ||
|
PF-T3S
|
12-24VDC | Through beam | 3000 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
|
PF-R03DS
|
12-24VDC | Diffuse reflective | 300 | NPN | Dark on | Infrared LED | IP67 | Attached cable | ||
|
PF-R03S
|
12-24VDC | Diffuse reflective | 300 | NPN | Light on | Infrared LED | IP67 | Attached cable |
Feature
Chemical resistance of PFA (fluoroplastic)
| Substance | PFA |
|---|---|
| A.B.C. Crude Petroleum | ○ |
| Aniline | ○ |
| Acrylonitrile | ○ |
| Asphalt | ○ |
| Acetone | ○ |
| Alcohol | ○ |
| Ammonia | ○ |
| Isooctane | ○ |
| Isobutyl alcohol | ○ |
| Isobutyl methyl ketone | ○ |
| Ethanol | ○ |
| Ether | ○ |
| Ethylene Glycol | ○ |
| Enamel Paint | ○ |
| Ammonium Chloride | ○ |
| Calcium Chloride | ○ |
| Sodium Chloride | ○ |
| Barium Chloride | ○ |
| Chlorine | ○ |
| Gasoline | ○ |
| Glass material | ○ |
| Dilute Hydrochloric Acid | ○ |
| Dilute Caustic Soda | ○ |
| Dilute Acetic Acid | ○ |
| Dilute Nitric Acid | ○ |
| Dilute Sulfate Acid | ○ |
| Citric Acid | ○ |
| Glycerin(e) | ○ |
| Cresol | ○ |
| Chloroform | ○ |
| Light oil (Gas oil) | ○ |
| Substance | PFA |
|---|---|
| Mineral oil | ○ |
| Ethylene Trichloride | ○ |
| Soda Dichromate | ○ |
| Barium Nitrate | ○ |
| Silicon oil | ○ |
| Vegetable oil | ○ |
| Thinner | ○ |
| Barium Hydroxide | ○ |
| Phenol | ○ |
| Turbine oil | ○ |
| Soda Carbonate | ○ |
| Turpentine oil | ○ |
| Natural Volatile Oils | ○ |
| Kerosene | ○ |
| Trichloroethane | ○ |
| Trichloroethylene | ○ |
| Toluene | ○ |
| Naphtha | ○ |
| Lactic Acid | ○ |
| Nitrobenzene | ○ |
| Fluorine | × |
| Ferrosilicon | ○ |
| Freon 11 | ○ |
| Propylene glycol | ○ |
| Propyl Alcohol | ○ |
| Benzene | ○ |
| Methanol | ○ |
| Methyl Violet | ○ |
| Water | ○ |
| Carbon Tetrachloride | ○ |
| Ammonium Sulfate | ○ |
○ : applicable × : inapplicable
Dimension

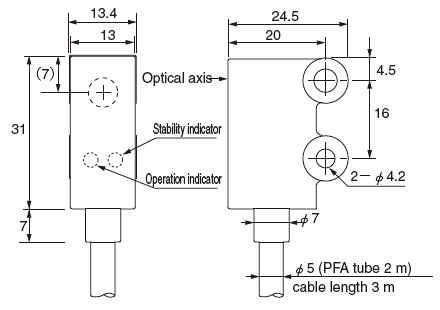

PF-T3DS

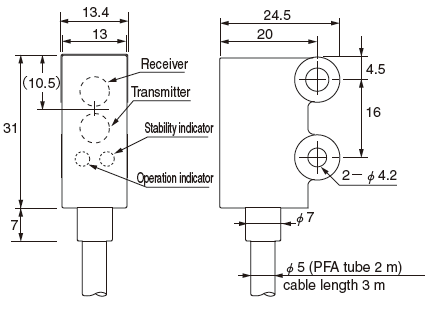

PF-R03S
Circuit
- The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.

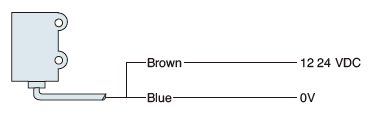

Through beam type transmitter

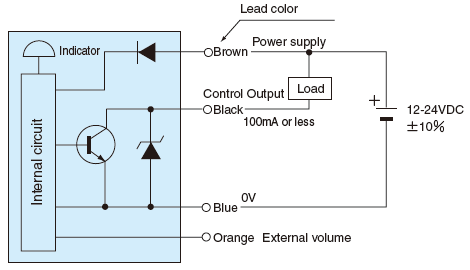

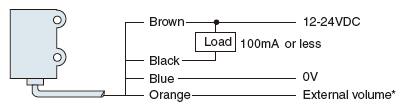

Through beam type receiver and diffuse reflective type
*Cut this lead off when not using the volume unit (model PF-V2) to leave it open and prevent it from touching other leads.
Semiconductor
Detection of wafer in cleaning tank
PFA sensor installed inside tank.
Automobile
Detection of parts on conveyor
Highly chemical-resistant PFA sensor used for detecting parts in anticorrosive spraying process.
Packaging/Food/Drug
Detection in chemical atmosphere
Food material in an atmosphere of alcohol can be detected with sensor in PFA case with high environmental resistance.
Option

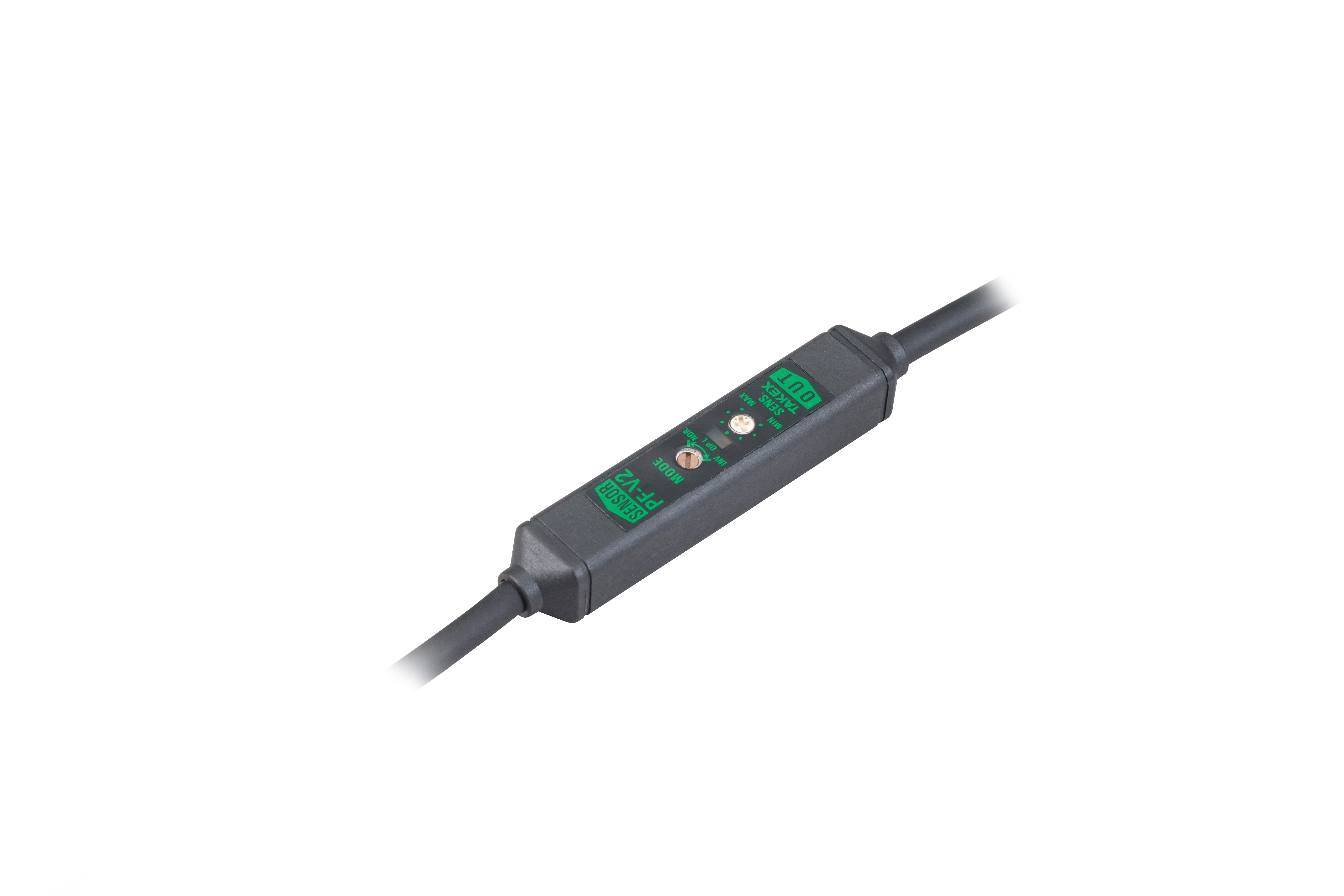

Using In-line Volume Unit for PFA Sensor
| PF-V2
|
|
||||||||||||||||
| PF-V2PN
|
|
