NA Series
Full Open Terminal Board AC/DC Power Supply Photo Sensors

NA Series
  • Fully open terminal block for easy wiring
  • Compatible with a broad range of power supply voltages
    • Polarized reflector for stable detection of mirrorlike objects
    • Red LED for easy alignment
    • Improved resistance to noise with original photo IC
Standard・Official Approval
  • CE Mark

NA Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
NA-T20R
仕様を見る 		AC/DC24 to 240V Through beam 20000.00 Relay Dark on
Light on 		Red LED IP66
NA-T20RF
仕様を見る 		AC/DC24 to 240V Through beam 20000.00 Relay Dark on
Light on 		Red LED IP66
NA-T20RA
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on
Light on 		Red LED IP66
NA-T20RB
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on
Light on 		Red LED IP66
NA-T20RFA
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on
Light on 		Red LED IP66
NA-T20RFB
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on
Light on 		Red LED IP66
NA-T30
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Dark on
Light on 		Infrared LED IP66
NA-T30F
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Dark on
Light on 		Infrared LED IP66
NA-M7R
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 7000.00 Relay Dark on
Light on 		Red LED IP66
NA-M7RF
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 7000.00 Relay Dark on
Light on 		Red LED IP66
NA-R10
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Dark on
Light on 		Infrared LED IP66
NA-R10F
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Dark on
Light on 		Infrared LED IP66

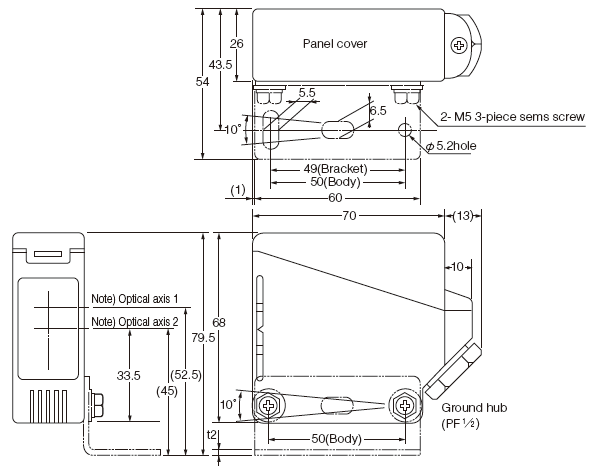

Dimension

Mounting bracket (accessory) attached

  • Note) Optical axis 1: through beam type / Optical axis 2: diffuse reflective type, Polarized retroreflective type
  • The tightening torque for the sensor body and mounting bracket should be 0.8 N m max.

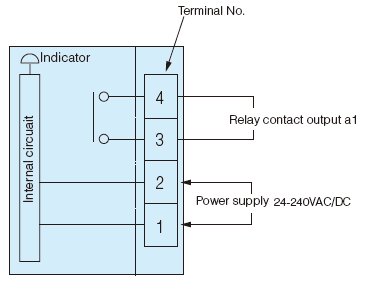

Circuit

(Note) Transmitter of the through beam type only has power supply lines.

Automatic assembly

Detection of level of material inside hopper

Detection of level of material inside hopper

Automatic assembly

Classifying objects by length

Several sensors are used to identify the length of carton boxes.

Delivery/Transportation

Detection of height of vehicles

High-powered sensor for detecting distances of up to 30 m and alarming excessive height.

Option

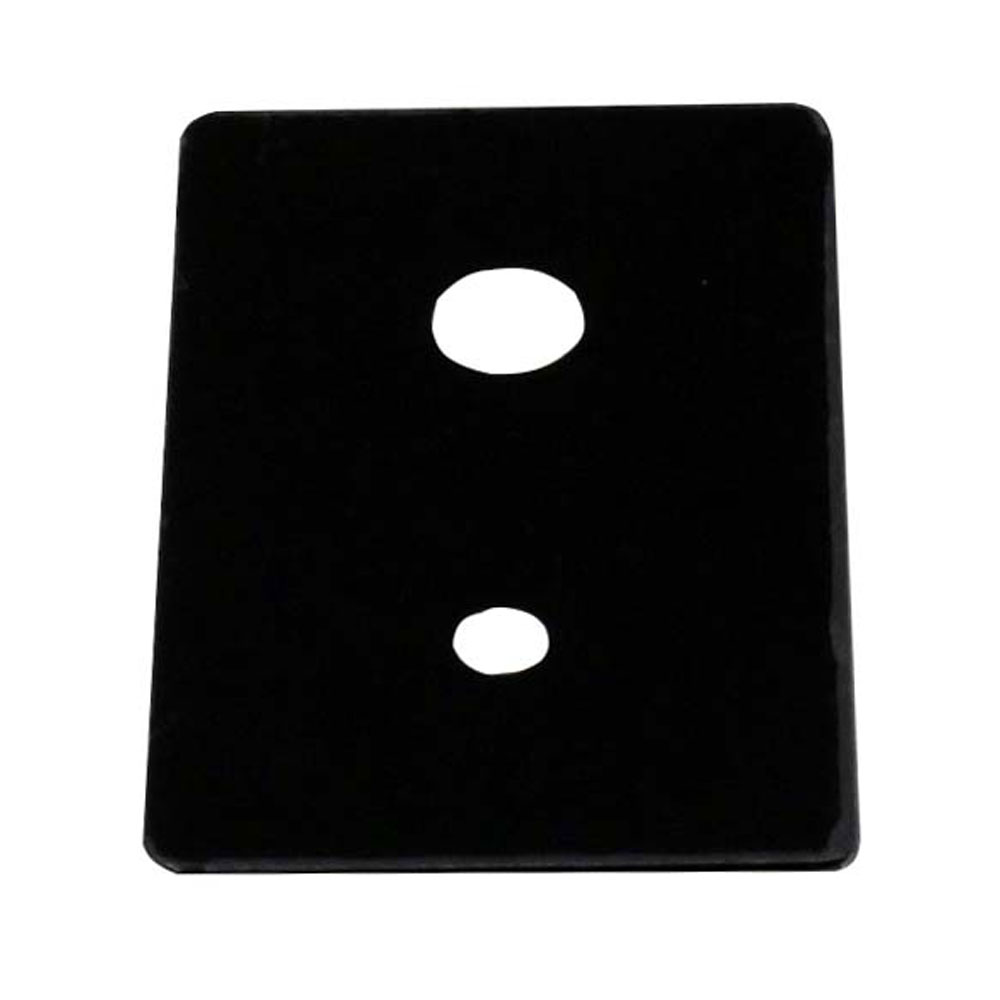

Pinhole sticker

オプション写真

Pinhole stickerAP35
Application model NA-T20R
NA-T20RF
NA-T30
NA-T30F
Detecting distance Detecting distance with stickers attached to both transmitter and receiver of NA-T20R・NA-T20RF
φ3mm : 1m
φ5mm : 3.5m

Reflector

オプション写真

ReflectorK-71

dimLink
Effective reflecting surface Approx. 30X18mm
Protective structure IP67
Mounting sedured with M3 screws (alternatively adhesive may be used)
Materials Mirror : acrylic, Base : heat resistant ABS
Accessories Screw : 2, Nut : 2
Dimensions 43X23mm
Detectjing object Opaque object of dia. 40mm
Detecting distance 0.1 - 2m
Detecting distance 0.03 - 3.5m
Detecting distance 0.5 - 4m
オプション写真

ReflectorS-510G

dimLink
Effective reflecting surface 100X50mm
Description Reflector
Mounting Pasted, adhesive on back side
Detecting distance 0.1 - 4m
Detecting distance 0.5 - 6m

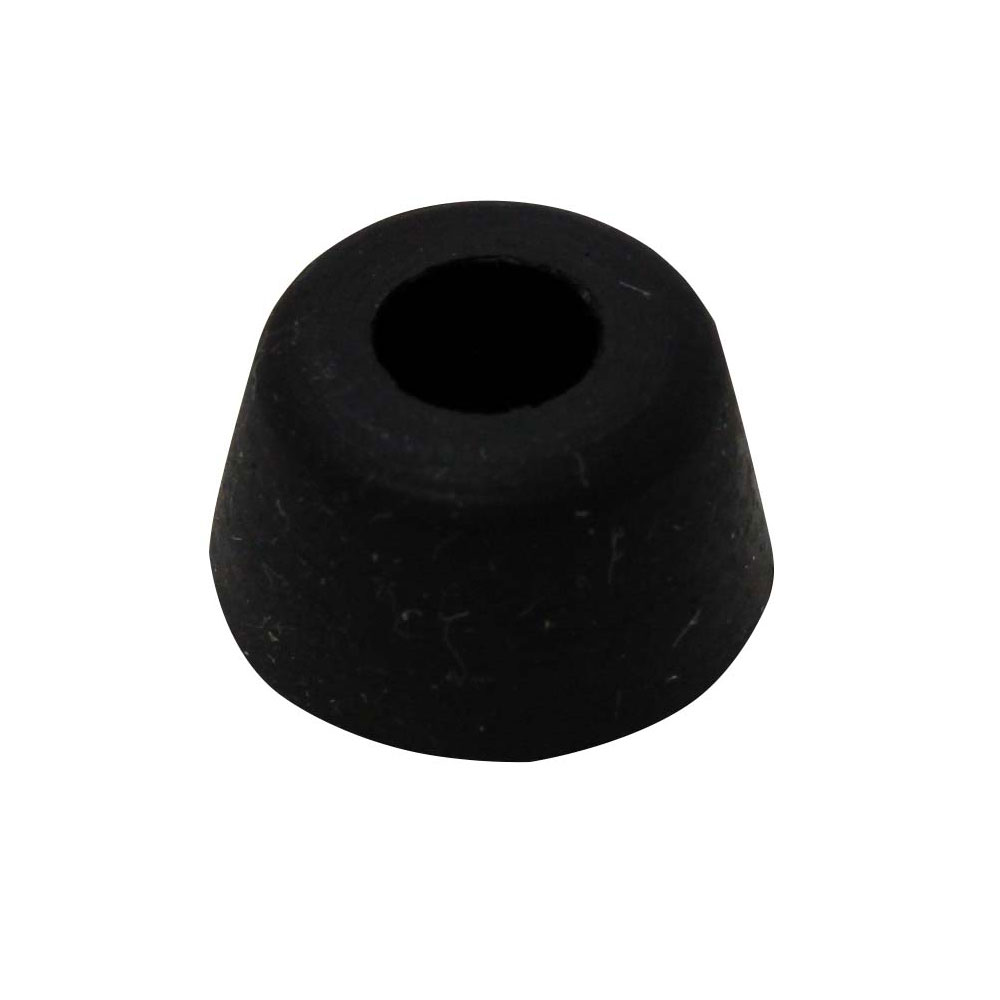

Bushing rubber

オプション写真

Bushing rubberJV7
Description Bushing rubber
Application model All models
Compatible cable diameter 6-8 mm
